9628CS_9629CS_9630CS_9631CS 1.75in Adapter – I-SD00403-Rev01

Contents:	Qty:
1. Floor Plate for 1-3/4" Thick Doors	2
2. 1/8" Thick Shim	4	2. 1.

The 1-3/4" Adapter Kit gives additional clearance for 1-3/4" thick doors.

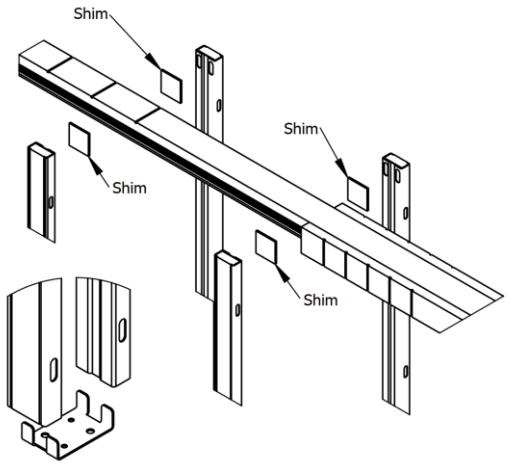

1 Replace Floor Plates

Figure 1

• Discard the Floor Plates for Doors up to 1-3/8" Thick that came with the pocket door kit
• Replace it with the Floor Plates for 1-3/4" Thick Doors included in this kit

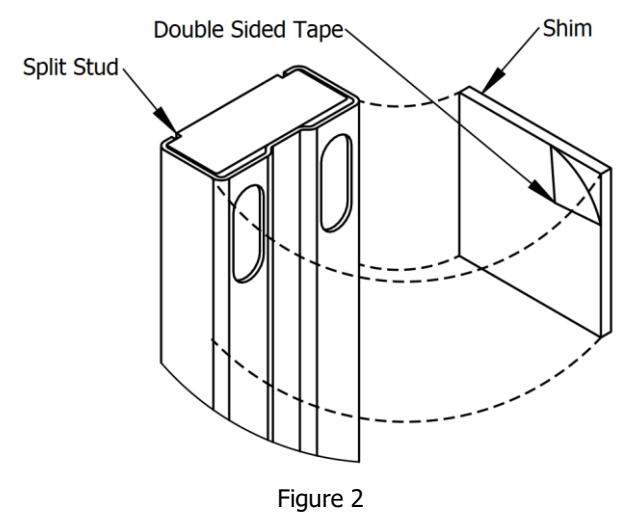

2 Apply Spacers

• Peel the paper off the 1/8" Thick Shim
• Stick it to the top of each split stud covering the slots
• Follow the rest of the installation instructions included with the pocket door kit
