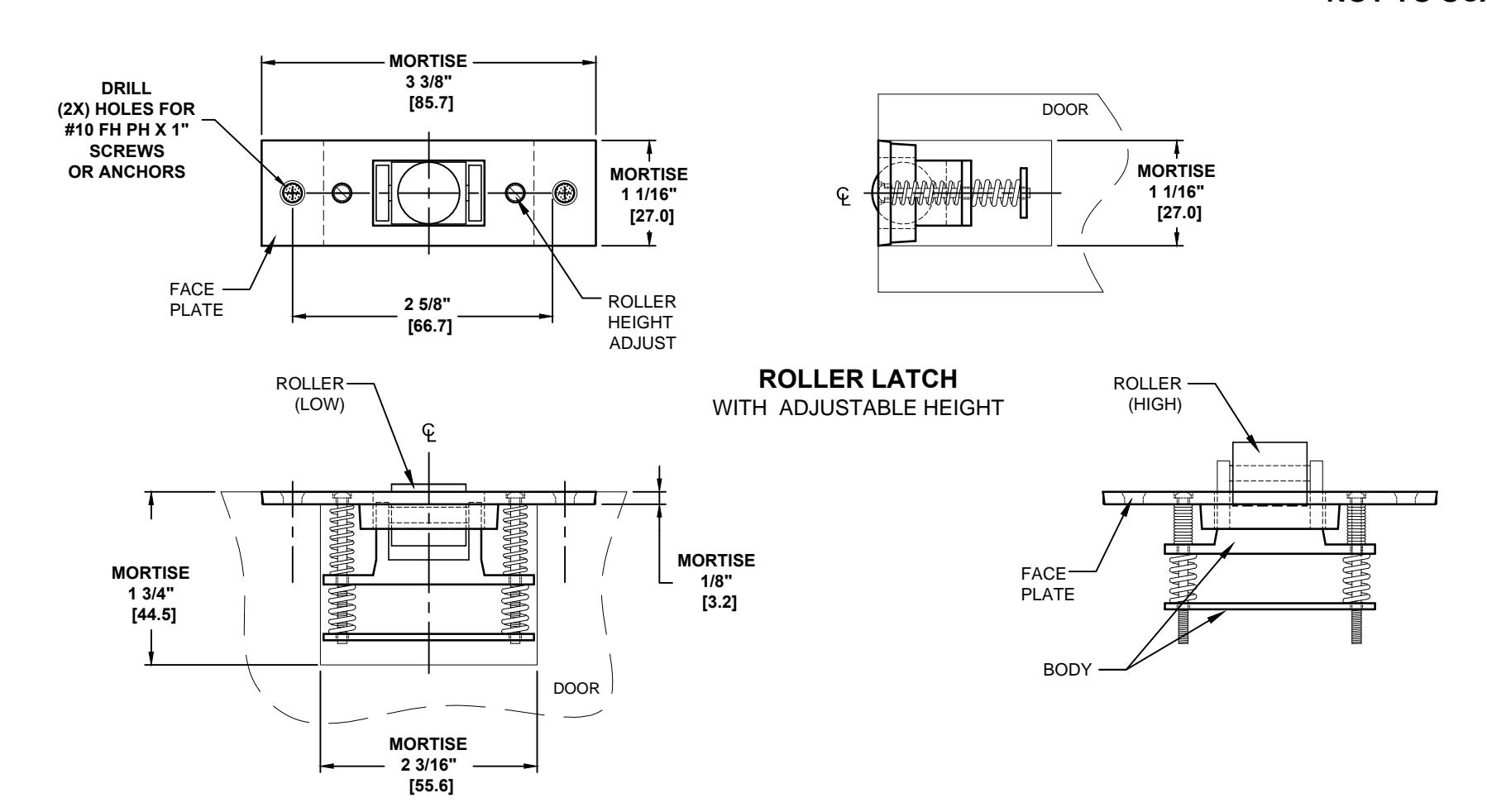

571 MORTISE ADJUSTABLE ROLLER LATCH

FOR METAL AND WOOD DOORS

NOT TO SCALE

TEMPLATE: 939322

REV. 0 04-30-15

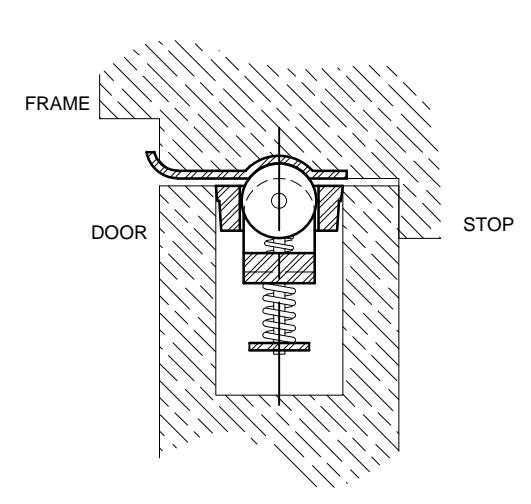

HEAD FRAME MOUNTING (LATCHED)

INSTRUCTIONS:

• 1. MORTISE FOR BODY OF LATCH. PUT LATCH INTO BODY MORTISE TO MARK MORTISE FOR FACE PLATE.
• 2. MORTISE FOR FACE PLATE & INSTALL THE LATCH.

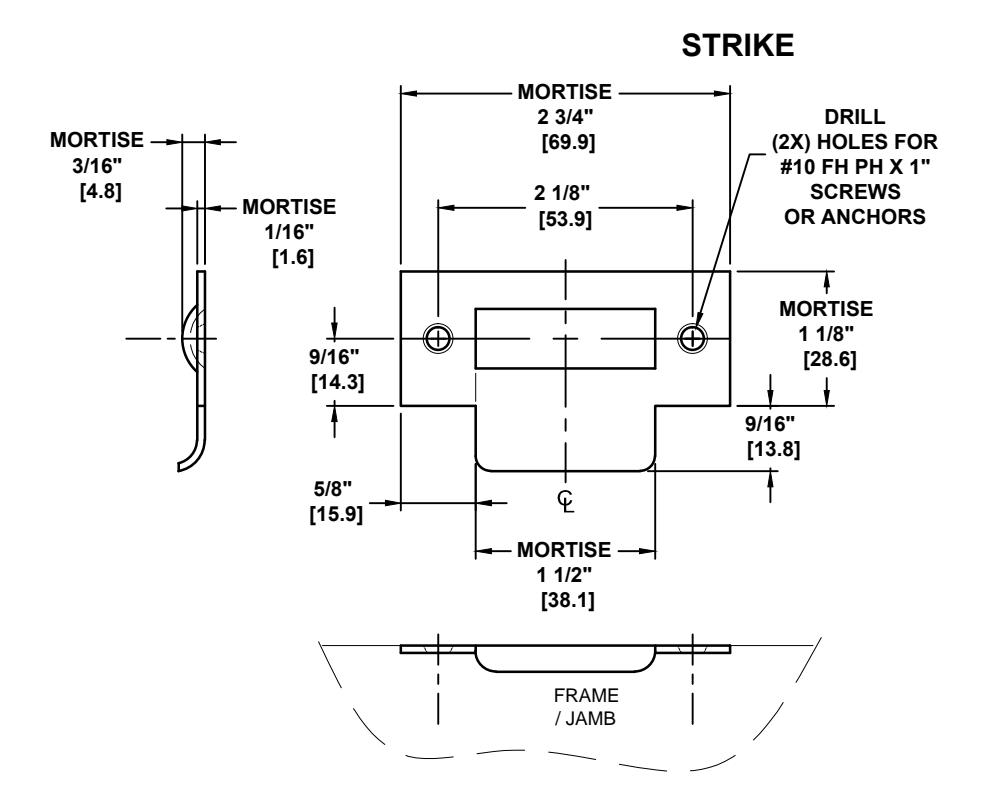

• 3. ALIGN STRIKE WITH LATCH ROLLER. MORTISE & INSTALL STRIKE.
• 4. ADJUST HEIGHT OF ROLLER TO FIT STRIKE.

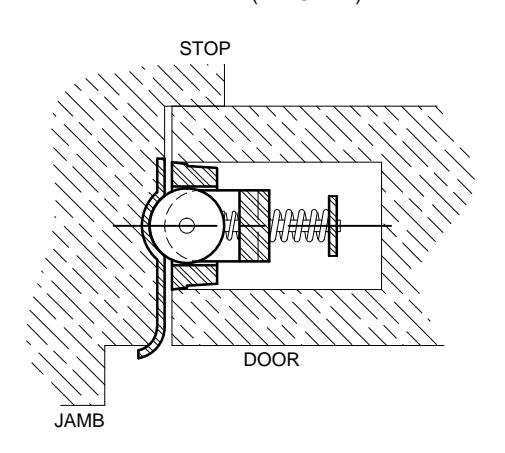

SIDE JAMB MOUNTING (LATCHED)

NOTES:

• 1. DIMENSIONS IN [MM].
• 2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
