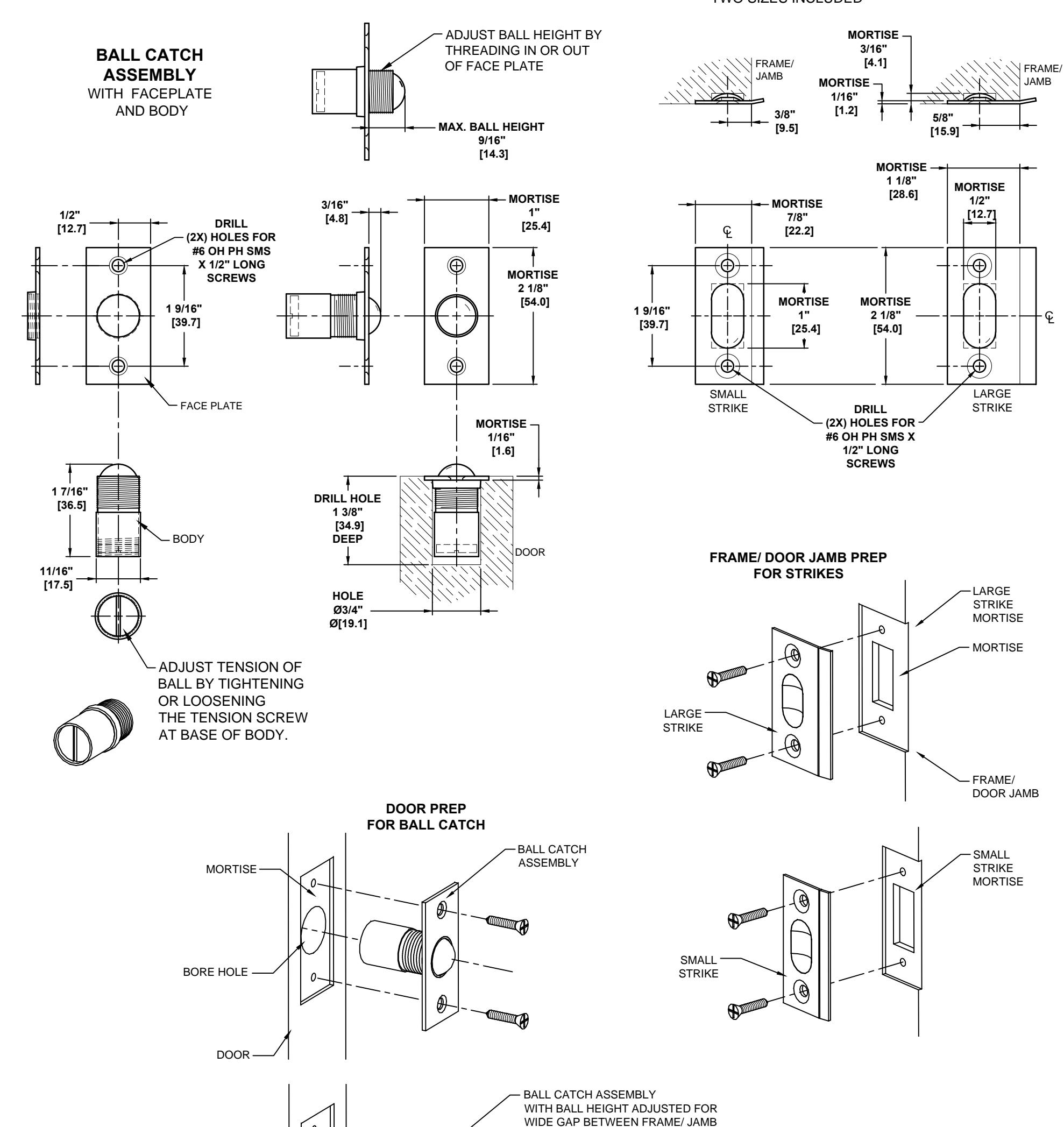

577 ROLLER LATCH

FOR METAL AND WOOD DOORS

TEMPLATE: 939318 REV. 0 03-04-15

NOT TO SCALE

STRIKE TWO SIZES INCLUDED

AND DOOR

0

0

NOTES:

• 1. DIMENSIONS IN INCHES [MM]
• 2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
