906 DOOR VIEWER W/ PRIVACY COVER

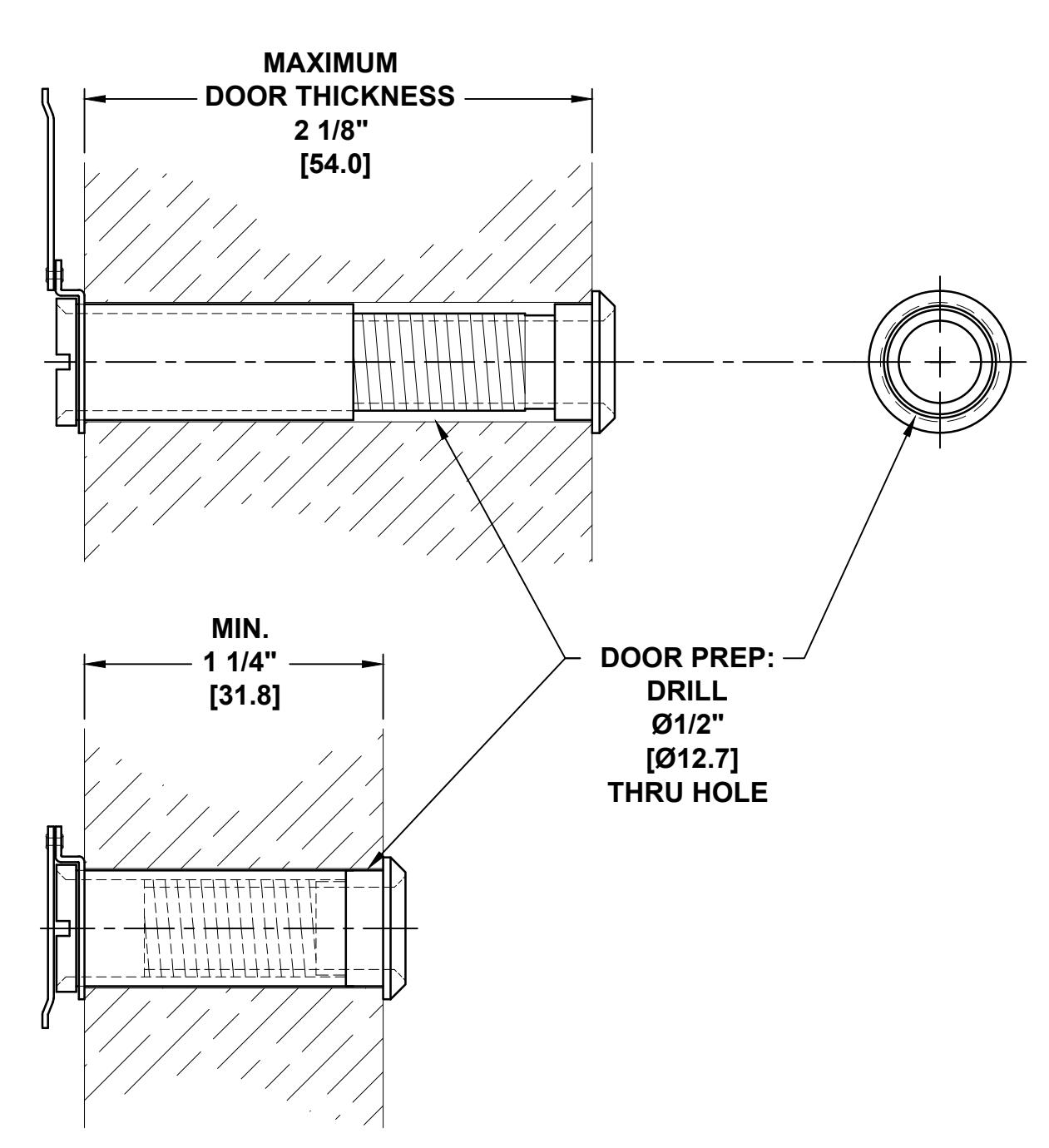

FOR METAL AND WOOD DOORS UL LISTED 160° VIEWING ANGLE

TEMPLATE: 939317 REV. 0 02-09-15

NOT TO SCALE

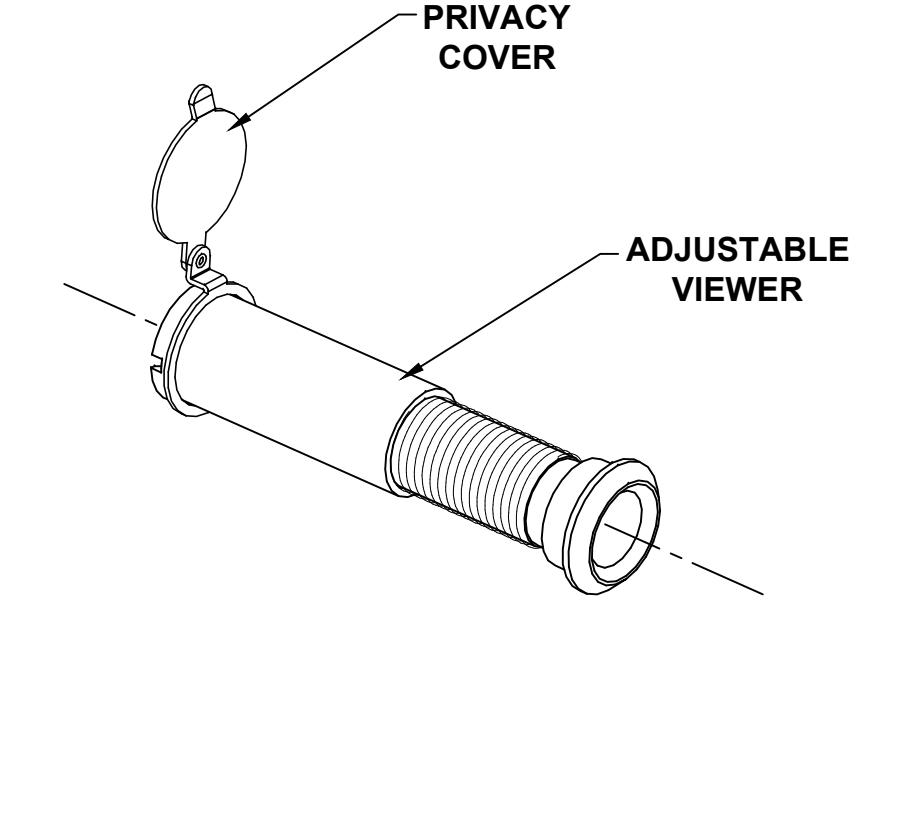

1. USE SLOT ON INSIDE TO TIGHTEN DOOR VIEWER AND COVER.

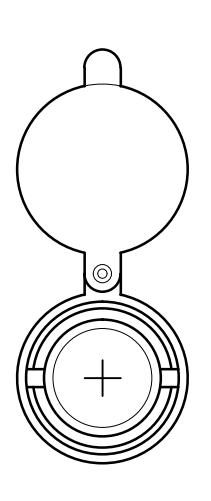

2. TIGHTEN VIEWER WITH COVER ABOVE SO IT FALLS TO CLOSED POSITION ON INSIDE OF DOOR.

1. DIMENSIONS IN INCHES [MM]
2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
