909 DUST PROOF STRIKE

FOR USE WITH MANUAL/ AUTOMATIC/ SURFACE/ FLUSH BOLTS FOR FLOOR OR THRESHOLD MOUNTING

TEMPLATE: 939316 REV. 0 01-20-15

NOT TO SCALE

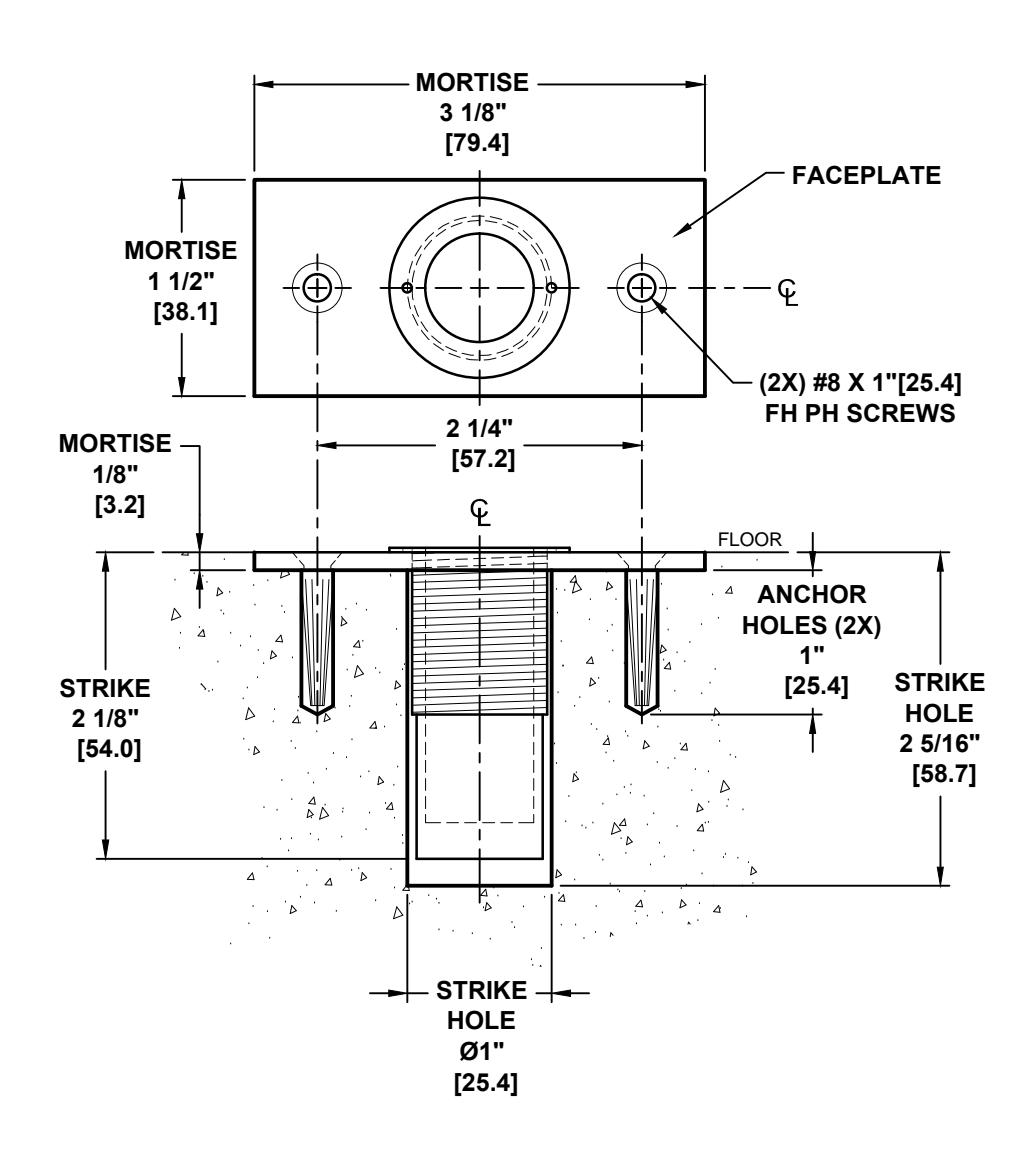

(FIG.1) FLOOR MOUNT STRIKE ASSEMBLY WITH FACEPLATE AND ANCHOR BOLTS

FLOOR MOUNT INSTRUCTIONS (FIG.1):

• 1. USE INSTALLED BOLT TO MARK LOCATION FOR STRIKE. DRILL Ø1"[25.4] X 2-5/16"[58.7] DEEP HOLE INTO FLOOR.
• 3. USE FACEPLATE TO MARK OUTLINE FOR MORTISE. MORTISE 1/8"[3.2] DEEP INTO FLOOR SURFACE.
• 4. USE FACEPLATE TO MARK (2) HOLES FOR ANCHORS. DRILL (2) HOLES FOR ANCHORS.
• 5. INSERT ANCHORS.
• 6. INSTALL STRIKE ASSEMBLY AND SECURE WITH SCREWS.
• 7. USE SPANNER WRENCH TO TIGHTEN STRIKE ASSEMBLY.

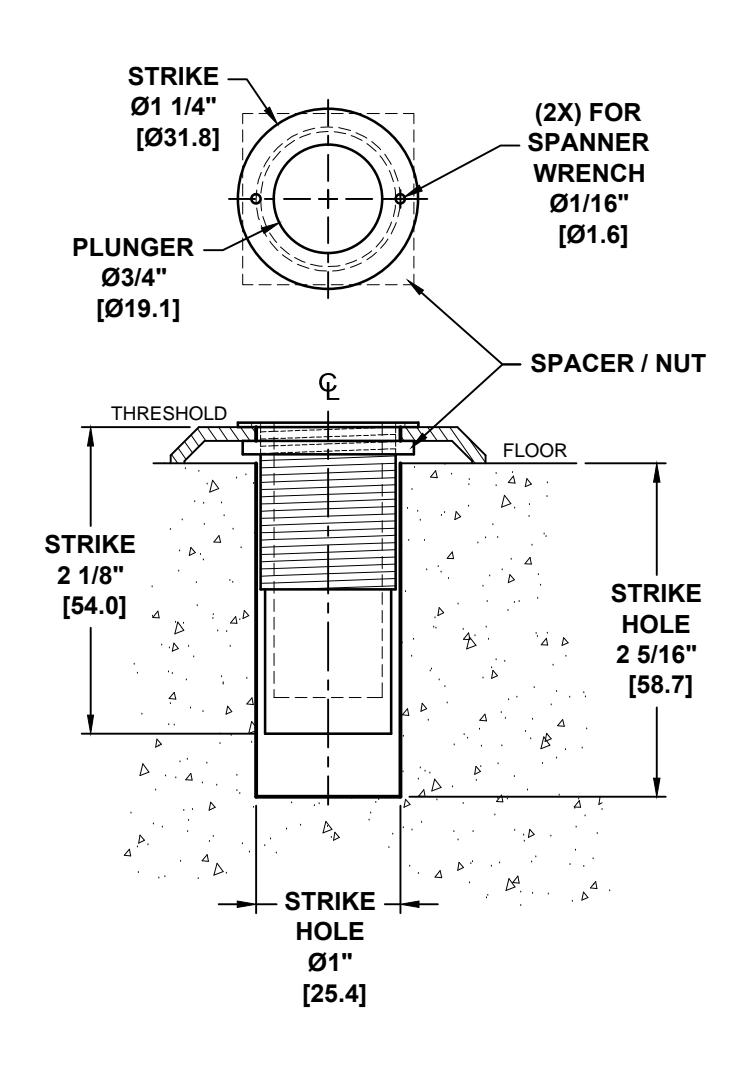

(FIG.2)THRESHOLD MOUNT STRIKE ASSEMBLY WITH SPACER / NUT

THRESHOLD MOUNT INSTRUCTIONS (FIG.2):

• 1. USE INSTALLED BOLT TO MARK STRIKE LOCATION. DRILL HOLE Ø1"[25.4] THROUGH THRESHOLD. DRILL Ø1"[25.4] X 2-5/16"[58.7] DEEP HOLE INTO FLOOR.
• 2. INSERT STRIKE INTO THRESHOLD HOLE AND TIGHTEN WITH SPACER / NUT.
• 3. INSTALL THRESHOLD WITH STRIKE ASSEMBLY.
• 4. USE SPANNER WRENCH TO TIGHTEN STRIKE ASSEMBLY.

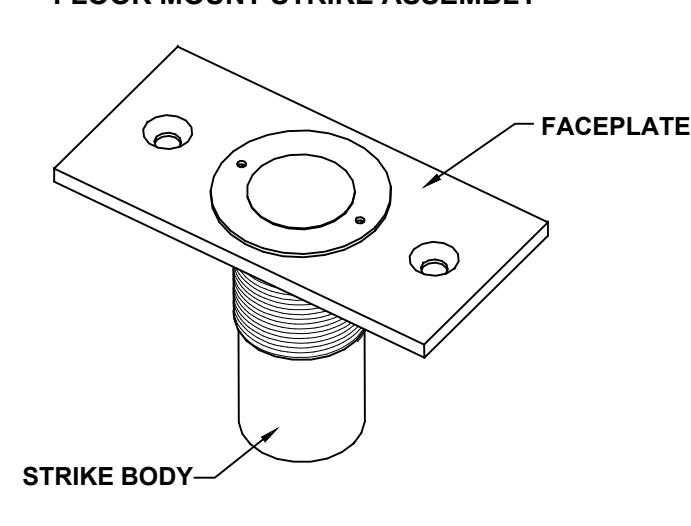

FLOOR MOUNT STRIKE ASSEMBLY

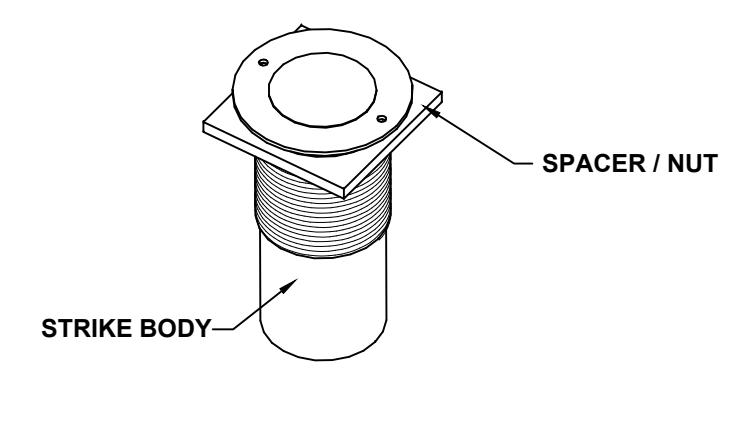

THRESHOLD MOUNT STRIKE ASSEMBLY

NOTES:

• 1. FACEPLATE MAY NEED TO BE THREADED ONTO STRIKE BODY FOR FLOOR MOUNT.
• 2. DIMENSIONS IN INCHES [MM]
• 3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
