462 CONCEALED MOUNT SLIDE BOLT

FOR STEEL OR WOOD DOORS

12-31-14 NOT TO SCALE

TEMPLATE: 939315

REV. 0

SLIDE BOLT SHOWN SIDE VIEW ONLY

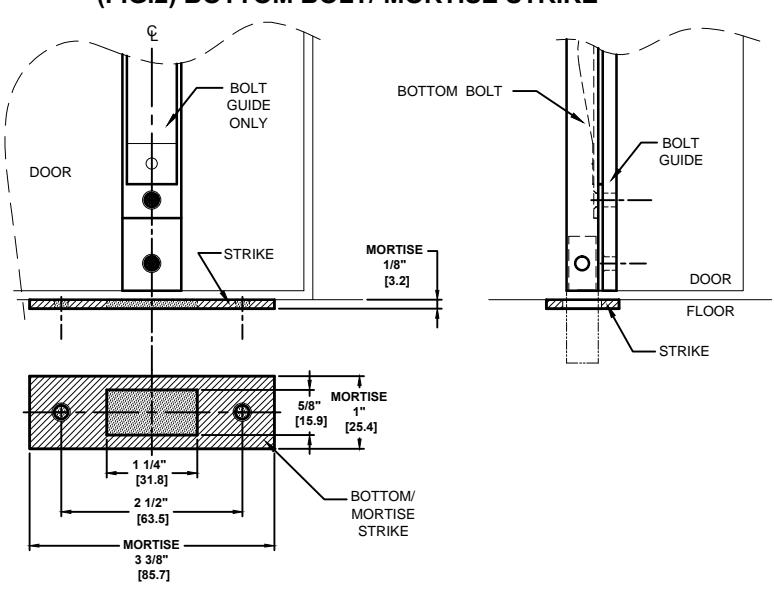

(FIG.2) BOTTOM BOLT/ MORTISE STRIKE

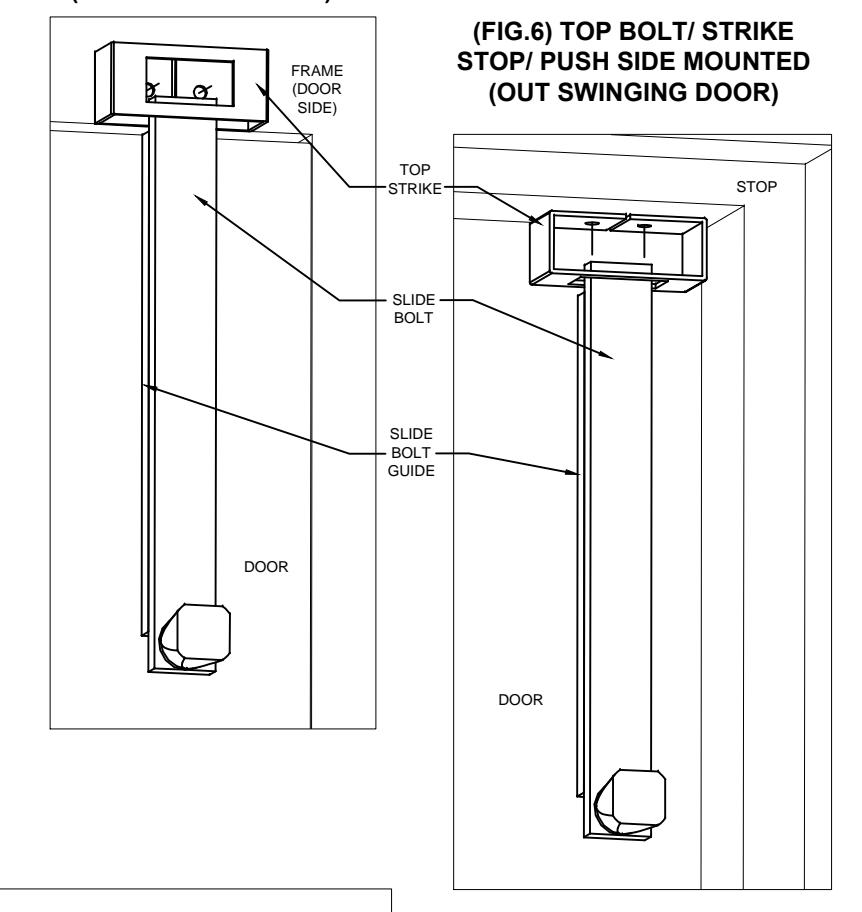

(FIG.5) TOP BOLT/ STRIKE HINGE/ PULL SIDE MOUNTED (IN SWINGING DOOR)

DRILL BOLT GUIDE MOUNTING HOLES FOR

12-24 X 1" FHPHMS, (3) SCREWS INCLUDED

DRILL STRIKE MOUNTING HOLES FOR 12-24 X 1" FPPHMS, (2) SCREWS INCLUDED

#12 X 1-1/4" FHPHMS, (3) SCREWS INCLUDED

#12 X 1-1/4" FHPHMS, (2) SCREWS INCLUDED

INSTRUCTIONS:

• 1. DETERMINE SIDE OF DOOR TO WHICH BOLTS ARE TO BE APPLIED.
• 2. REMOVE SLIDE BOLT FROM SLIDE BOLT GUIDE ASSEMBLY.

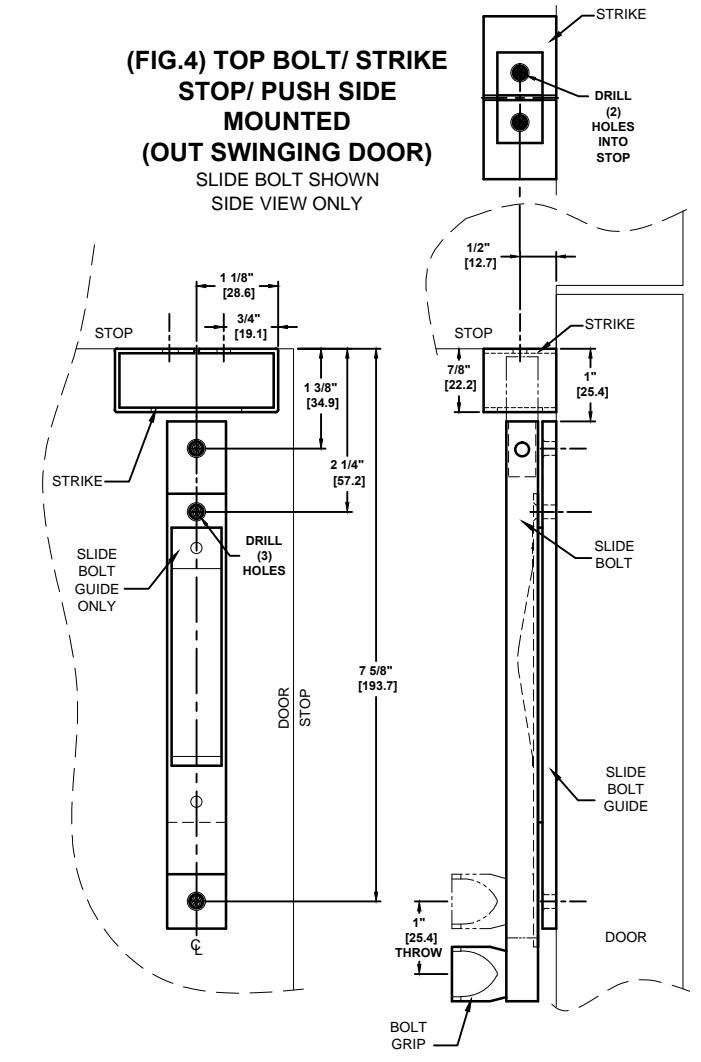

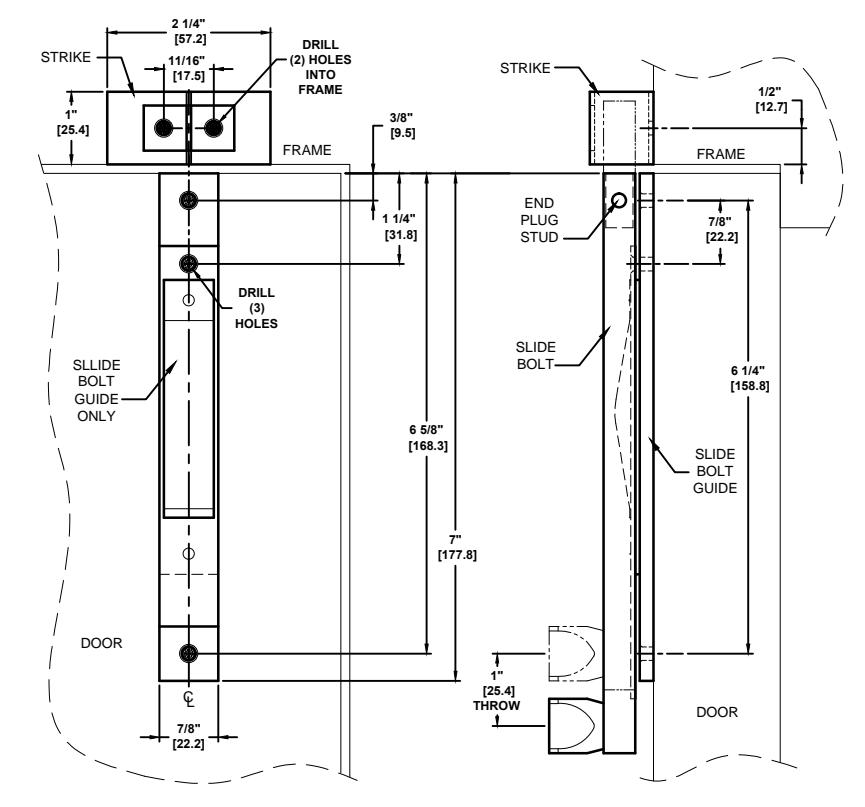

• 3. DRILL MOUNTING HOLES IN DOOR FOR THE SLIDE BOLT GUIDES. SEE (FIG.1) & (FIG.4) FOR TOP BOLT. SEE (FIG.2) FOR BOTTOM BOLT.
• ATTACH SLIDE BOLT GUIDE TO DOOR AND REPLACE SLIDE BOLT ONTO THE BOLT GUIDE..

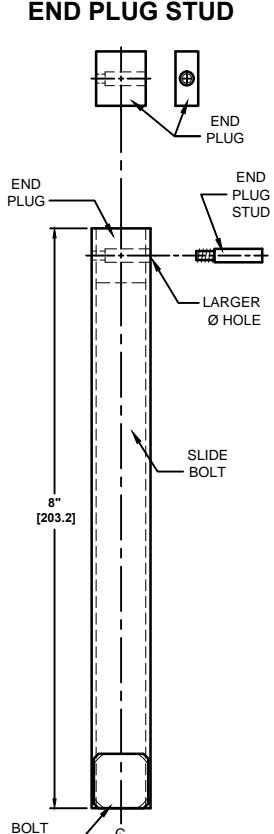

• 5. INSTALL THE END PLUG AT FRAME/ STOP END OF SLIDE BOLT. SEE (FIG.3). ALIGN THE LARGER DIAMETER HOLE IN THE END PLUG WITH THE LARGER DIAMETER HOLE IN THE SLIDE BOLT. USE A SMALL TIP PHILLIPS HEAD SCREW DRIVER TO INSTALL & TIGHTEN THE END PLUG STUD.
• 6. SELECT APPROPRIATE TOP OR BOTTOM STRIKE. ALIGN EACH STRIKE WITH SLIDE BOLT AND ATTACH WITH REMAINING SCREWS.

NOTES:

• 1. DIMENSIONS IN INCHES [MM]
• 2. HOLLOW METAL DOOR AND FRAME SHOULD BE PROPERLY REINFORCED WITH A 3/16" [4.8] MINIMUM THICKNESS PLATE.
• 3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
