460/ 461 SURFACE BOLTS (8" & 12")

FOR STEEL OR WOOD DOORS

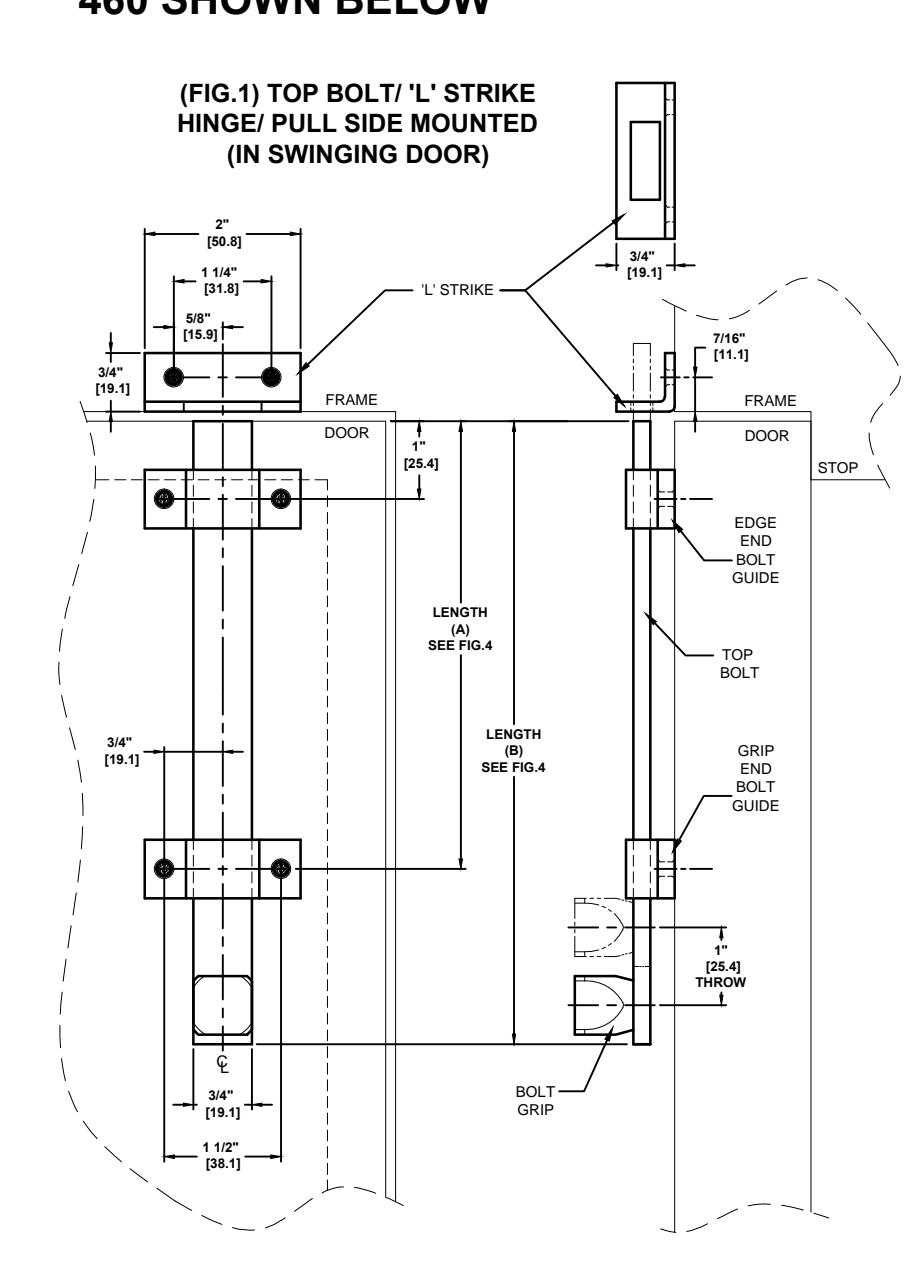

460 SHOWN BELOW

NOT TO SCALE

12-10-14

NOTE: DRILL ALL MOUNTING HOLES FOR #8 X 1-1/4" FL HD SMS SCREWS (8) SCREWS INCLUDED

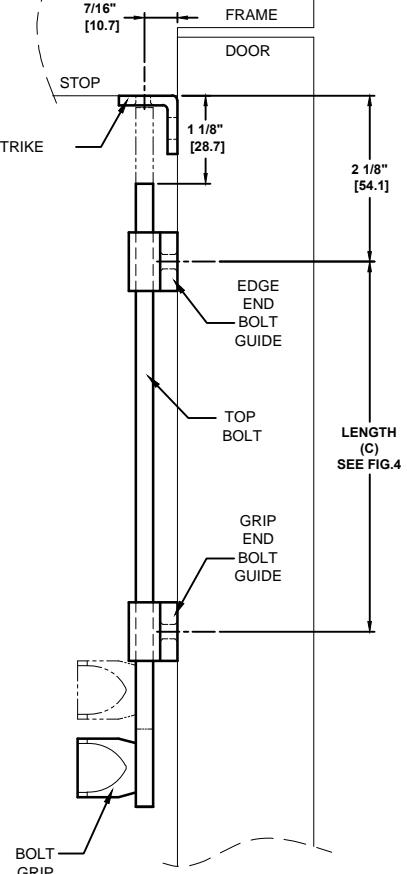

(FIG.3) TOP BOLT/ 'L' STRIKE STOP/ PUSH SIDE MOUNTED (OUT SWINGING DOOR)

TEMPLATE: 939314

REV. 0

(FIG.4) LENGTHS/ DIMENSIONS

MODEL#	(A)	(B)	(C)
460	5-3/4"	8"	4-3/4"
	[146.1]	[203.2]	[120.7]
461	9-3/4""	12"	8-3/4"
	[247.7]	[304.8]	[222.3]

• (A) = TOP/BOTTOM EDGE OF DOOR TO CENTER OF GRIP END BOLT GUIDE (HINGE SIDE MOUNTED AND BOTTOM BOLT. SEE FIG.3 FOR STOP SIDE MOUNTED TOP BOLT)
• (B) = OVERALL BOLT LENGTH (C) = CENTER OF
• EDGE END BOLT GUIDE TO CENTER OF GRIP END BOLT GUIDE

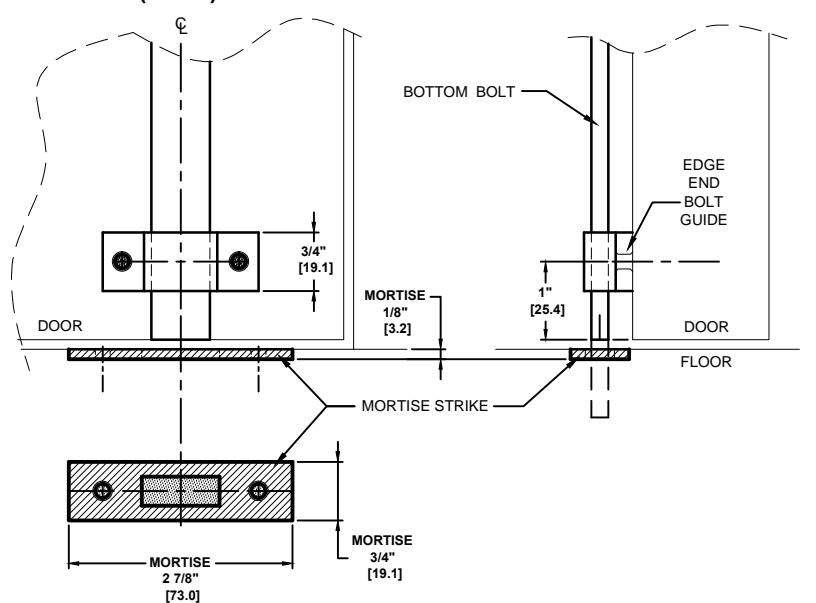

(FIG.2) BOTTOM BOLT/ MORTISE STRIKE

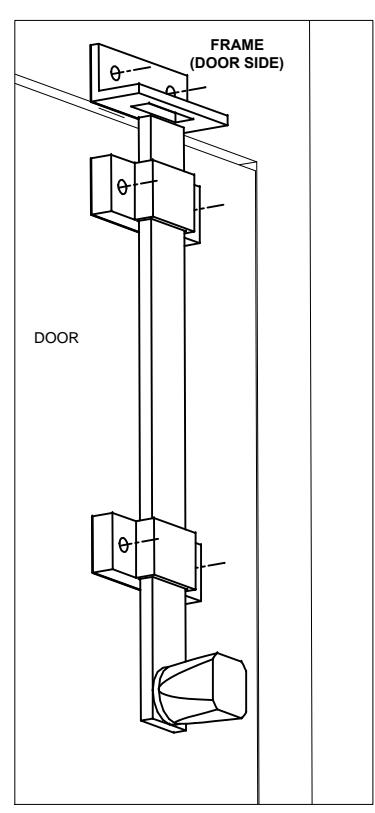

(FIG.5) TOP BOLT/ 'L' STRIKE HINGE/ PULL SIDE MOUNTED (IN SWINGING DOOR)

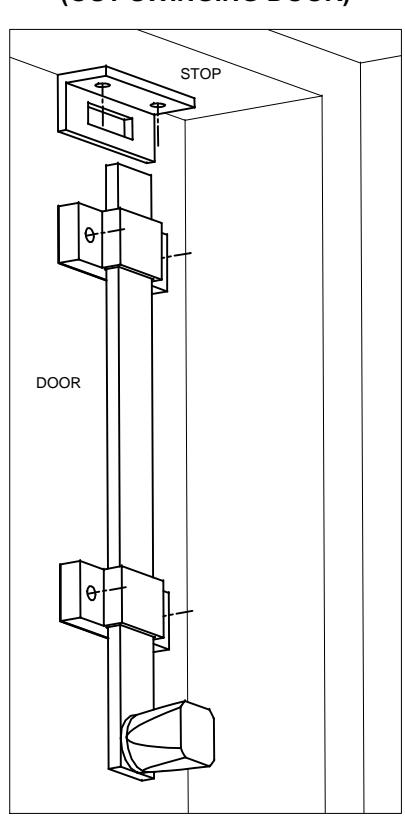

(FIG.6) TOP BOLT/ 'L' STRIKE STOP/ PUSH SIDE MOUNTED (OUT SWINGING DOOR)

INSTRUCTIONS:

• 1. DETERMINE SIDE OF DOOR TO WHICH BOLTS ARE TO BE APPLIED.
• 2. DRILL AND TAP MOUNTING HOLES IN DOOR FOR BOLT GUIDES.
• 3. MOUNT BOLT ASSEMBLY ONTO DOOR.
• 4. SELECT APPROPRIATE TOP OR BOTTOM STRIKE. ALIGN EACH STRIKE WITH BOLT AND ATTACH WITH REMAINING SCREWS.

NOTES:

• 1. DIMENSIONS IN INCHES [MM]
• 2. HOLLOW METAL DOOR AND FRAME SHOULD BE PROPERLY REINFORCED WITH A 3/16" [4.8] MINIMUM THICKNESS PLATE.
• 3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
