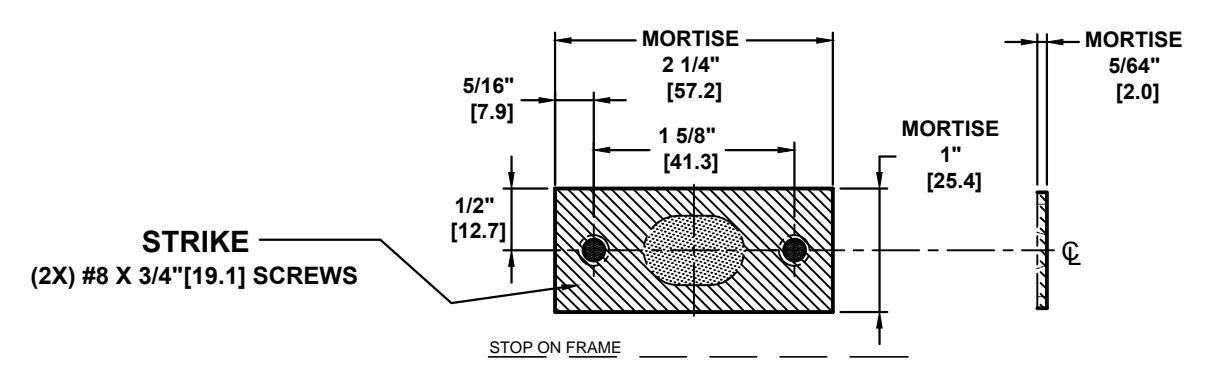

View PDF93270 MANUAL FLUSH BOLT FOR WOOD DOOR APPLICATIONS

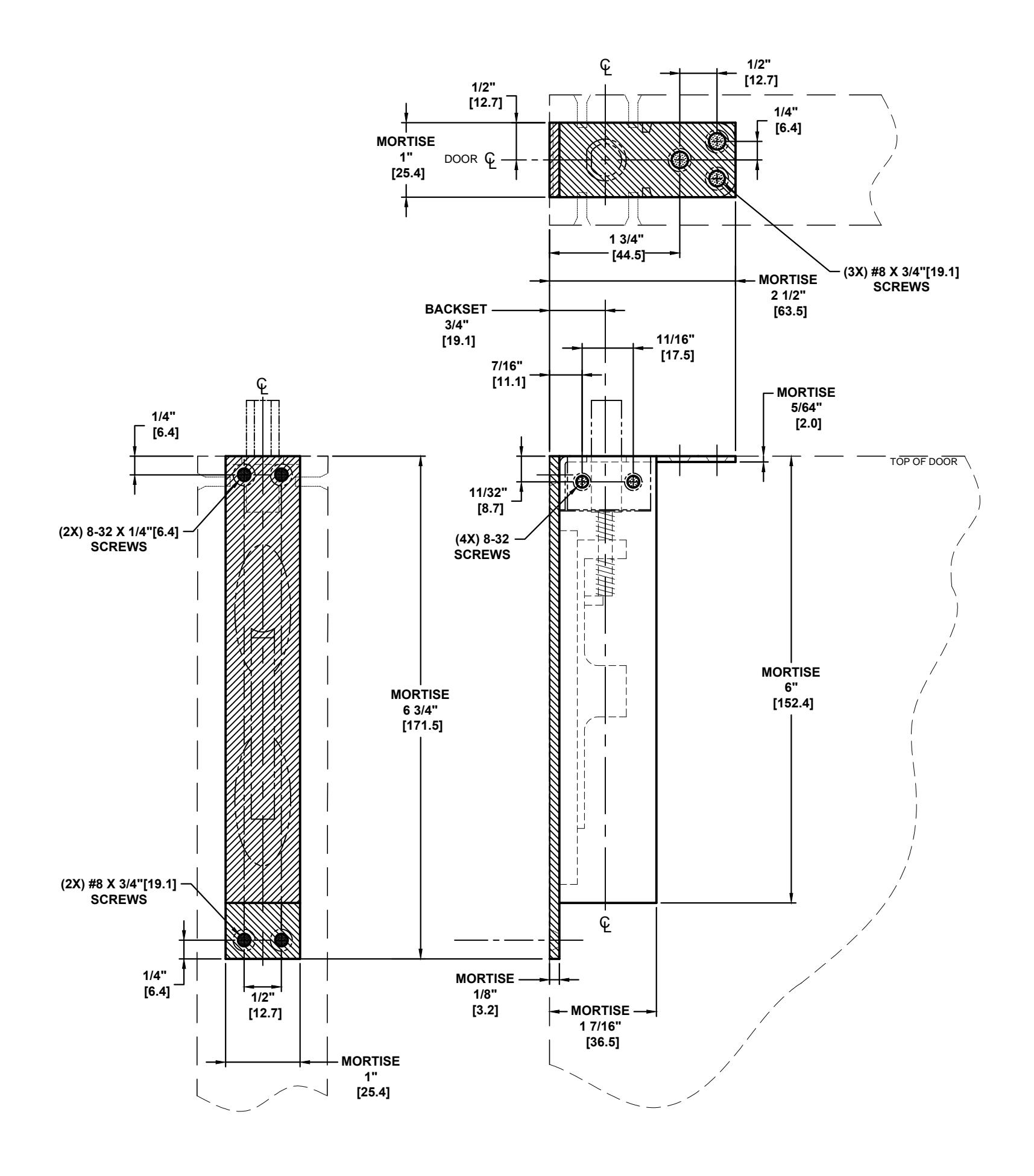

TOP BOLT SHOWN
- NOT TO SCALE -
NOTES:
- 1. DIMENSIONS IN [MM].
- 2. DIMENSIONS USING DEVICE AS TOP BOLT ARE AS SHOWN. FOR USE AS BOTTOM BOLT, INVERT AND MEASURE FROM THE BOTTOM EDGE OF THE DOOR
- 3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
TEMPLATE: 939308
03-11-15
REV. 1
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
