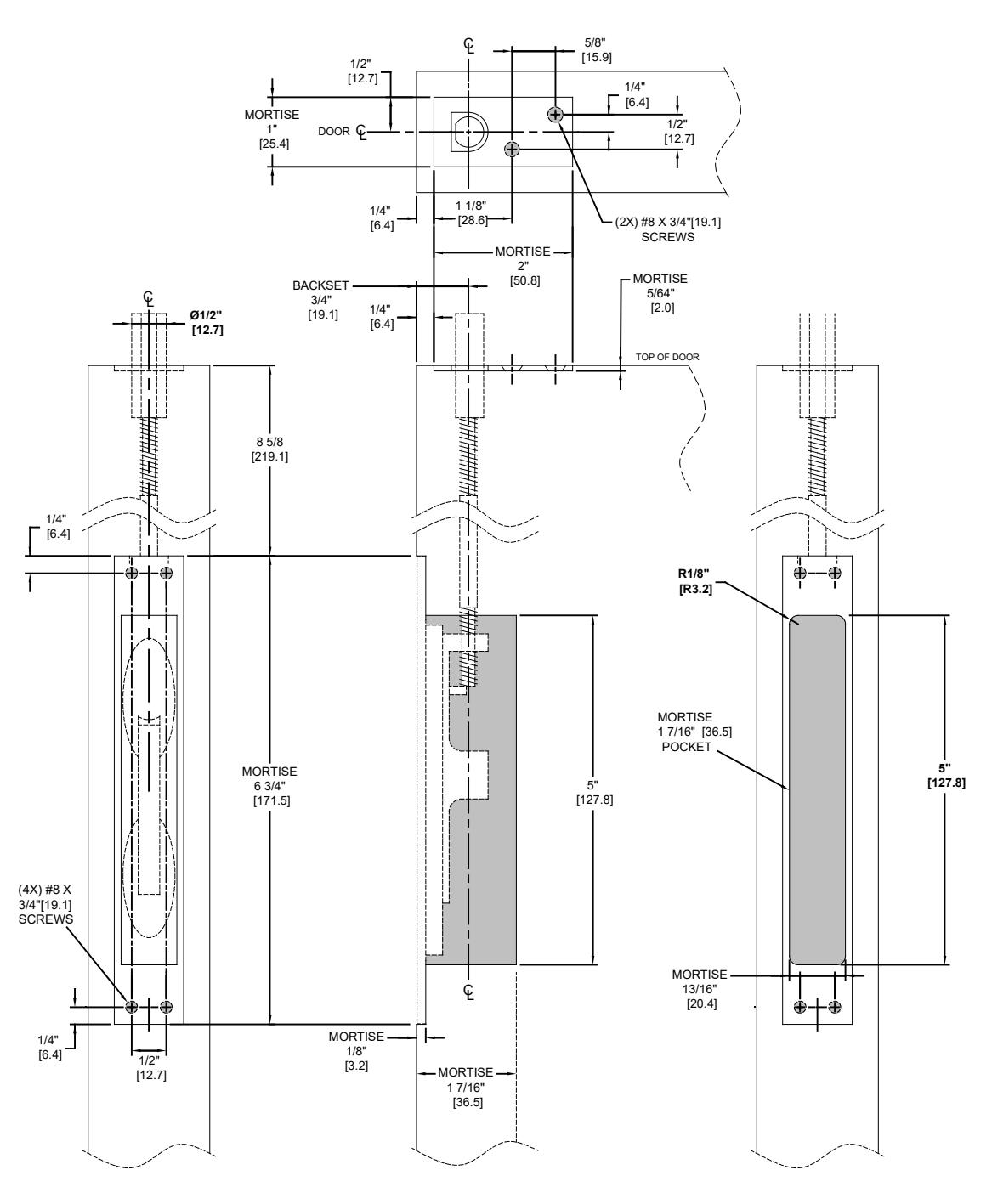

939307 93170 Manual Flush Bolt Template

TEMPLATE: 939307 REV. 3 11-14-2018

NOTES:

• DIMENSIONS IN [MM]

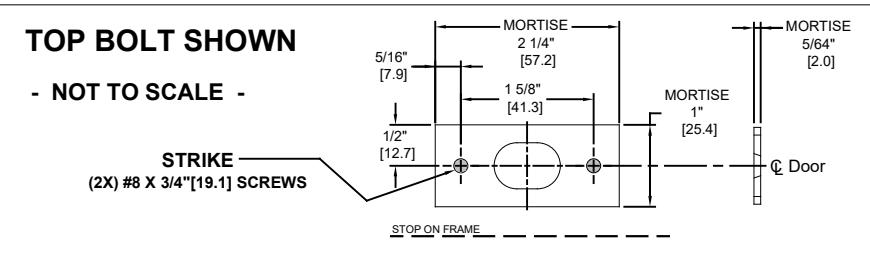

• 2. DIMENSIONS FOR TOP BOLT ARE AS SHOWN. FOR BOTTOM BOLT, INVERT AND MEASURE FROM THE BOTTOM EDGE OF THE DOOR
