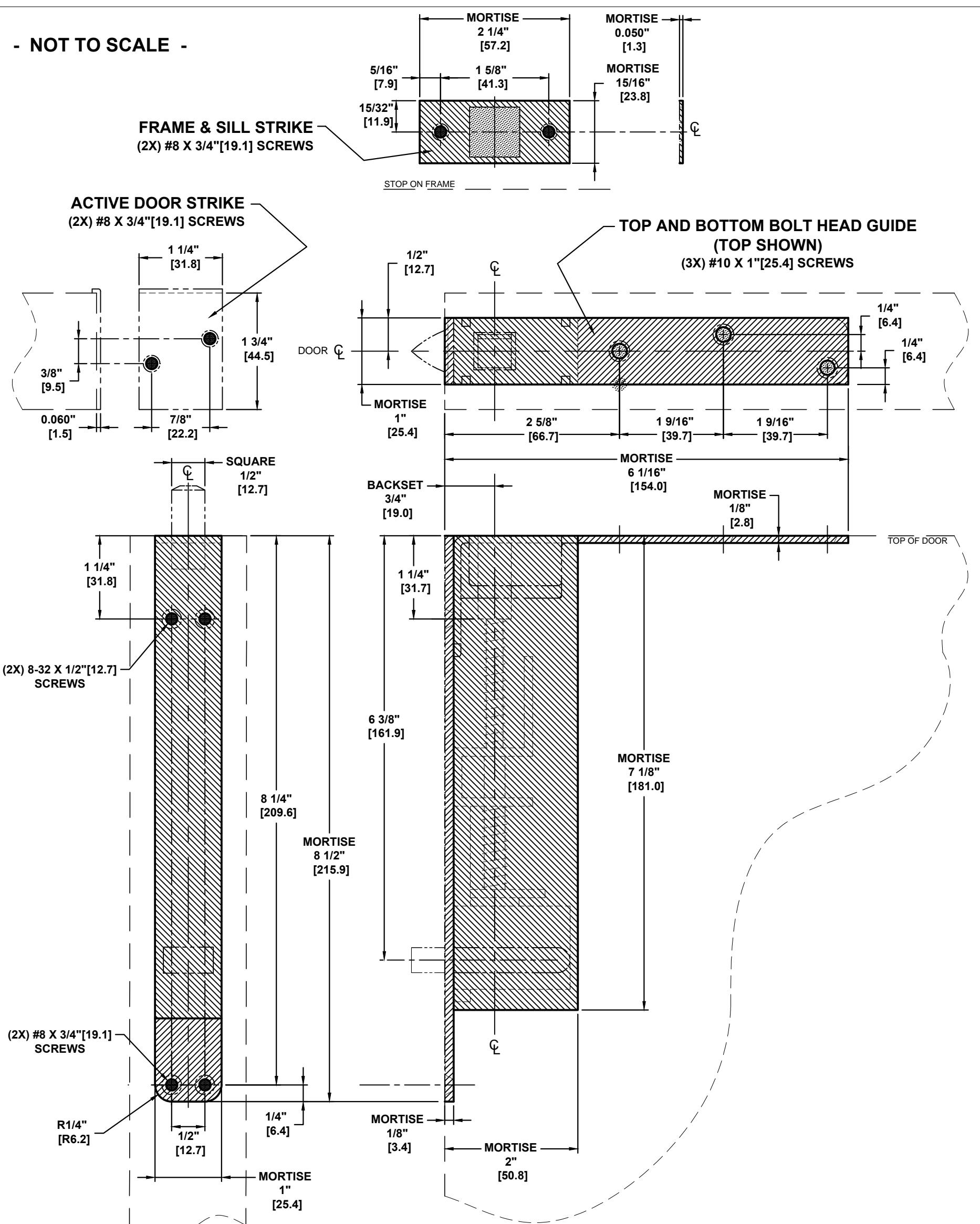

93203 AUTOMATIC FLUSH BOLT

FOR WOOD DOOR APPLICATIONS

NOTES:

1. DIMENSIONS IN [MM]

2. BOTTOM FIRE BOLT: THE BOTTOM FIRE BOLT WILL PROJECT DURING A FIRE. DO NOT COVER WITH ANY EDGE MOUNTED DOOR HARDWARE.

3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PAGE 1 OF 2

TEMPLATE: 939306

08-26-14

REV. 0

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com

93203 AUTOMATIC FLUSH BOLT WITH FIRE LATCH BOLT

FOR WOOD DOOR APPLICATIONS

TEMPLATE: 939306 REV. 0 08-26-14

- NOT TO SCALE -

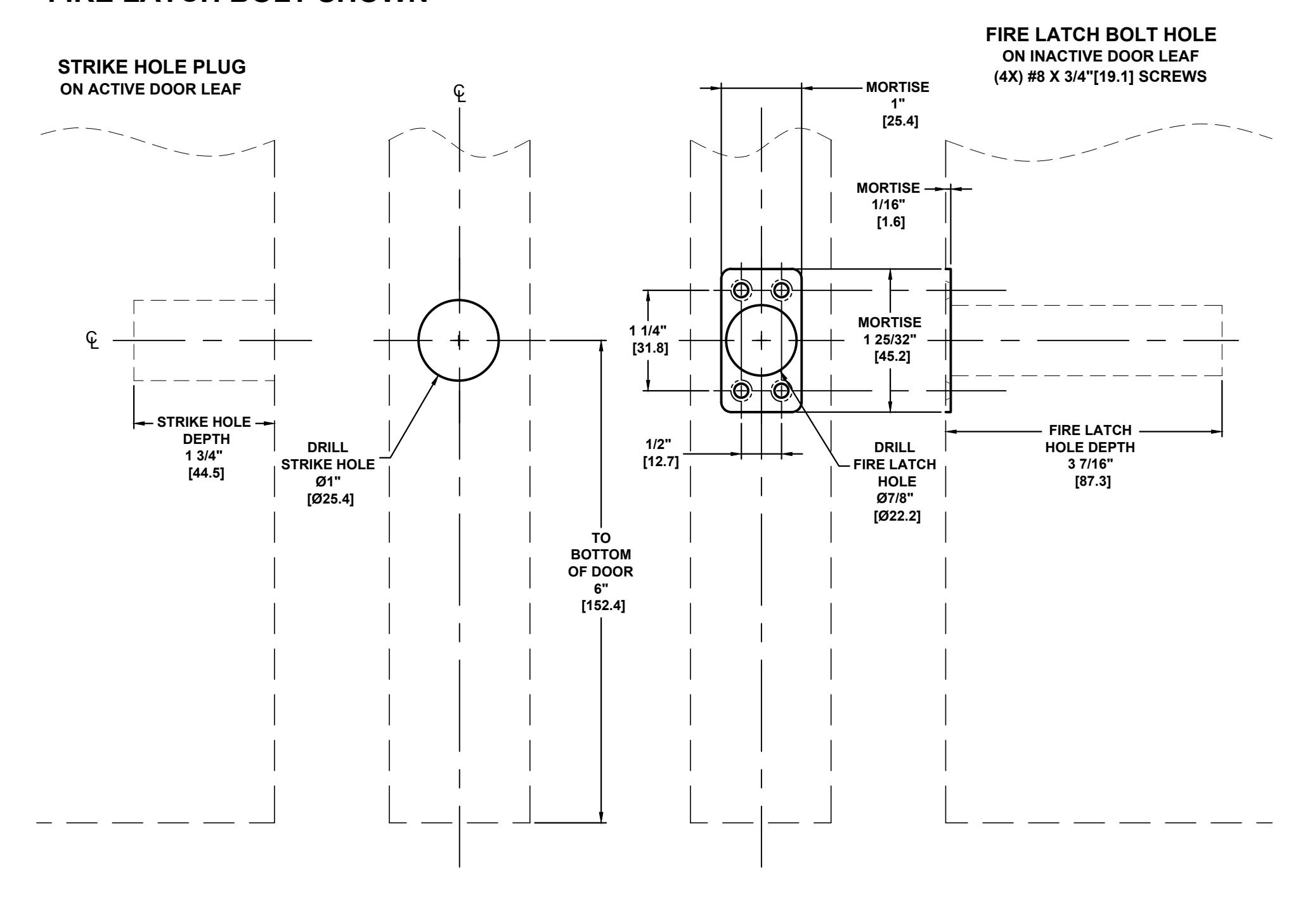

FIRE LATCH BOLT SHOWN

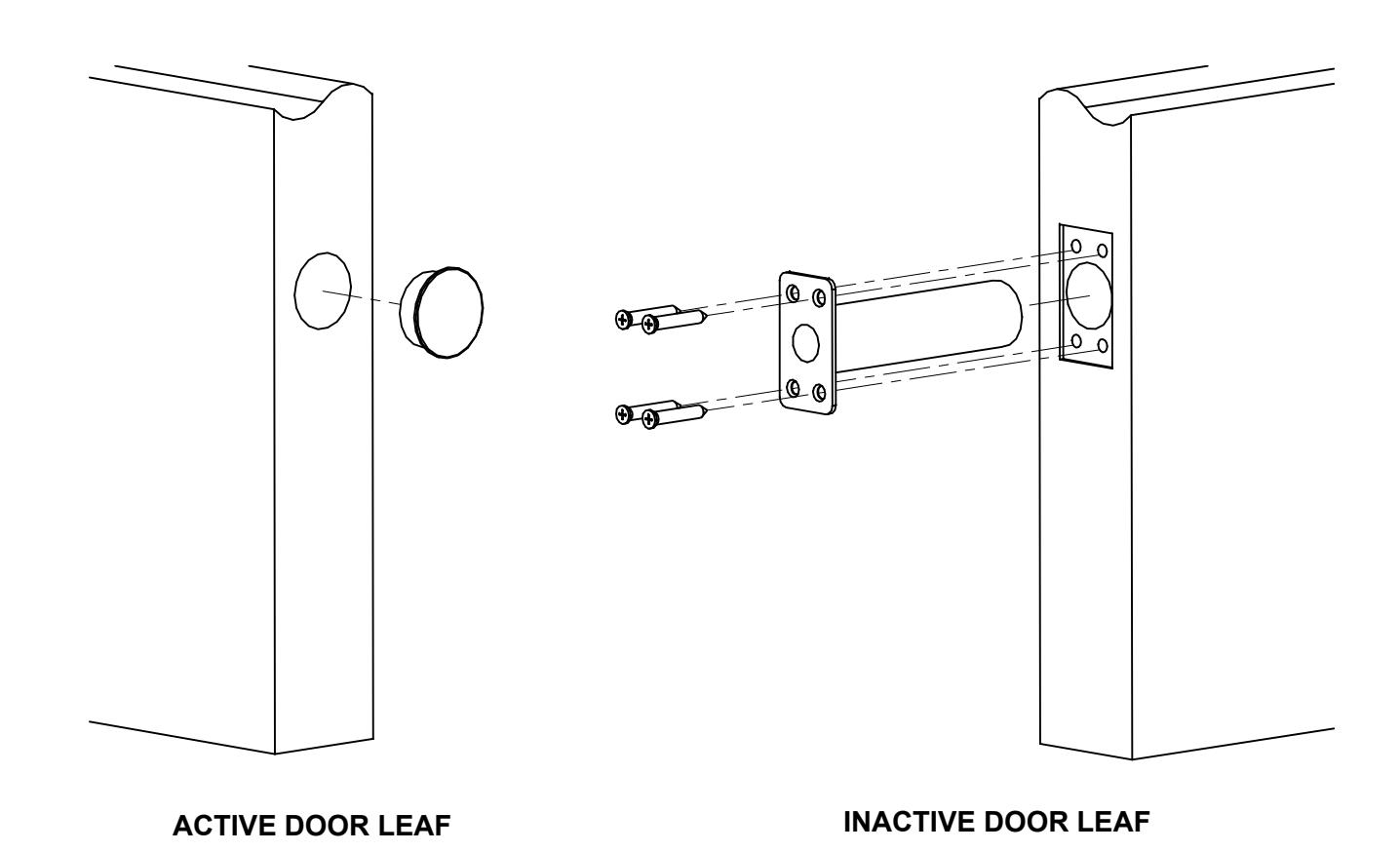

FIRE LATCH BOLT MOUNTING INSTRUCTIONS:

• A. INSERT FIRE LATCH BOLT INTO THE HOLE IN THE INACTIVE DOOR LEAF, THEN SECURE IT BY PROVIDED SCREWS. .
• B. INSERT PLUG INTO THE 1" DIAMETER STRIKE HOLE.

PAGE 2 OF 2

PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
