939305 93202 Combo Flush Bolt Template
Open the original PDF document

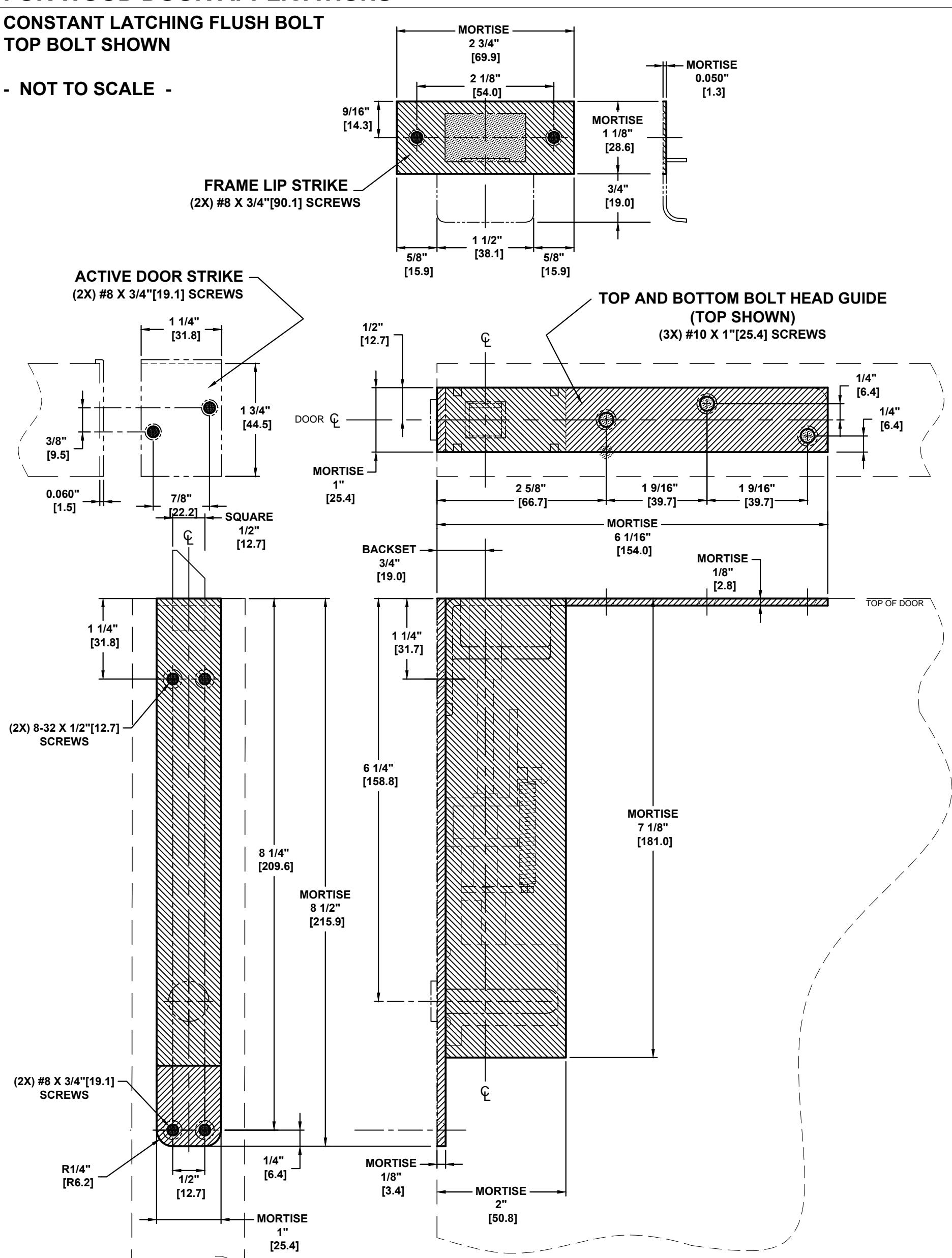

View PDF93202 COMBO FLUSH BOLT
FOR WOOD DOOR APPLICATIONS
NOTES:
- 1. DIMENSIONS IN
- 2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
PAGE 1 OF 2
TEMPLATE: 939305
08-26-14
REV. 0
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
TEMPLATE: 939305 REV. 0 08-26-14

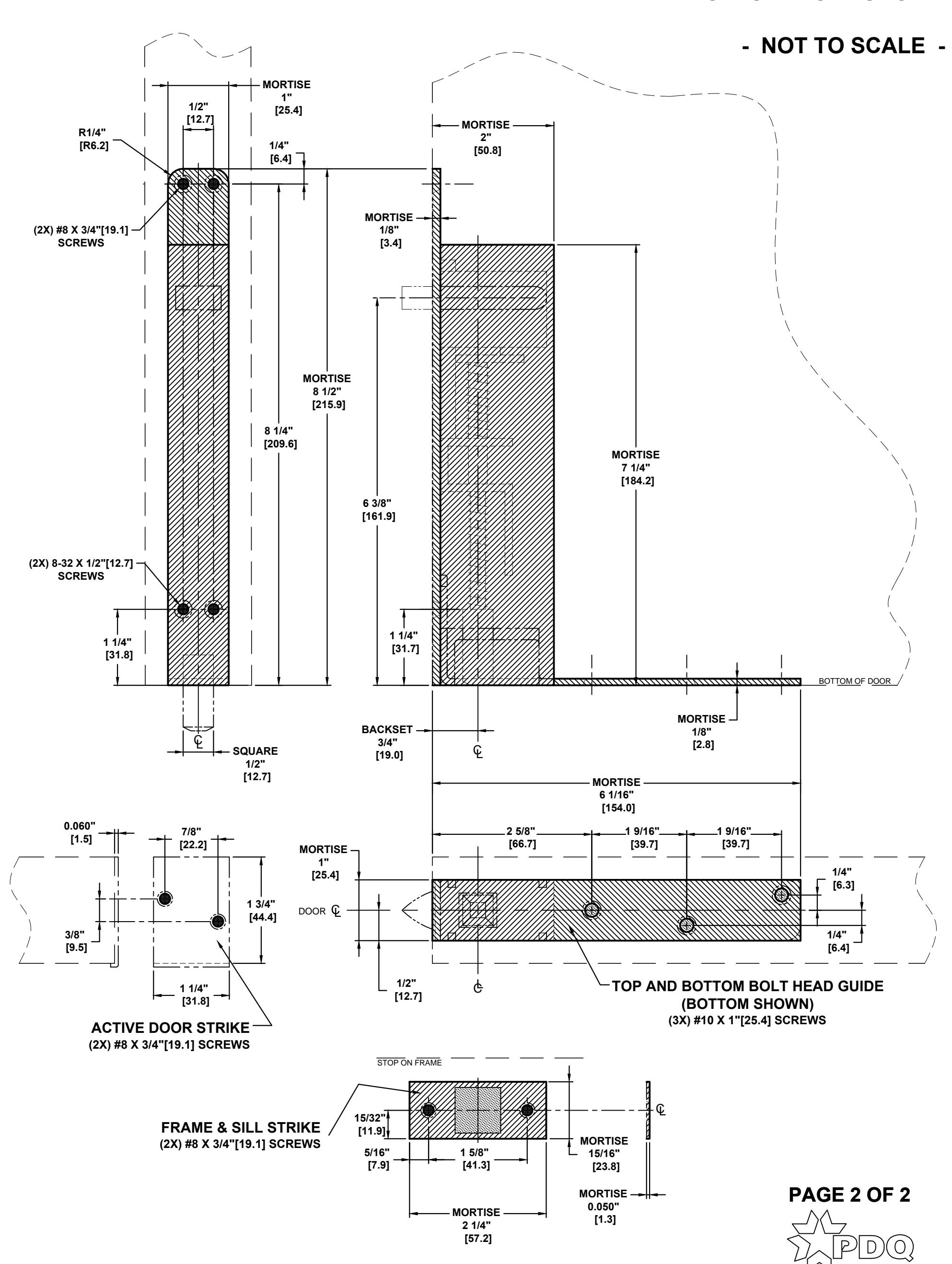

BOTTOM BOLT SHOWN
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
