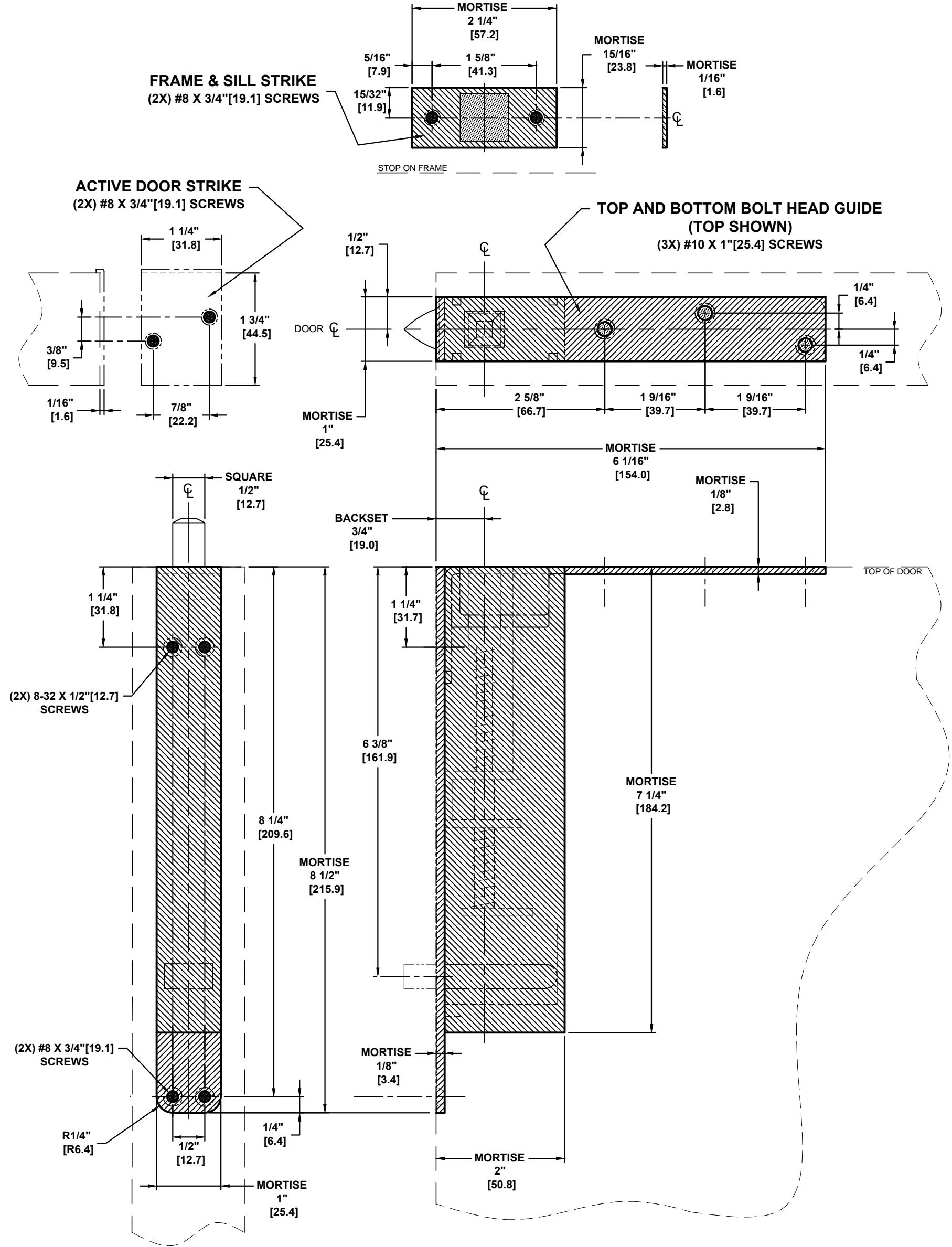

View PDF93201 AUTOMATIC FLUSH BOLT FOR WOOD DOOR APPLICATIONS
TEMPLATE: 939304 REV. 1 03-15-15
NOTES:
1. DIMENSIONS SHOWN ON THIS DRAWING ARE FOR TOP FLUSH BOLTS. FOR BOTTOM FLUSH BOLTS, INVERT AND MEASURE FROM BOTTOM EDGE OF DOOR.
3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692
Fax: 717-656-6892 www.pdqlocks.com
