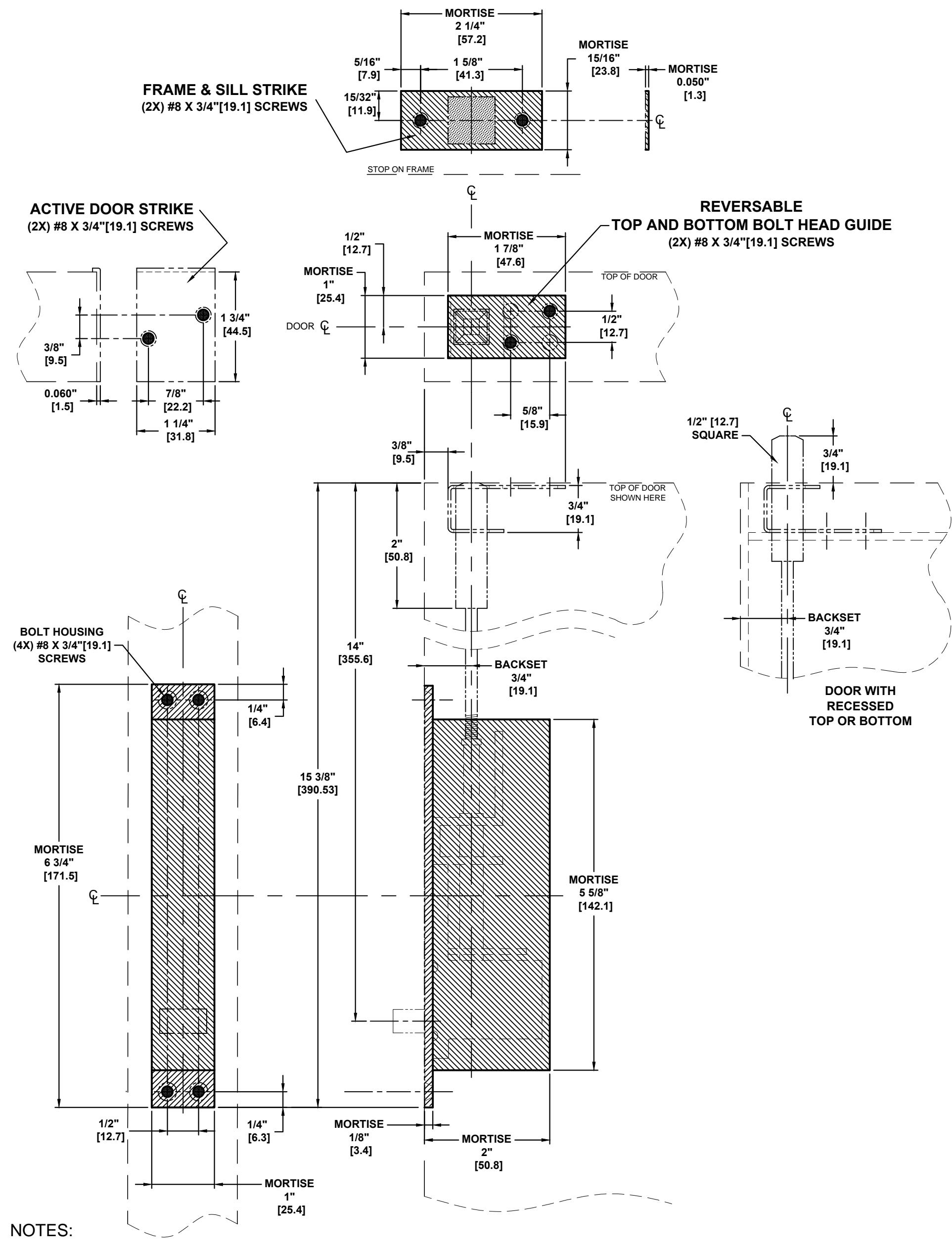

View PDF93101 AUTOMATIC FLUSH BOLT FOR METAL DOOR APPLICATIONS
TEMPLATE: 939301 REV. 0 08-26-14
- 1. DIMENSIONS SHOWN ON THIS DRAWING ARE FOR TOP FLUSH BOLTS. FOR BOTTOM FLUSH BOLTS, INVERT AND MEASURE FROM BOTTOM EDGE OF DOOR.
- 2. DIMENSIONS IN INCHES [MM]
- 3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
