View PDF578 SECURITY DOOR GUARD
FOR METAL AND WOOD DOORS
TEMPLATE: 929320 REV. 0 04-23-15
NOT TO SCALE
INSTALLATION INSTRUCTIONS:

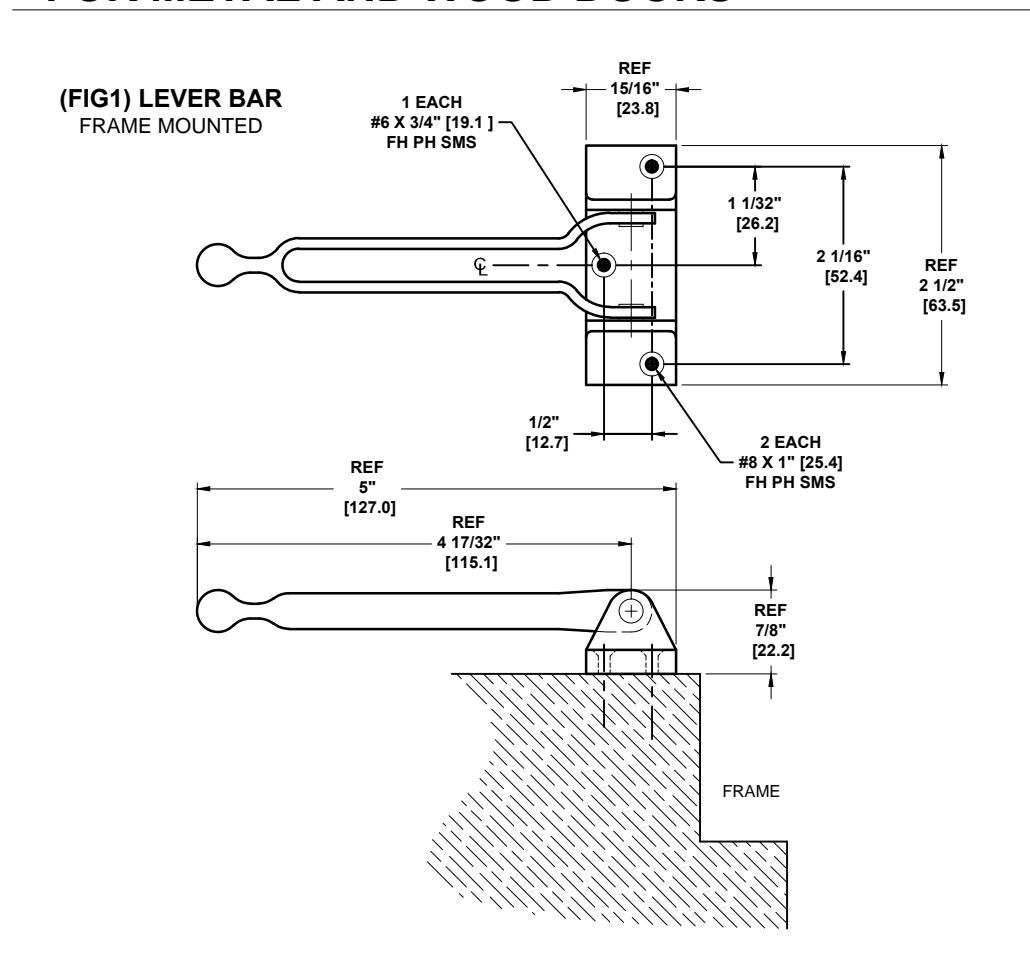

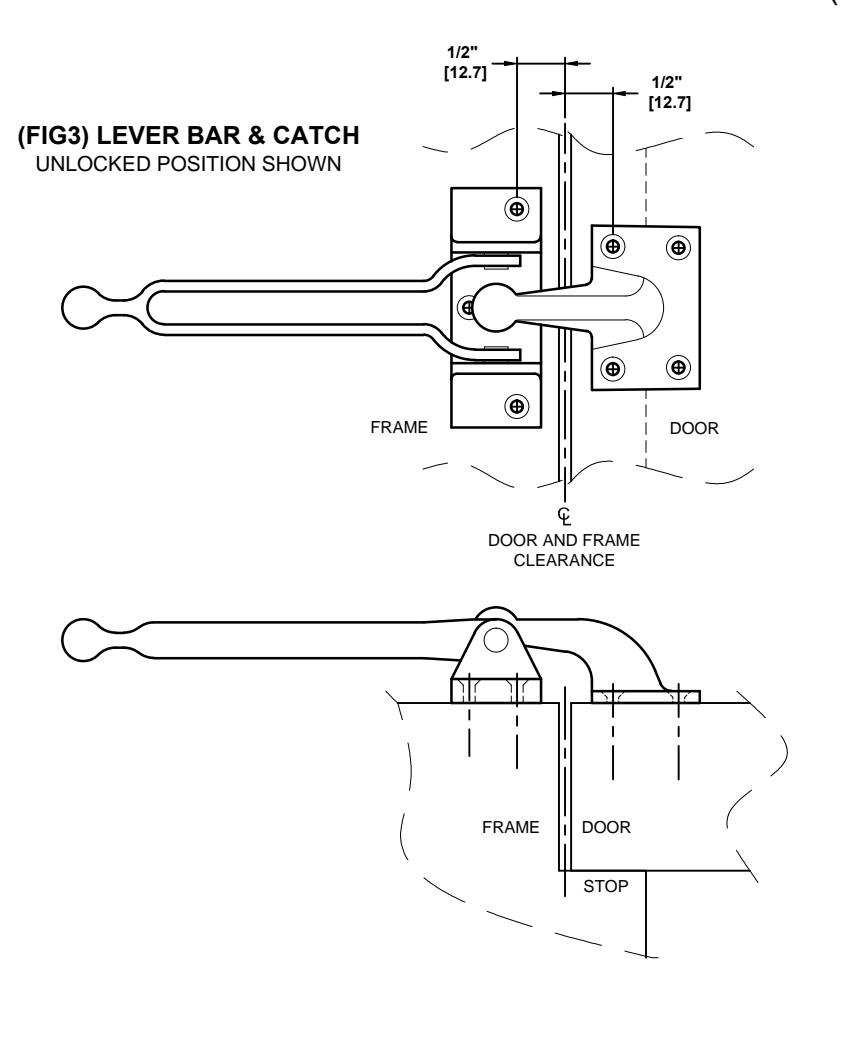

- INSTALL THE LEVER BAR ON THE INSIDE OF DOOR: LOCATE TWO LEVER BAR HOLES NEAREST TO THE DOOR EDGE AT 1/2" [12.7] FROM THE CENTERLINE OF THE CLOSED DOOR AND FRAME CLEARANCE (AS SHOWN FIG3).

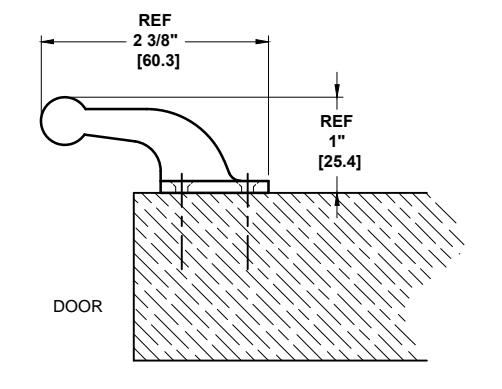

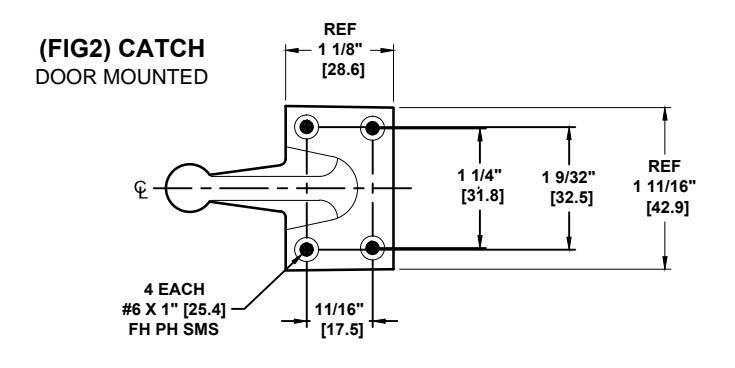

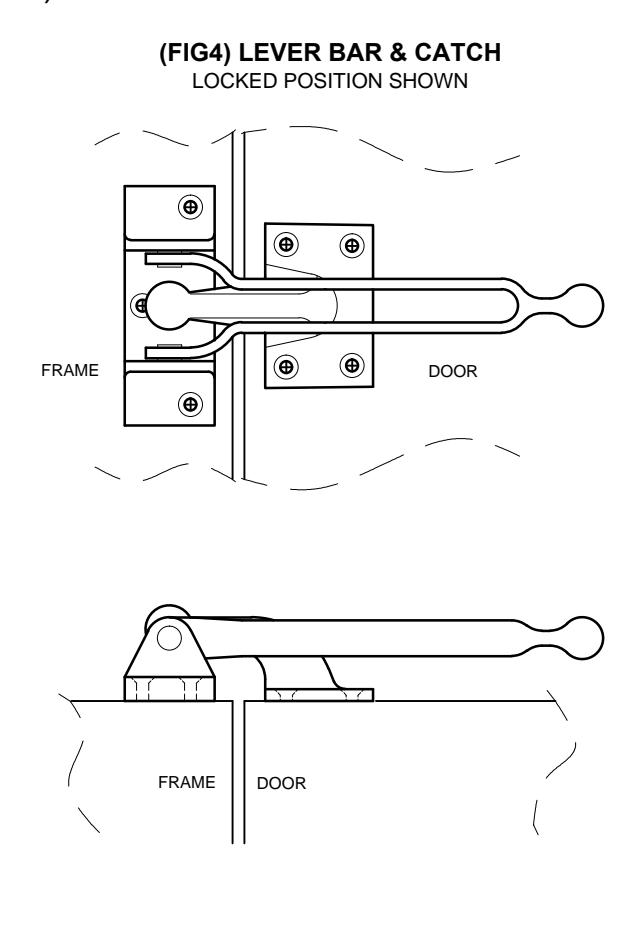

- 2. USE THE INSTALLED LEVER BAR IN THE UNLOCKED POSITION TO ALIGN AND INSTALL THE CATCH. LOCATE TWO CATCH HOLES NEAREST TO THE FRAME EDGE AT 1/2" [12.7] FROM THE CENTERLINE OF THE CLOSED DOOR AND FRAME CLEARANCE (AS SHOWN FIG3).
NOTES:
- 1. DIMENSIONS IN [MM]
- 2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
