926 Keypad Pricesheet
Open the original PDF document
View PDF

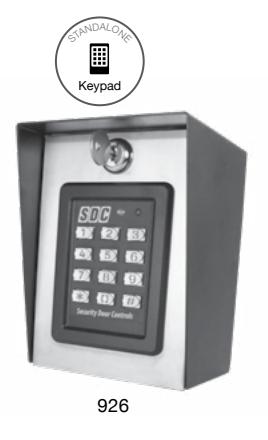

The 926 Series EntryCheck™ elevates the robustness of the indoor/outdoor 920 keypad with a heavy metal privacy and rain shroud. Perfect for post mount applications. ELECTRICAL SPECIFICATIONS (KEYPAD)
| Voltage | 12/24 VAC/DC |
|---|---|
| Current | 30mA typical, 150mA maximum |
| Outputs |
Main Relay: Form "C" 5 Amps @ 28 Volts max
Auxiliary Relay: Form "C" 2 Amp @ 28 Volts max Type: Solid state outputs (Outputs #3 & #4) Short-to-common 100 mA @ 24 VDC maximum |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimension | 4-3/4"W x 6-3/8"H x 4-1/2"D |

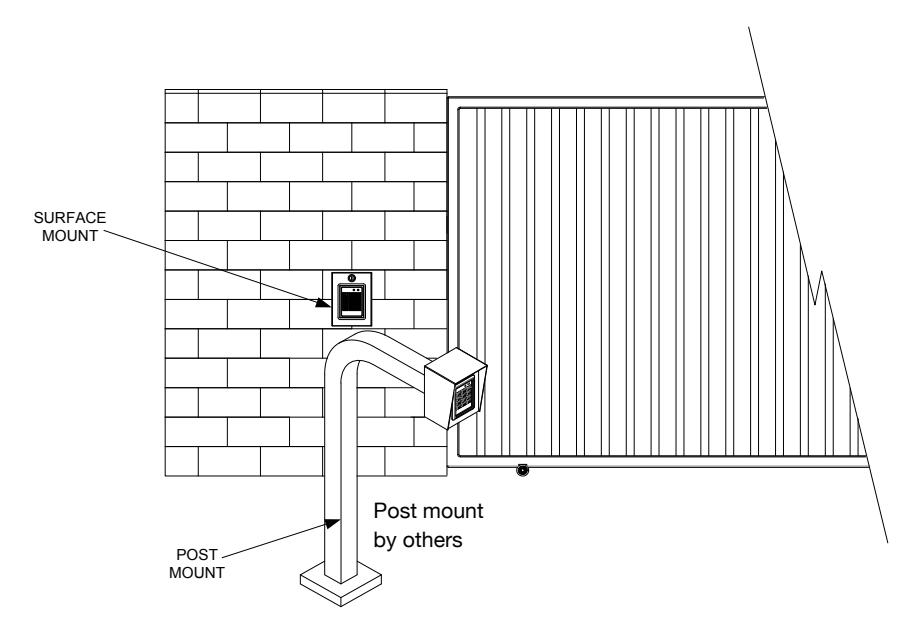

926 Outdoor Keypad for surface wall or pedestal post mount 268.00
ACCESSORIES LIST

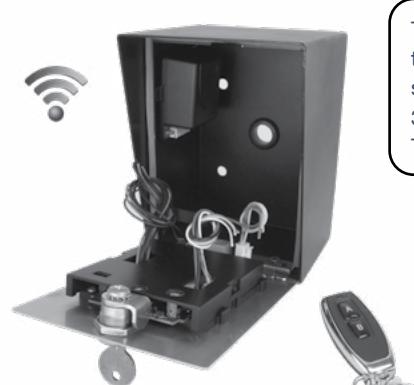

926 with WRC Wireless Receiver and Pendant Transmitter
The perfect companion for the 926 EntryCheck is SDC's WRC Series 2-Channel wireless transmitter/receiver solution. Specifically designed to be used as a remote release for single or dual door access control applications. Receiver has the capacity to learn up to 30 fixed transmitter codes using the onboard learning button and status LED. The WRC-R2 Receiver fits perfectly inside the 926 housing.
WRC-2B 433MHz 2-Button Pendant Wireless Transmitter 54.00 WRC-R2 433MHz 2-Channel Wireless Receiver 87.00
