View PDFEntryCheck™ 926 Series Digital Keypads
The SDC EntryCheck™ 926 Series outdoor stand-alone digital keypads with incorporated Privacy and Weather Protecting Housing are designed to control doors or gates with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid four to six digit code activates one or both of the output relays.
The keypad electronics are secured by an integral key lock and built-in tamper switch.
The heavy steel vandal resistant housing design allows the 926 to be surface mounted on a wall or pedestal post.
- Digital Keypad with backlit keys
- Weather & Vandal Resistant Housing with Tactile Metal Keys
- 12-Key Illuminated, 3" x 4" Keypad
- Surface Wall or Pedestal Post Mount
- 4 independent outputs
- 4 independent timers
- 2 Form C relay contacts
- 2 solid state open collector outputs
- Program entry codes to activate 1 or 2 relays
- Disable input
- Door sense input
- Request-to-exit input
- Keypad tamper lockout
- Timed anti-passback
- Anti-tailgate
- Two LED status indicators
- Tactile key feel
- Audible code entry verification
- 12V or 24V, AC or DC operation
- Integral key lock w/ 2 keys
- Integral Anti-tamper switch

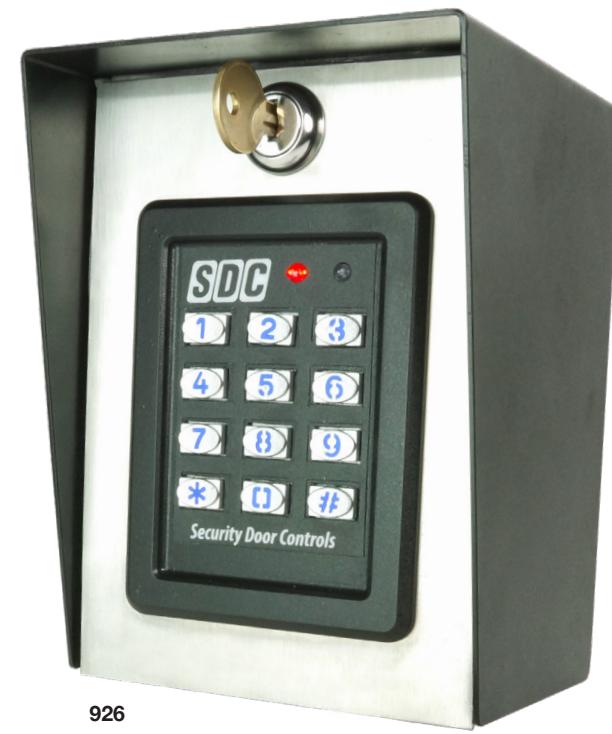

926

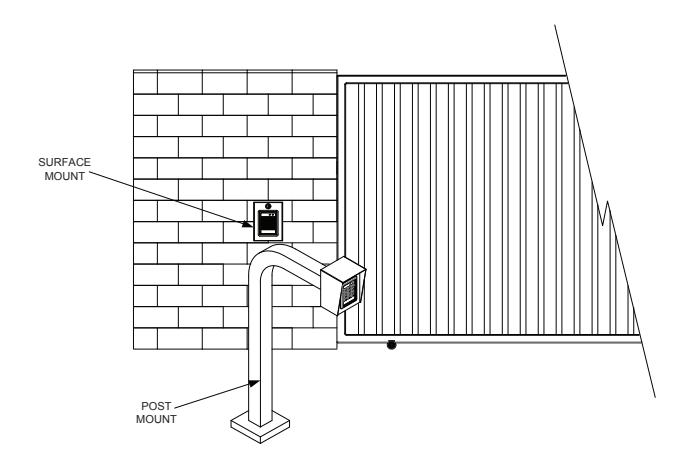

Outdoor Keypad for surface wall or pedestal post mount
926 SPECIFICATIONS
| Current 30mA typical, 150mA maximum Main Relay: Form "C" 5 Amps @ 28 Volts max Auxiliary Relay: Form "C" 2 Amp @ 28 Volts max Type: Solid state outputs (Outputs #3 & #4) Short-to-common 100 mA @ 24 VDC maximum Temperature -4°F to 140°F (-20°C to 60°C) Humidity 5% to 95% non-condensing Dimensions 4-3/4"W x 6-3/8"H x 4-1/2"D | Voltage | 12/24 VAC/DC |
|---|---|---|
| Auxiliary Relay: Form "C" 2 Amp @ 28 Volts max Type: Solid state outputs (Outputs #3 & #4) Short-to-common 100 mA @ 24 VDC maximum Temperature -4°F to 140°F (-20°C to 60°C) Humidity 5% to 95% non-condensing Dimensions 4-3/4"W x 6-3/8"H x 4-1/2"D | Current | 30mA typical, 150mA maximum |
| Humidity 5% to 95% non-condensing Dimensions 4-3/4"W x 6-3/8"H x 4-1/2"D | Outputs | Auxiliary Relay: Form "C" 2 Amp @ 28 Volts max Type: Solid state outputs (Outputs #3 & #4) |
| Dimensions 4-3/4"W x 6-3/8"H x 4-1/2"D | Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 5% to 95% non-condensing | |
| Weight 2.54 lbs | Dimensions | 4-3/4"W x 6-3/8"H x 4-1/2"D |
| 2.0 : | Weight | 2.54 lbs |
ACCESSORIES
The perfect companion for the 926 EntryCheck is SDC's WRC Series 2-Channel wireless transmitter/receiver solution. Specifically designed to be used as a remote release for single or dual door access control applications. Receiver has the capacity to learn up to 30 fixed transmitter codes using the onboard learning button and status LED.

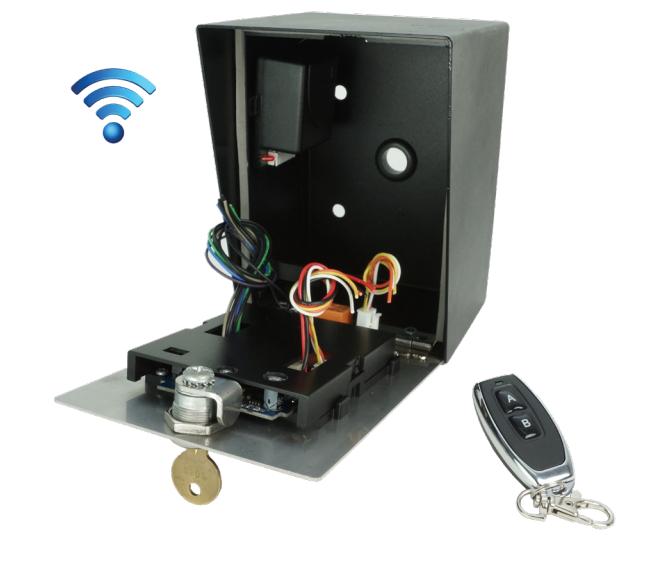

The WRC-R2 Receiver fits perfectly inside the 926 housing.
WRC-R2 433MHz Two-Channel Wireless
Receiver
WRC-2B 433MHz Two-Button Pendant
Wireless Transmitter
