923 Series Keypad Pricesheet
Open the original PDF document
View PDF
activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| Voltage | 12/24 VAC/DC — 5-16 VDC for Wiegand (920PW) | ||
|---|---|---|---|
| Current | 30mA typical, 150mA maximum - 60mA max for Wiegand | ||
| Outputs (920/920P) |
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 30VDC |
||
| Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) | ||
| Operating Humidity | 5% to 95% non-condensing | ||
| Housing | 3"W x 5-3/4"H x 1-7/16"D | ||

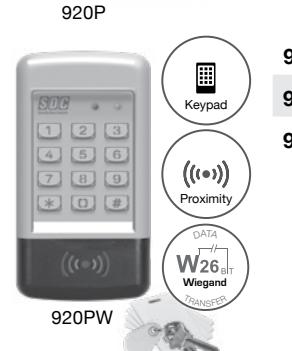

The 920 Series EntryCheck™ stand-alone digital keypad is designed to control access of a single
entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code
| 920 | Stand alone digital keypad | 195.00 |
|---|---|---|
| 920P | Stand alone digital keypad with Prox Reader | 433.00 |
| 920PW | Digital keypad with Prox Reader, Wiegand output | 433.00 |
CARDS, KEY FOBS and TAGS see bottom of page 73

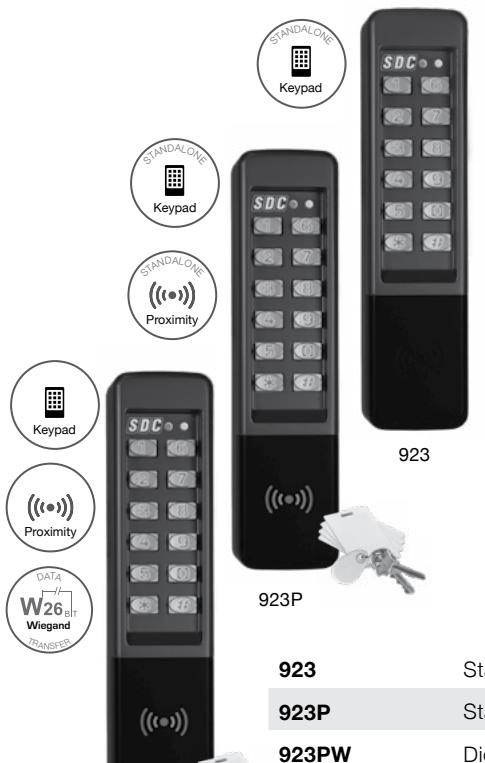

923/923P/923PW Narrow INDOOR/OUTDOOR EntryCheck™
Distributor Discount Code
LIST
923PW
The 923 Series EntryCheck<sup>TM</sup> narrow stand-alone digital keypad is designed to control access of a single entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| Voltage | 12/24 VAC/DC — 5-16 VDC for Wiegand | ||
|---|---|---|---|
| Current | 30mA typical, 150mA maximum - 60mA max for Wiegand | ||
| Outputs (923/923P) |
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 30VDC |
||
| Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) | ||
| Operating Humidity | 5% to 95% non-condensing | ||
| Housing | 1-3/4"W x 7-5/16"H x 1-3/8"D | ||
Stand alone digital keypad, narrow Stand alone digital keypad, narrow, with Prox Reader 527.00 Digital keypad, narrow, with Prox Reader, Wiegand output 527.00
CARDS, KEY FOBS and TAGS see bottom of page 73
CARDS, KEY FOBS and TAGS see bottom of page
The 921P stand-alone digital keypad with Prox Reader and Controller (2-piece configuration) are designed to control access of a single entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| Voltage | 12/24 VAC/DC | |
| Current | 60mA typical, 150mA maximum | |
| Outputs |
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 30VDC |
|
| Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) | |
| Operating Humidity | 5% to 95% non-condensing | |
| Housing |
921P:
3"W x 5-3/4"H x 1-7/16"D
Controller: 5-5/8"H x 7-11/16"W x 3-3/8"D |
|
Stand alone, surface mount digital keypad, with Prox Reader and Controller
638.00

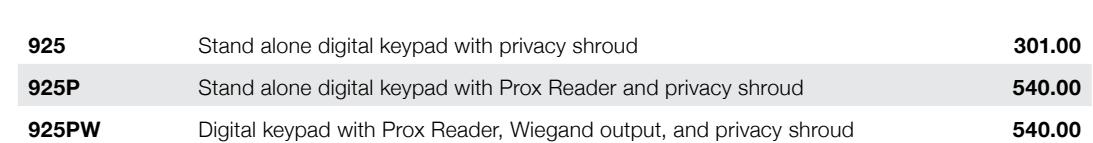

925/925P/925PW INDOOR/OUTDOOR Shroud EntryCheck™
921P
LIST
Post mount bv
others
FLECTRICAL SPECIFICATIONS (KEYPAD)
| Voltage | 12/24 VAC/DC - 5-16 VDC for Wiegand (925PW) |
|---|---|
| Current | 30mA typical, 150mA maximum - 60mA max for Wiegand |
| Outputs (925/925P) |
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 30VDC |
| Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) |
| Operating Humidity | 5% to 95% non-condensing |
| Shroud Dimension | 4-1/16"W x 6-1/8"H x 2-5/8"D |
| Cards, Key FOBS and Tags |
Distributor
Discount Code |
MV LIST | |
|---|---|---|---|
| HID1326-10 | Proximity Card, HID compatible, 10 cards | 75.00 | |
| HID1326-25 | Proximity Card, HID compatible, 25 cards | 177.00 | |
| HID1326-100 | Proximity Card, HID compatible, 100 cards | 710.00 | |
| HID1346-10 | Proximity Key Fob, HID compatible, 10 key fobs | 145.00 | |
| HID1346-100 | Proximity Key Fob, HID compatible, 100 key fobs | 1,419.00 | |
| PTAG-10 | Proximity Disc Tag, HID compadible, 10 tags | 81.00 | |
| PTAG-25 | Proximity Disc Tag, HID compadible, 25 tags | 193.00 | |
