The 921P stand-alone digital keypad with Prox Reader and Controller (2-piece configuration) are designed to control access of a single entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| , , |
|---|
| Switch to Common Outputs 3 & 4 – 100mA @ 30VDC |
| Switch to Common Outputs 3 & 4 – 100mA @ 30VDC |
|
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC |
| 60mA typical, 150mA maximum |
| 12/24 VAC/DC |

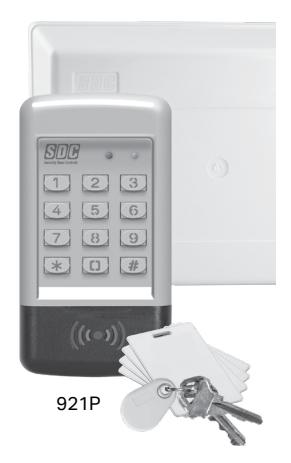

921P Stand alone, surface mount digital keypad, with Prox Reader and Controller
638.00
900-PS with 920 Keypad
| ACCESSORIES | Add to List | |
|---|---|---|
| 900-PS | Privacy Shroud for stand alone digital keypads 918. | 107.00 |
Privacy Shroud for stand alone digital keypads 918. Ensure security from spying eyes.
| Cards, Key l | FOBS and Tags |
Distributor
Discount Code |
MV LIST |
|---|---|---|---|
| HID1326-10 | Proximity Card, HID compatible, 10 cards | 75.00 | |
| HID1326-25 | Proximity Card, HID compatible, 25 cards | 177.00 | |
| HID1326-100 | Proximity Card, HID compatible, 100 cards | 710.00 | |
| HID1346-10 | Proximity Key Fob, HID compatible, 10 key fobs | 145.00 | |
| HID1346-100 | Proximity Key Fob, HID compatible, 100 key fobs | 1,419.00 | |
| PTAG-10 | Proximity Disc Tag, HID compadible, 10 tags | 81.00 | |
| PTAG-25 | Proximity Disc Tag, HID compadible, 25 tags | 193.00 |
