The 920 Series EntryCheck™ stand-alone digital keypad is designed to control access of a single entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| Voltage | 12/24 VAC/DC — 5-16 VDC for Wiegand (920PW) | |
| Current | 30mA typical, 150mA maximum - 60mA max for Wiegand | |
| Outputs (920/920P) |
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 – 100mA @ 30VDC |
|
| Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) | |
| Operating Humidity | 5% to 95% non-condensing | |
| Housing | 3"W x 5-3/4"H x 1-7/16"D | |
| 920 | Stand alone digital keypad | 195.00 |
|---|---|---|

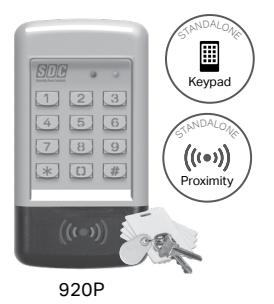

| 920P | Stand alone digital keypad with Prox Reader | 433.00 |

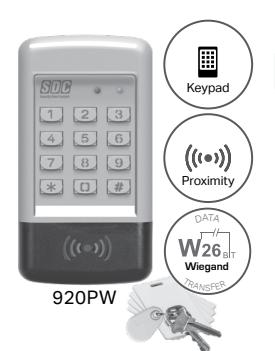

| 920PW | Digital keypad with Prox Reader, Wiegand output | 433.00 |
ACCESSORIES Add to List
900-PS Privacy Shroud for stand alone digital keypads 918. Ensure security from spying eyes.
107.00
See bottom of page 73 for PROX CARDS, FOBS & TAGS
923/923P/923PW Narrow INDOOR/OUTDOOR EntryCheck™ JK LIST Distributor Discount Code
923PW

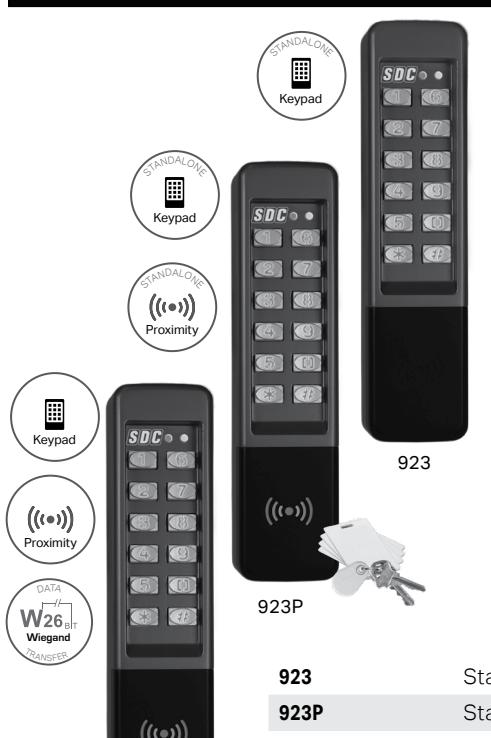

The 923 Series EntryCheck™ narrow stand-alone digital keypad is designed to control access of a single entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| Voltage | 12/24 VAC/DC — 5-16 VDC for Wiegand | |
|---|---|---|
| Current |
30mA typical, 150mA maximum - 60mA max
for Wiegand |
|
| Outputs (923/923P) |
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 – 100mA @ 30VDC |
|
| Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) | |
| Operating Humidity | 5% to 95% non-condensing | |
| Housing | 1-3/4"W x 7-5/16"H x 1-3/8"D | |
923 Stand alone digital keypad, narrow 222.00 923P Stand alone digital keypad, narrow, with Prox Reader 527.00 923PW Digital keypad, narrow, with Prox Reader, Wiegand output 527.00
See bottom of page 73 for PROX CARDS, FOBS & TAGS
JK
900-PS

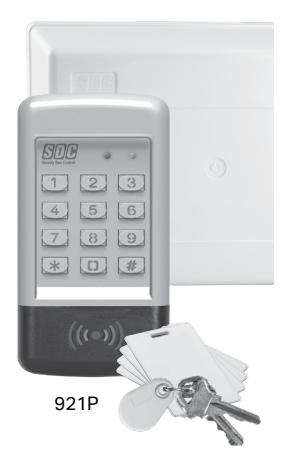

The 921P stand-alone digital keypad with Prox Reader and Controller (2-piece configuration) are designed to control access of a single entry point with up to 500 users with a PIN Code and/or HID compadible credentials. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing. Heavy Cast Metal Blue Backlit Keys.
ELECTRICAL SPECIFICATIONS
| Current 60mA typical, 150mA maximum Outputs Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC | Housing |
921P:
3"W x 5-3/4"H x 1-7/16"D
Controller: 5-5/8"H x 7-11/16"W x 3-3/8"D |
|
|---|---|---|---|
| Current 60mA typical, 150mA maximum Outputs Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 3 | Operating Humidity | 5% to 95% non-condensing | |
| Current 60mA typical, 150mA maximum Outputs Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC | Operating Temperature | -4°F to + 140°F (-20°C to + 60°C) | |
| Current 60mA typical, 150mA maximum | Outputs | , , | |
| 12/24 VAO/DO | Current | 60mA typical, 150mA maximum | |
| Voltage 12/24 V/AC/DC | Voltage | 12/24 VAC/DC | |
921P Stand alone, surface mount digital keypad, with Prox Reader and Controller
638.00
900-PS with 920 Keypad
| ACCESSORIES | Add to List |
|---|---|
Privacy Shroud for stand alone digital keypads 918. Ensure security from spying eyes.
107.00
| Cards, Key | FOBS and Tags |
Distributor
Discount Code |
MV LIST |
|---|---|---|---|
| HID1326-10 | Proximity Card, HID compatible, 10 cards | 75.00 | |
| HID1326-25 | Proximity Card, HID compatible, 25 cards | 177.00 | |
| HID1326-100 | Proximity Card, HID compatible, 100 cards | 710.00 | |
| HID1346-10 | Proximity Key Fob, HID compatible, 10 key fobs | 145.00 | |
| HID1346-100 | Proximity Key Fob, HID compatible, 100 key fobs | 1,419.00 | |
| PTAG-10 | Proximity Disc Tag, HID compadible, 10 tags | 81.00 | |
| PTAG-25 | Proximity Disc Tag, HID compadible, 25 tags | 193.00 | |
