920 Series Digital Keypad Benefits

EntryCheck® Stand Alone

Digital Access Control Family

SDC's 918, 920 and 923 EntryCheck® heavy duty digital keypads are designed to control a single access point up to 500 users. All EntryCheck® keypads are Uniform Keyboard ProgrammableTM for convenience and available with optional HID ProxCard or ProxKey fob compatibility for selected models.

How Your Customer Benefits:

• • Uniform Keypad Features
• • Keypad Programmable
• • Cost Effective, Yet Robust
• • Optional HID ProxCard or ProxKey Fob
• • Optional Weigand Output
• • 12/24VAC/DC Input
• • Request-To-Exit/Enter Input/Output
• • Surface, Mullion, or Single-Gang Mount

What You Need To Know:

The EntryCheck® Stand Alone Digital Access Control Family of keypads assigns each user a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

Each keypad comes with 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off) and also has a request-to-exit input for connection to an exit switch and/or fire access key switch for fire/emergency access. The tactile keys provide loudness selectable audible volume for key depression or output activation.

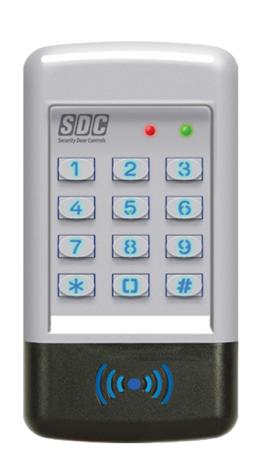

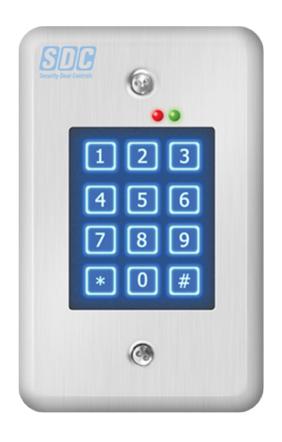

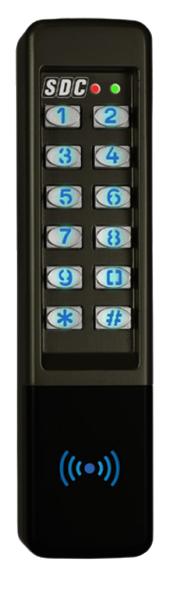

EntryCheck® heavy duty digital keypads come in a number of variations: Surface Mount, Recessed, Narrow Design, Vandal Resistant and High Security with separate controller.
