90541 Template – Angle Jamb Bracket for 9000, 9000A & 8000 Series
Open the original PDF document

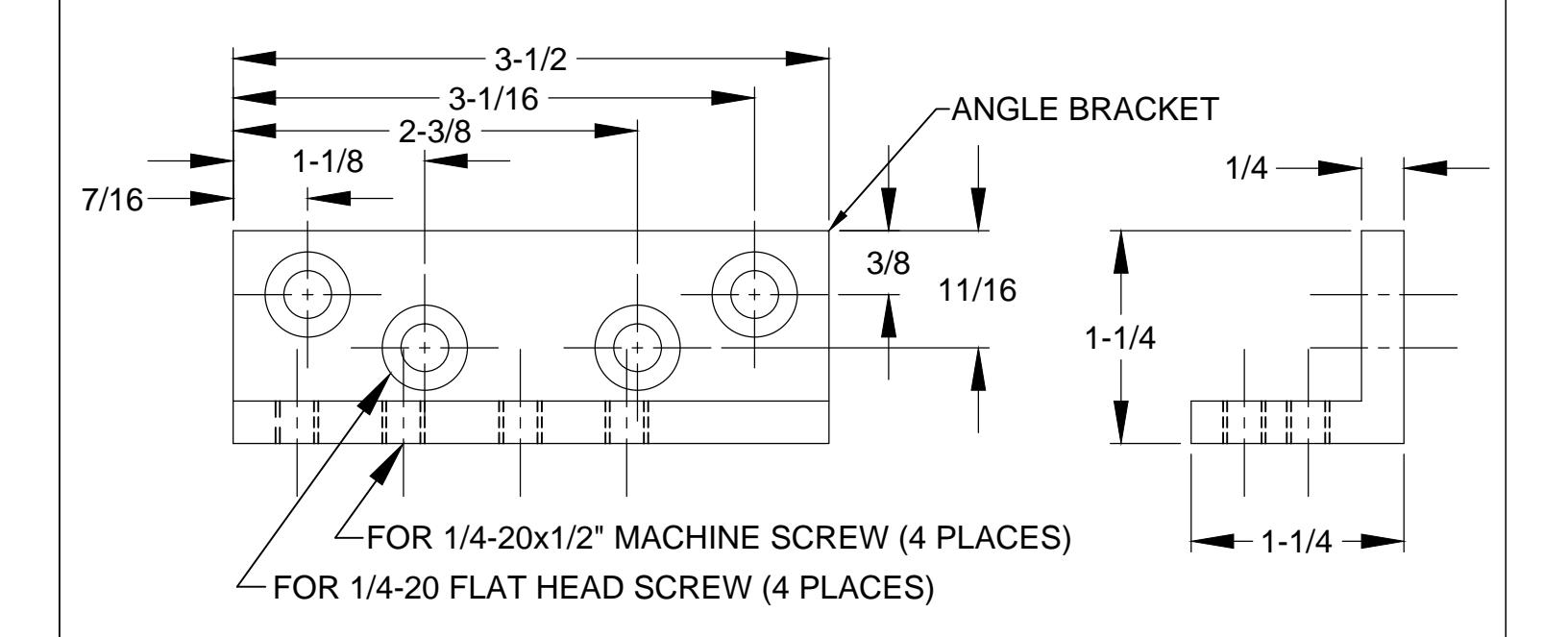

View PDFANGLE BRACKET FOR 8000 STOP ONLY, 9000 & 9000ADJ HOLDERS AND STOPS

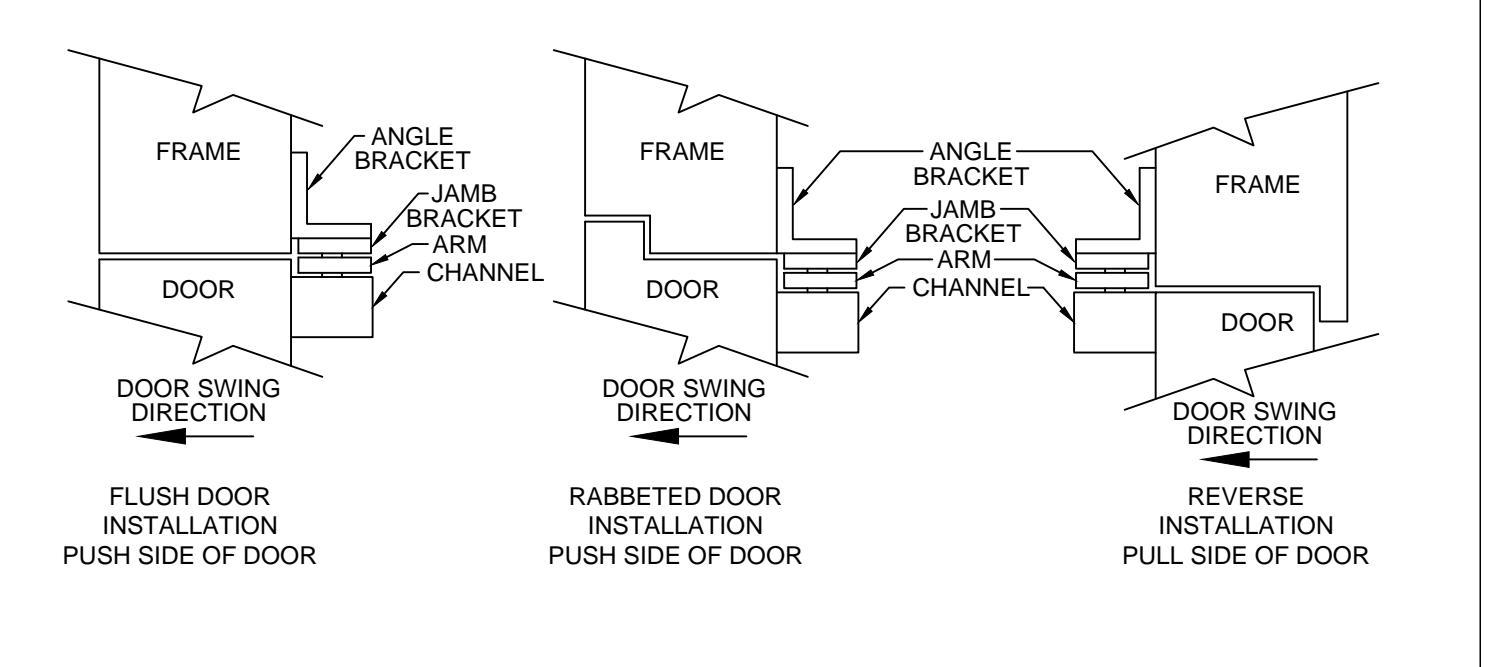

THE ANGLE BRACKET IS SECURED TO THE HEADER WITH WOOD OR MACHINE SCREWS. THE JAMB BRACKET FASTENS TO THE ANGLE BRACKET WITH MACHINE SCREWS. THE CHANNEL MOUNTS ON THE DOOR WITH SEX BOLTS. REVERSE INSTALLATION METHOD IS NOT RECOMMENDED FOR EXTERIOR DOORS OPENING OUT.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
90541-01.DWG
90541 PAGE 1 OF 1 ISSUED 10-24-18
