9000RA ADJUSTABLE SERIES HOLDERS & STOPS

SURFACE MOUNT

◆ 9010RA HOLD-OPEN ◆9020RA STOP

ना

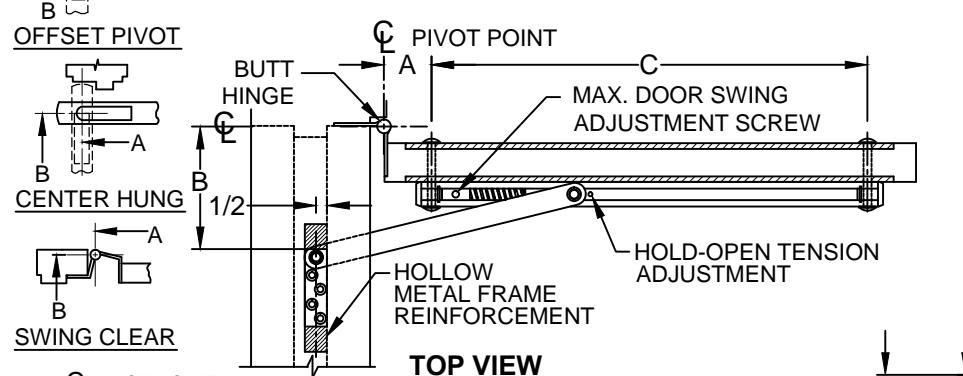

A = € OF PIVOT POINT TO € OF FIRST SEX BOLT.

HOLLOW METAL FRAME

  • B = € OF PIVOT POINT TO START OF JAMB BRACKET
  • C = € OF FIRST SEX BOLT TO € OF SECOND SEX BOLT

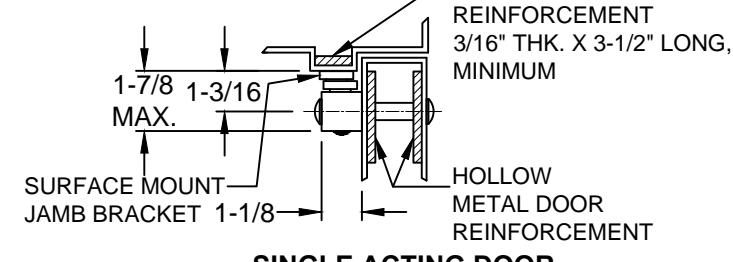

SINGLE ACTING DOOR

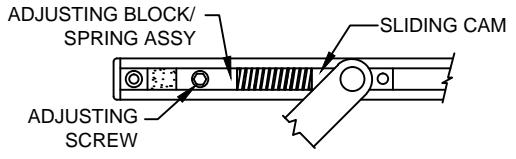

CHANGING MAXIMUM DEGREE OF DOOR SWING:

  • LOOSEN THE ADJUSTING SCREW
  • OPEN OR CLOSE DOOR TO THE REQUIRED DEGREE.
  • MOVE THE ADJUSTING BLOCK/SPRING ASSEMBLY UNTIL THE SPRING HITS THE SLIDING CAM.
  • TIGHTEN THE ADJUSTING SCREW.

SCREW DETAIL
QTY WOOD METAL
JAMB 4 #14 x 1-1/2" FLAT HEAD WOOD SCREW • 1/4-20 x 3/4" FLAT HEAD
MACHINE SCREW
DOOR 2 5/16-18 x 2" TRUSS HEAD MACHINE SCREW 1/2" DIA. SEX BOLT
3-1/2
3-1/8
3-1/8
1/4"
1-11/16
1 JAMB BRACKET 11/16
NOTES:
1. REVERSIBLE/ NON - HANDED
2. FOR SINGLE ACTING DOORS ONLY
3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
4. ALWAYS REQUEST LATEST TEMPLATE/ DRAWING ı

SPECIFY ANGLE JAMB BRACKET 90541

FOR FLUSH TRANSOM MOUNTING FRONT VIEW

2 1/2

  • ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES.
  • 6. DRAWING IS NOT TO SCALE
  • * BUTT HINGES ONLY

C PIVOT POINT

-B·

1-3/16

DOOR
THICKNESS 		MODEL FRAME
OPENING 		BUTT HINGE, 3/4" OFFSET
PIVOT & SWING CLEAR 		CENTER HUNG
NUMBER Α В С Α В С
1-3/4"
  • 9013RA
  • 9023RA
24" to 32" *
2-7/16 		*
5-3/16 		*
17-5/16 		1 1 -
THRU
2-1/4" 		• 9014RA
• 9024RA 		32-1/16" to 40" 5-1/2 7 20-1/16 6-11/16 6-7/16 20-1/16
  • 9015RA
  • 9025RA
40-1/16" to 48" 7-5/8 9-3/8 23-15/16 7-15/16 9-7/8 24

A:H
