9000AWT Series Template – Surface Mount, Heavy Duty, Adjustable for use with A110WT Wide throw hinge

Open the original PDF document

View PDF

9000A SERIES HOLDERS & STOPS SURFACE MOUNT WITH A110WT WIDE THROW

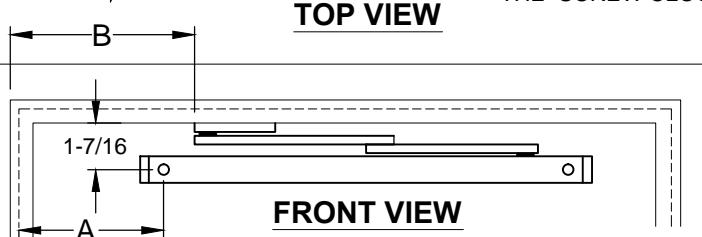

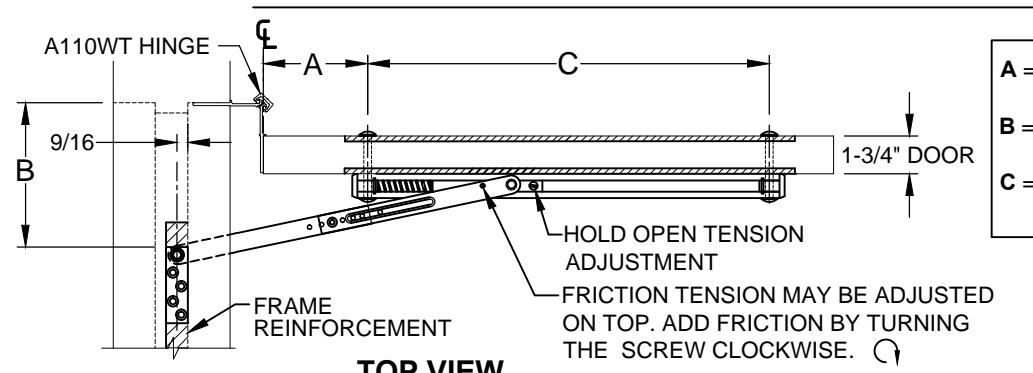

  • A = FROM HINGE EDGE OF DOOR TO © OF FIRST SEX BOLT.
  • B = FROM HINGE SIDE OF FRAME TO START OF JAMB BRACKET

SURFACE MOUNT

C = % OF FIRST SEX BOLT TO % OF SECOND SEX BOLT

3-1/2 3-1/8 2-5/16 1 1 1 1 1 1 1 1 1 1 1 1 1

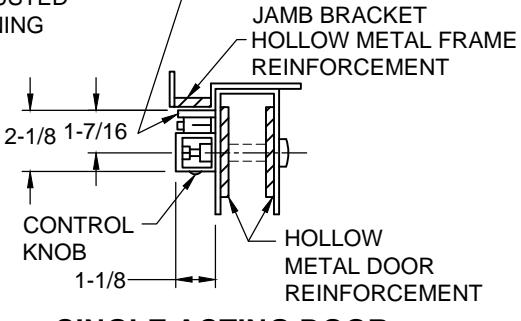

SINGLE ACTING DOOR

DOOR THICKNESS = 1-3/4"
MODEL
NO. 		DOOR
OPENING 		OPEN BETWEEN 80° TO 110°
SET FOR 95° H.O.
NO. OPENING Α В C
  • 9011A
  • 9021A
  • 9031A
28 TO
31-15/16 		1-15/16 6 20-15/16
  • 9012A
  • 9022A
  • 9032A
32 TO
39-15/16 		4-1/2 7-1/4 22-13/16
  • 9013A
  • 9023A
  • 9033A
40 TO
43-15/16 		10-3/16 9-1/8 25-5/8
  • 9014A
  • 9024A
  • 9034A
44 TO
54 		12-7/8 10 26-7/8

SCREW DETAIL

5/16-18 x 2" TRUSS HEAD MACHINE

WOOD

WOOD SCREW

1/2" DIA. SEX BOLT

■ #14 x 1-1/2" FLAT HEAD

TO CHANGE H.O. OR STOP DEGREE

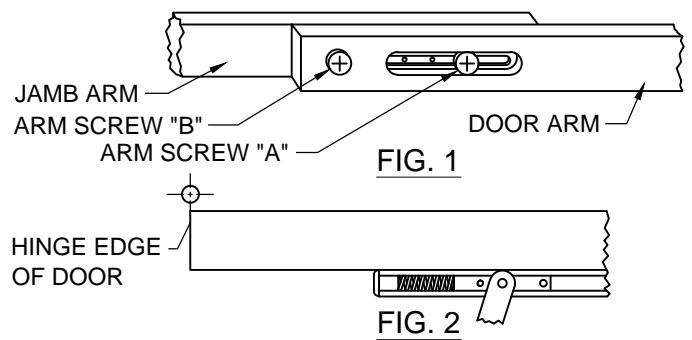

  • 1. LOOSEN "ARM SCREW A" IN SLOTTED SECTION. SEE FIG. 1. DO NOT REMOVE.
  • 2. REMOVE "ARM SCREW B" ONLY. SEE FIG. 1.
  • 3. OPEN DOOR TO DESIRED DEGREE.
  • 4. POSITION "SLIDE BLOCK (CAM)" AGAINST END OF RAIL CLOSEST TO HINGE EDGE OF DOOR. SEE FIG. 2.
  • 5. INSTALL "ARM SCREW B" IN ARM AND SECURE.
  • 6. TIGHTEN "ARM SCREW A" SECURELY.

CAUTION:

ARM SCREW "B" MUST BE INSTALLED AND BOTH SCREWS "A" AND "B" SECURED OR UNIT WILL FAIL TO HOLD POSITION NOTES:

  • 1. REVERSIBLE/ NON HANDED
  • 2. FOR SINGLE ACTING DOORS ONLY
  • 3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES.
  • DRAWING IS NOT TO SCALE.

9000AWT-01.DWG

QTY

4

JAMB

DOOR

® www.abhmfg.com

METAL

MACHINE SCREW

• 1/4-20 x 3/4" FLAT HEAD

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

9000A WITH A110 WIDE THROW HINGE

© 2016 ABH Mfg., Inc. printed in USA

PAGE 1 OF 1 REVISED 05-13-16
