9000ACL Series Template – Surface Mount, Heavy Duty, Adjustable for Cam Lift Hinges

Open the original PDF document

View PDF

9000ACL SERIES OVERHEAD HOLDERS & STOPS FOR CAM LIFT HINGES - MAX. 1/2" CAM LIFT

SURFACE MOUNT

HEAVY DUTY

ADJUSTABLE

9010ACL HOLD-OPEN 9020ACL STOP

ा

1-15/16

1-1/8-HOLLOW METAL

DOOR REINFORCEMENT

HOLLOW METAL DOOR

HOLLOW METAL FRAME

(3/16"THK. x 4" LONG MIN.)

REINFORCEMENT

SURFACE MOUNT

2-1/2

JAMB BRACKET

HOLLOW METAL FRAME

(3/16"THK. x 4" LONG MIN

REINFORCEMENT

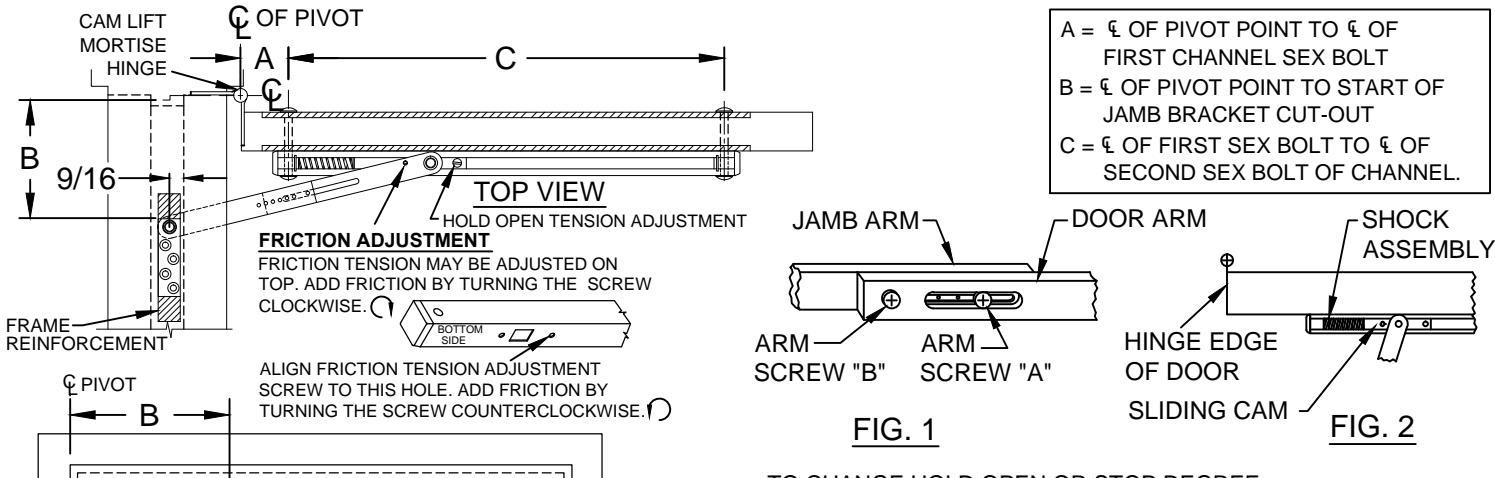

FRONT VIEW

●9030ACL FRICTION

TO CHANGE HOLD OPEN OR STOP DEGREE

  • 1. LOOSEN "ARM SCREW A" IN SLOTTED SECTION. SEE FIG. 1. DO NOT REMOVE.
  • 2. REMOVE "ARM SCREW B" ONLY, SEE FIG. 1.
  • OPEN DOOR TO DESIRED DEGREE.
  • POSITION "SLIDING CAM" AGAINST SHOCK ASSEMBLY. SEE FIG. 2.
  • 5. INSTALL "ARM SCREW B" IN ARM AND SECURE.
  • 6. TIGHTEN "ARM SCREW A" SECURELY.

CAUTION:

ARM SCREW "B" MUST BE INSTALLED AND BOTH SCREWS "A" AND "B" SECURED OR UNIT WILL FAIL TO HOLD POSITION

SCREW DETAIL
QTY WOOD METAL
JAMB 4 • #14 x 1-1/2" FLAT HEAD
WOOD SCREW 		1/4-20 x 3/4" FLAT HEAD
MACHINE SCREW
DOOR 2
  • 5/16-18 x 2" TRUSS HEAD MACHINE SCREW
  • 1/2 DIA. SEX BOLT
MODEL NO. DOOR FRAME SET FOR 95° H.O.
MODEL NO. OPENING Α В С
DOOR
THICKNESS
1-3/4" 		•9011ACL HOLDER
•9021ACL STOP
•9031ACL FRICTION 		28" TO 31-15/16" 2-1/4 6-3/4 20-15/16
TO
2-1/4" 		•9012ACL HOLDER
•9022ACL STOP
•9032ACL FRICTION 		32" TO 39-15/16" 5 7-3/4 22-13/16
CAM LIFT HINGES ½" MAX. LIFT •9013ACL HOLDER
•9023ACL STOP
•9033ACL FRICTION 		40" TO 43"-15/16" 10-5/8 9-5/8 25-5/8
•9014ACL HOLDER
•9024ACL STOP
•9034ACL FRICTION 		44" TO 54" 13-5/8 10-1/2 26-7/8

HOLD OPEN HOLD OPEN CONTROL KNOB CONTROL KNOB 1-1/8-WOOD DOOR В -3-1/8 2-5/16-1-11/16 ·5/16 11/16 JAMB BRACKET MUST BE MOUNTED WITH THIS END TOWARD HINGE EDGE OF DOOR

1-15/16

JAMB BRACKET

1-15/16

SURFACE MOUNT

2-1/2

JAMB BRACKET

  • NOTES:
  • 1. FOR SINGLE ACTING DOORS ONLY.
  • 2. REVERSIBI E/ NON-HANDED
  • 3. ALL DRILLING AND TAPPING TO BE DONE IN FIELD. 4. ALWAYS REQUEST LATEST TEMPLATE /
  • DRAWINGS FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES.
  • 6. DRAWING IS NOT TO SCALE.
  • 7. IF USED ON ACOUSTICAL DOORS, CONTACT DOOR MANUFACTURER FOR INFORMATION TO AVOID COMPROMISING THE INTEGRITY OF THE DOOR.

IANUFACTURING INC.

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PAGE 1 OF 1 REVISED 09-23-19

9000ACL-01.DWG

(c) 2019 ABH Mfg., Inc. printed in USA
