9000A SERIES OVERHEAD HOLDERS & STOPS

  • SURFACE MOUNT
  • ADJUSTABLE
  • 9010A HOLD-OPEN 9020A STOP
  • 9030A FRICTION

FRONT VIEW

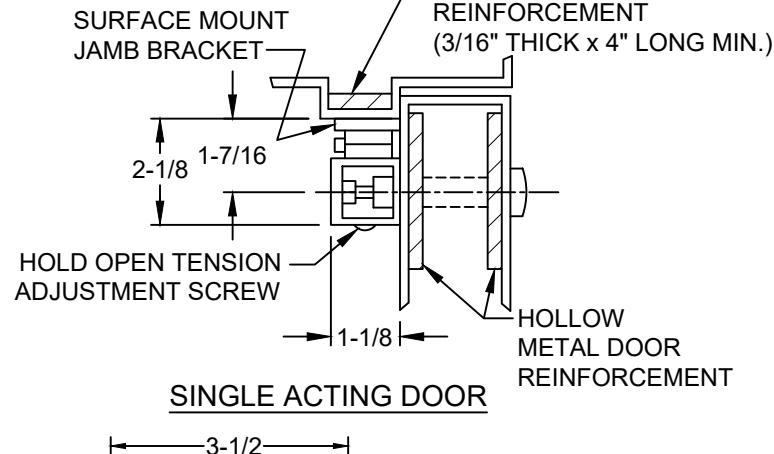

HOLLOW METAL FRAME

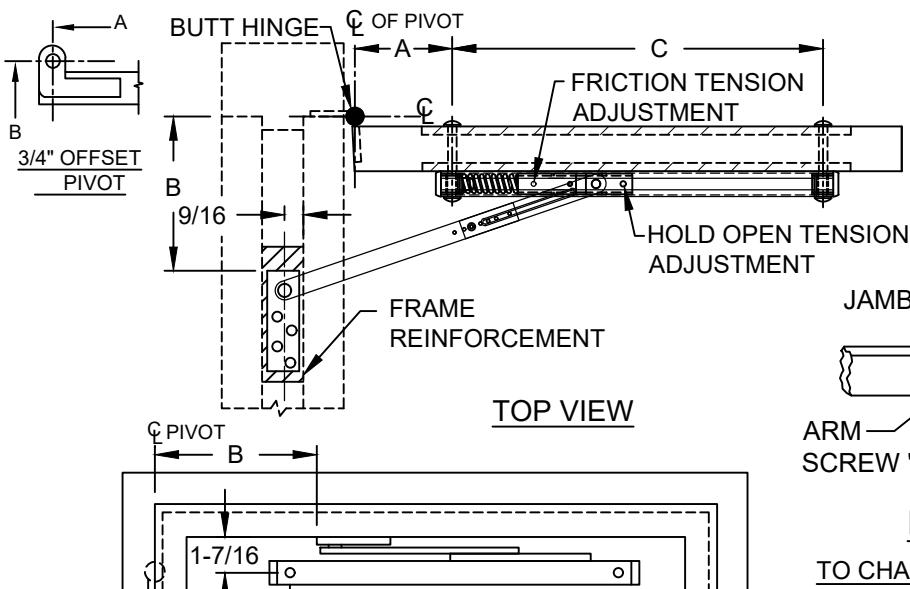

  • A = & OF PIVOT POINT TO & OF FIRST CHANNEL SEX BOLT
  • B = \( \) OF PIVOT POINT TO START OF JAMB BRACKET CUT-OUT
  • C = & OF FIRST SEX BOLT TO & OF SECOND SEX BOLT OF CHANNEL.

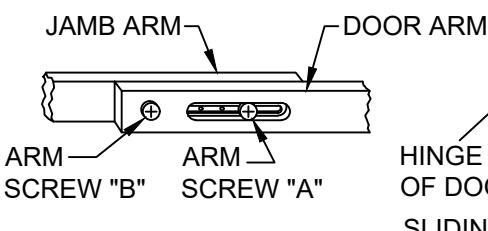

FIG. 1

TO CHANGE HOLD OPEN OR STOP DEGREE

  • 1. LOOSEN "ARM SCREW A" IN SLOTTED SECTION. SEE FIG. 1. DO NOT REMOVE.
  • 2. REMOVE "ARM SCREW B" ONLY. SEE FIG. 1.
  • 3. OPEN DOOR TO DESIRED DEGREE.

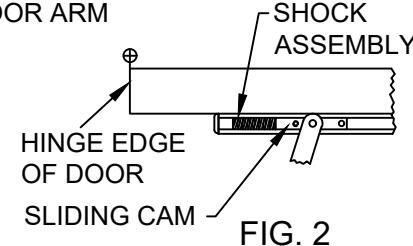

  • 4. POSITION "SLIDING CAM" AGAINST SHOCK ASSEMBLY. SEE FIG. 2.
  • 5. INSTALL "ARM SCREW B" IN ARM AND SECURE.
  • 6. TIGHTEN "ARM SCREW A" SECURELY.

CAUTION:

ARM SCREW "B" MUST BE INSTALLED AND BOTH SCREWS "A" AND "B" SECURED OR UNIT WILL FAIL TO HOLD POSITION

QTY WOOD METAL JAMB 4 * #14 x 1-1/2" FLAT HEAD * 1/4-20 x 3/4" FLAT HEAD MACHINE SCREW DOOR 2 * 5/16-18 x 2" TRUSS HEAD MACHINE SCREW 1/2 DIA. SEX BOLT ARM SCREW 2 * 10-32 x 3/8" PHILLIPS PAN HEAD MACHINE SCREW SCREW WITH NYLOCK SCREW DETAIL
DOOR 2 • 5/16-18 x 2" TRUSS HEAD MACHINE SCREW 1/2 DIA. SEX BOLT ARM SCREW 2 • 10-32 x 3/8" PHILLIPS PAN HEAD MACHINE SCREW WITH NYLOCK QTY WOOD METAL
DOOR 2 • 1/2 DIA. SEX BOLT ARM SCREW 2 • 10-32 x 3/8" PHILLIPS PAN HEAD MACHINE SCREW WITH NYLOCK JAMB 4 | "
SCREW 2 SCREW WITH NYLOCK DOOR ? | 2 |
(INSTALLED) W 2 SCREW WITH NYLOCK

3-1/8 \cdot 2 - 5/16 1-11/16 JAMB BRACKET

NOTES:

  • 1. FOR SINGLE ACTING DOORS ONLY.
  • 2. REVERSIBLE/ NON-HANDED
  • 3. ALL DRILLING AND TAPPING TO BE DONE IN FIELD.
  • 4. ALWAYS REQUEST LATEST TEMPLATE/ DRAWINGS FOR NEW INSTALLATIONS
  • 5. ALL DIMENSIONS ARE IN INCHES.
  • 6. DRAWING IS NOT TO SCALE.

MODEL NO. DOOR FRAME SET FOR 95° H.O.
WODEL NO. OPENING Α В С
1-3/
S'
BU 		DOOR
THICKNESS
1-3/4" TO 2-1/4"
  • 9011A HOLDER
  • 9021A STOP
  • 9031A FRICTION
28" TO 31-15/16" 2-1/4 6-3/4 20-15/16
STANDARD
BUTT HINGES
  • 9012A HOLDER
  • 9022A STOP
  • 9032A FRICTION
32" TO 39-15/16" 5 7-3/4 22-13/16
&
3/4"
OFFSET PIVOTS
  • 9013A HOLDER
  • 9023A STOP
  • 9033A FRICTION
40" TO 43"-15/16" 10-5/8 9-5/8 25-5/8
  • 9014A HOLDER
  • 9024A STOP
  • 9034A FRICTION
44" TO 54" 13-5/8 10-1/2 26-7/8

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2021 ABH Mfg., Inc.

9000A-02.DWG

PAGE 1 OF 1 ISSUED 05-07-21 printed in USA
