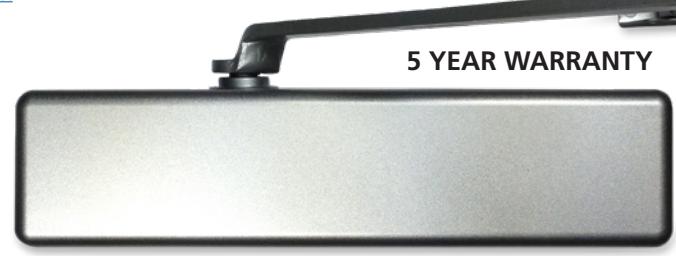

ADJUSTABLE SPRING POWER - SURFACE GRADE 1 CLOSER
9000-TP SERIES
GRADE 1 • ADA HANDICAP
FEATURES
- • Model 9001-TP : Adjustable spring power (1-6) Opening Force with adjustable back check and delayed action controlled by a separate regulating valve.
- ADA (Handicap) multi-sized closer with adjustable Spring Power for a range of sizes adjustable after installation.
- Two Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
- Universal Application: Non handed for standard, top jamb or parallel arm installation (parallel arm bracket included).
- Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
- Stable hydraulic door check fluid for any climatic operation and constant lubrication.
- Furnished with a high impact molded PVC Dress Cover (door closer body casting is finished for use without the dress cover).
- Optional hold-open arms available.
- Hold-open arms are adjustable for holding from 90° to 180°

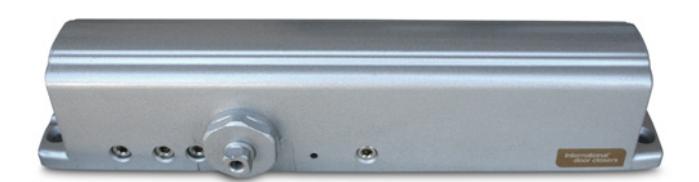

• Adjustment Valves
FINISHES
- AL Aluminum
- DU Storefront Bronze

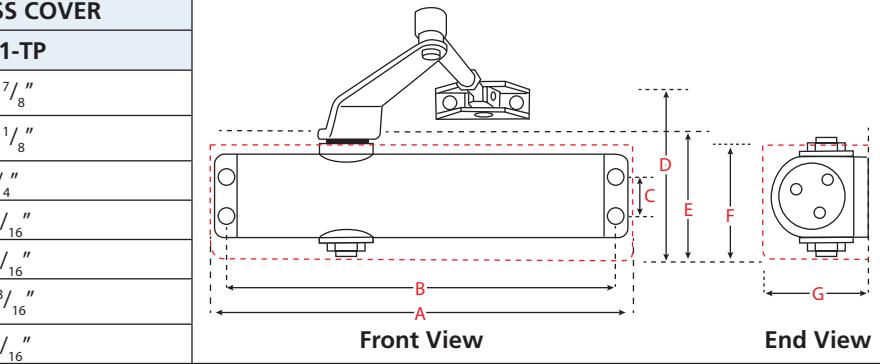

TECHNICAL DIMENSIONS
| NO DRESS COVER | ||||
|---|---|---|---|---|
| Description | 9001-TP | |||
| A. Length of Closer Body |
11 7
/8 " |
|||
| B. Horizontal Mounting Holes |
11 1
/8 " |
|||
| C. Vertical Mounting Holes |
3
/4 " |
|||
| D. Overall Height |
4 9
/16" |
|||
| E. Top of Door to Bottom of Closer |
3 5
/16" |
|||
| F. Closer Body Height | 2 13/16" | |||
| G. Projection from Door | 2 9 | |||
International Door Closers, Inc.
West: 800-544-4422 • East: 800-225-6737
INSTALLATION TYPES
SELECTION CHART

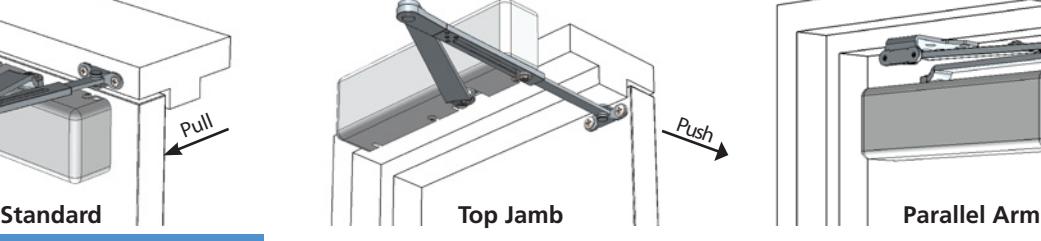

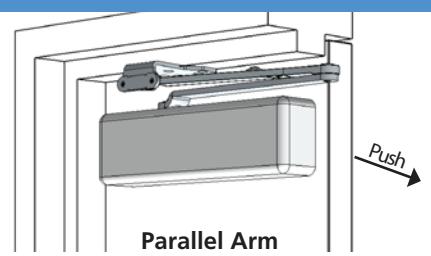

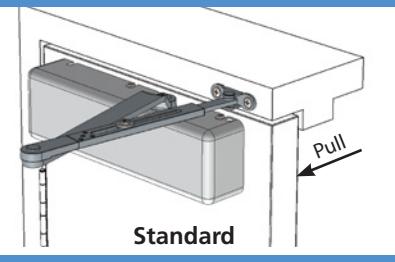

TYPICAL INSTALLATIONS (REGULAR ARMS SHOWN) Hold-Open Arms are similar
| MODEL NO. | TYPE | ||
|---|---|---|---|
| Back-Check / Delayed Action | |||
| 9001-TP | Regular Arm | ||
PARTS AND ACCESSORIES - 9001-TP (PAINTED FINISH ONLY)
| Parts | Description | Part # | |
|---|---|---|---|
| Complete Arm Assembly | 901 | ||
| Hold-Open Forearm | 522 | ||
| Top Jamb Forearm Extender | 514 | ||
| Parallel Bracket for Regular Arm | 525 | ||
| Flat Drop Bracket | 9007 | ||
| Top Jamb Bracket | TJB-9000 | ||
| Thru Bolt & Gromnet Nut (Set of 4) | TBGN-50 | ||
| Sex Nuts & Bolts | 18-SN | ||
