Overhead Holders & Stops

9000 Series Surface Mount, Heavy Duty

(see page B-5 for details)

• • THICK – Fasteners for doors other than 1-¾" to 2 -¼" thick – Specify door thickness
• • SEC Security fasteners
• • AJB 90541 Angle jamb bracket for pull side mount or push side
• • LL For lead-lined door applications
• • LS Less shock-absorbing spring for special applications
• • N All stainless steel (non-ferrous) components for wet environments to prevent corrosion
• • T Threaded pivot screw and nylon washer to replace jamb bracket
• HC Hold Closed
• • CL For use with cam lift hinges
• • SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
• If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

Material

• Stainless steel is the standard base material for arm, channel

Specify When Ordering

• Model Number
• Finish
• Option(s), if applicable

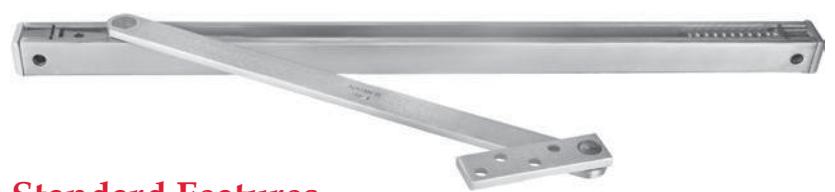

Standard Features

• Surface mount
• Heavy duty
• Stop, hold-open and friction functions available
• Single acting doors only
• Non-handed
• weight doors
• Standard installation from 85° to 110° of opening (5° increments)
• Shock absorbing spring provides 3° to 5° cushion before dead-stop
• Standard fasteners supplied with sex bolts for 1-¾"to 2-¼" thick door (see options for other door thicknesses)
• UL Listed as Miscellaneous Fire Door Accessories for use on rated up to 3 hours (stop function only)
• Average weight per unit = 5 lbs.

Door Frame Opening		Model Number
Hinges, Swing Clear or Offset Pivots	Center Hung	Hold Open	Stop	Friction
24" - 27-	26" - 29-	9018	9028	9038
28" - 29-	30" - 33-	9011	9021	9031
30" - 31-	34" - 35-	9012	9022	9032
32" - 35-	36" - 38-	9013	9023	9033
36" - 39-	39" - 40-	9014	9024	9034
40" - 41-	41" - 44-	9015	9025	9035
42" - 43-	45" - 46-	9016	9026	9036
44" - 54"	47" - 56"	9017	9027	9037
ANSI Code		C02511	C02541	C02531
