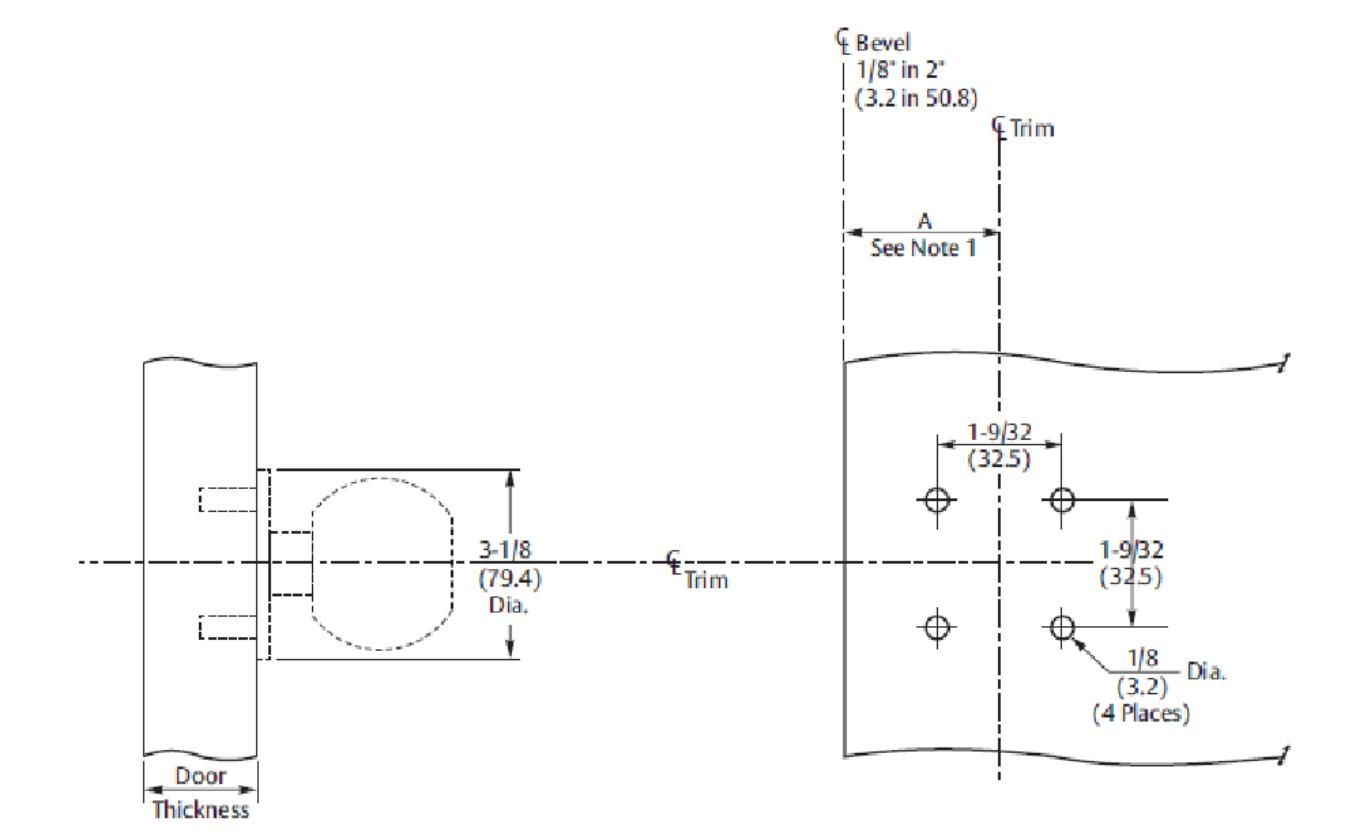

8x Grade 1 Dummy Trim Wood or Metal Door Preparation

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• Door prep with 2-3/4" (70) backset meets ANSI/BHMA A156.115 standards for steel doors and ANSI/BHMA A156.115W standards for wood doors.
• 3. Dimensions given in inches and (mm).

Backset Dim. "A"
2-3/4(69.9)	Regular
2-3/8(60.3)	Optional

8X Line Grade 1 Knob Locks Dummy Trim Wood or Metal Door Preparation (See ANSI/BHMA A156.115)

SARGENT

ASSA ABLOY

www.sargentlock.com

TEMPLATE NUMBER

4733 A

03-16
