INSTRUCTIONS FOR INSTALLING WS8900 & 12-WS8900 SERIES MORTISE LOCK TYPE EXIT DEVICE

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

CAUTION: BEFORE STARTING

• • CHECK HAND OF DOOR (THIS EXIT DEVICE IS HANDED AND NOT REVERSIBLE).
• • DOOR SHOULD BE FITTED AND HUNG.
• • CHECK BOX LABEL FOR SIZE OF EXIT DEVICE, FUNCTION AND HAND.

U.S. PATENT NO. 268003 CANADIAN PATENT RD 1981

AVAILABLE STOCK LENGTHS

Length "E": 32" door, no cut off required.

Can be cut to fit doors down

to 24" wide.

Length "F": 36" door, no cut off required. Can be cut to fit doors down

to 33" wide.

Length "J": 42" door, no cut off required.

Can be cut to fit doors down

to 37" wide.

Length "G": 48" door, no cut off required.

Can be cut to fit doors down to 43" wide.

THIRD APPLY HARDWARE

ATTACH OUTSIDE TRIM AND CYLINDER, IF USED.

AFTER INSTALLING CYLINDER, TIGHTEN CYLINDER SET SCREW IN LOCK FRONT.

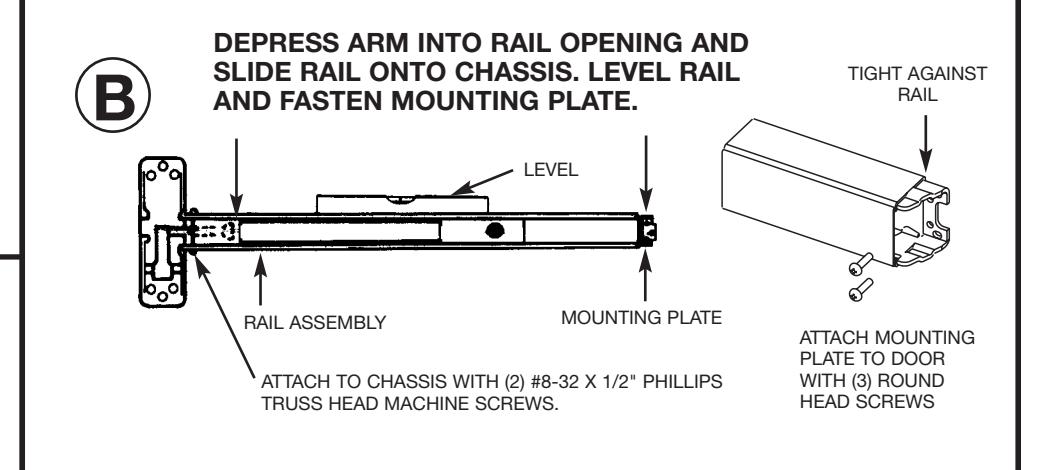

FOURTH APPLY RAIL ASSEMBLY

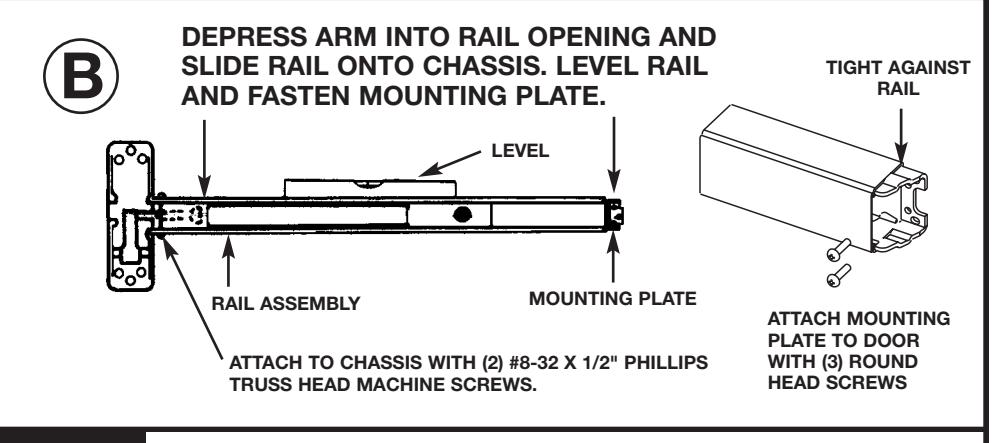

• CHECK BOX LABEL. IF CUTTING IS NOT REQUIRED, PROCEED TO STEP "B".
• IF CUTTING IS REQUIRED, CONTINUE WITH STEP "A".

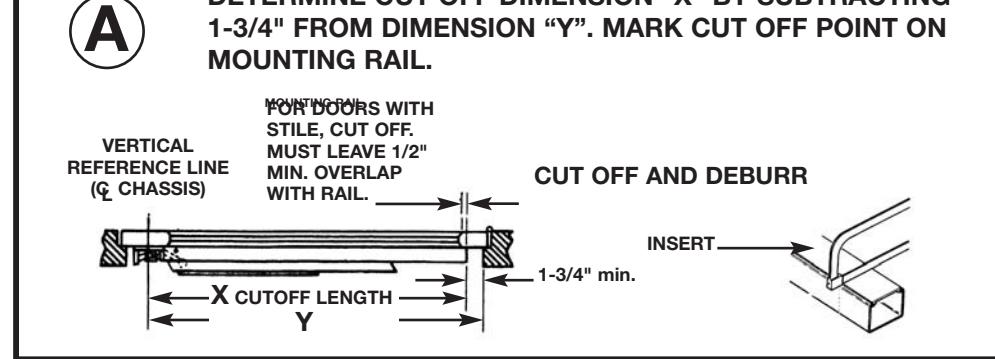

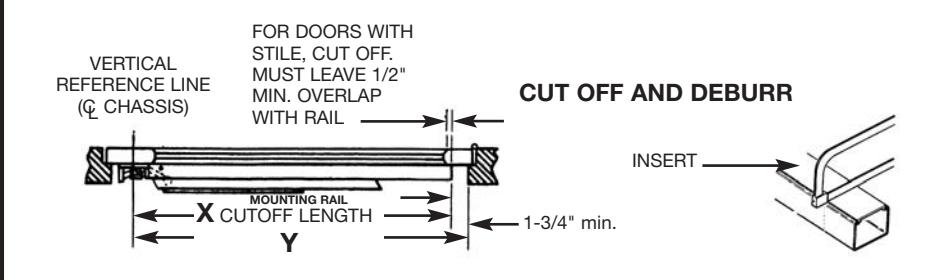

DETERMINE CUT OFF DIMENSION "X" BY SUBTRACTING 1-3/4" FROM DIMENSION "Y". MARK CUT OFF POINT ON A MOUNTING RAIL.

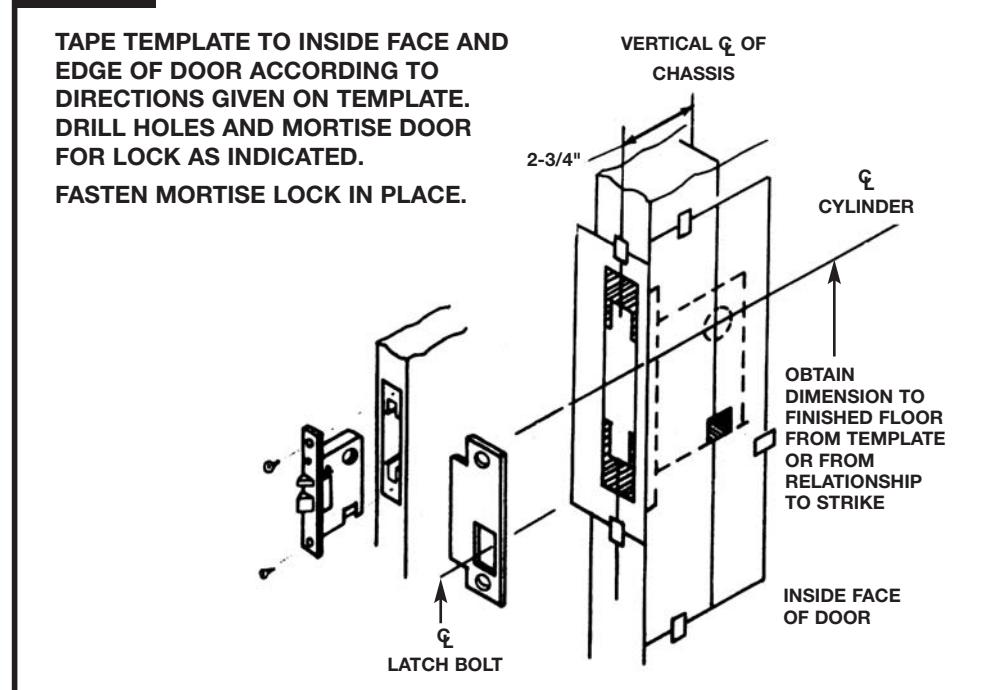

FIRST PREPARE DOOR AND MOUNT LOCK

SECOND ATTACH CHASSIS TO DOOR

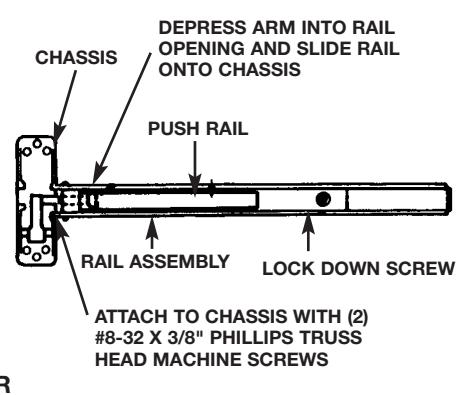

A. TEMPORARILY ATTACH CHASSIS TO RAIL, THEN LOCK PUSH RAIL DOWN USING HEX OR CYLINDER KEY OR HOLDING PUSH RAIL IN DEPRESSED POSITION ON 12-8900 EXIT DEVICE (REFER TO EXPLODED VIEW AT TOP OF PAGE).

NOTE: IF CUTTING OF RAIL WILL BE REQUIRED, IT MAY BE DESIRED TO PROCEED TO STEP 4A PRIOR TO THE TEMPORARY ASSEMBLY OF CHASSIS AND RAIL.

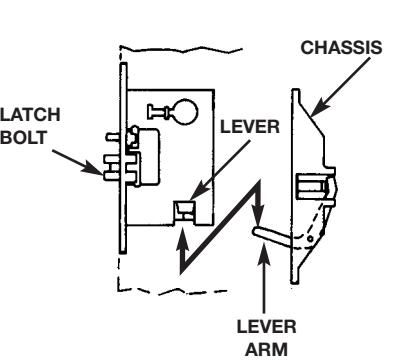

B. POSITION CHASSIS AND RAIL ON DOOR SO THAT LEVER ARM IS UNDER REAR SECTION OF MORTISE LOCK LEVER. THEN LIFT UP UNTIL LATCH BOLT IS COMPLETELY RETRACTED.

WITH CHASSIS IN THIS POSITION AND RAIL HORIZONTAL, MARK LOCATION OF CHASSIS MOUNTING HOLES. DRILL HOLES FOR SCREWS.

C. RELEASE PUSH RAIL AND DISASSEMBLE CHASSIS FROM RAIL. THEN MOUNT CHASSIS ON DOOR.

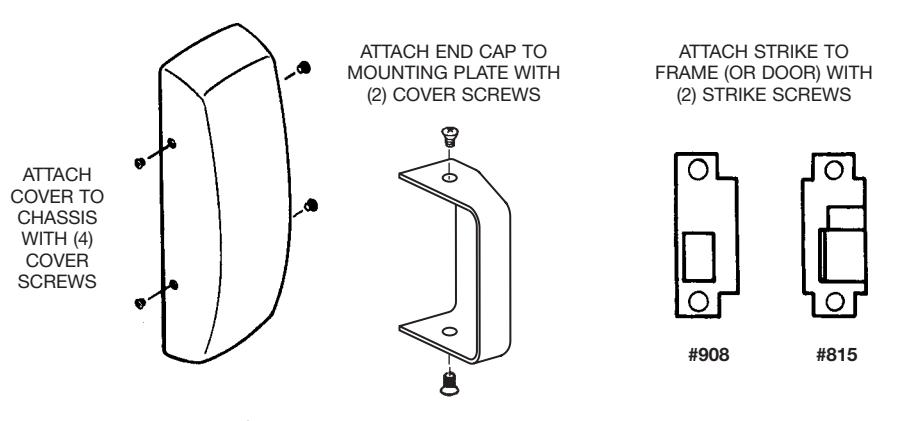

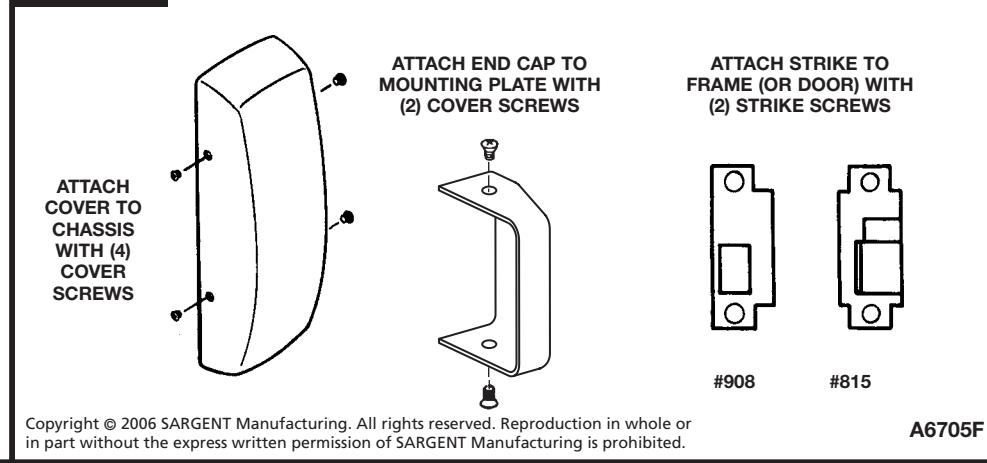

FIFTH APPLY COVERS AND STRIKE

Copyright © 2006 SARGENT Manufacturing. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing is prohibited.

A6705F

INSTRUCTIONS FOR INSTALLING 8900 & 12-8900 SERIES MORTISE LOCK TYPE EXIT DEVICE

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

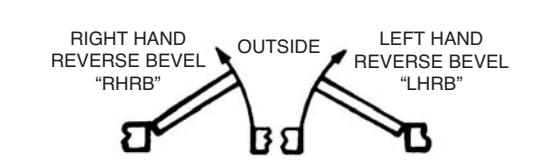

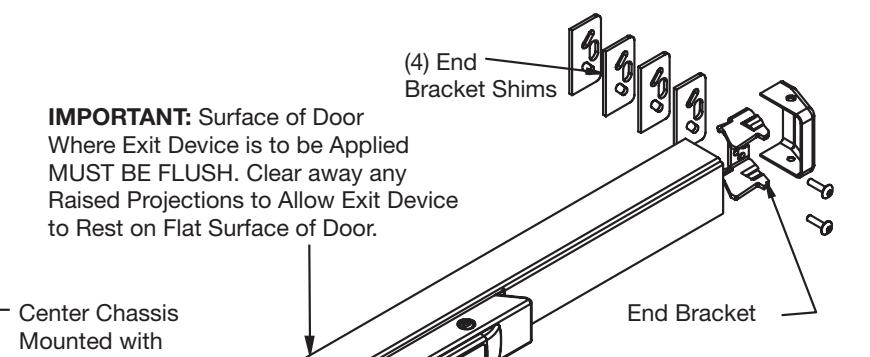

RIGHT HAND REVERSE BEVEL "RHRB" LEFT HAND REVERSE BEVEL "LHRB" OUTSIDE IMPORTANT: SURFACE OF DOOR WHERE EXIT DEVICE IS TO BE APPLIED MUST BE FLUSH. CLEAR AWAY ANY RAISED PROJECTIONS TO ALLOW EXIT DEVICE TO REST ON FLAT SURFACE OF DOOR. "LOCK DOWN KEY" TO OPERATE: DEPRESS PUSHRAIL. INSERT HEX KEY (OR CYLINDER KEY WHEN USED) AND TURN CLOCKWISE. (NOT FURNISHED WITH 12-8900 EXIT DEVICE) New Style Mounting Plate Standard End Cap (metal) TOUCH BAR RAIL ASSEMBLY ARM COVER CHASSIS THIRD APPLY HARDWARE ATTACH OUTSIDE TRIM AND CYLINDER, IF USED. 1/8" to 1/4" THUMB PIECE CAUTION: BEFORE STARTING • CHECK HAND OF DOOR (THIS EXIT DEVICE IS HANDED AND NOT REVERSIBLE). • DOOR SHOULD BE FITTED AND HUNG. • CHECK BOX LABEL FOR SIZE OF EXIT DEVICE, FUNCTION AND HAND. AVAILABLE STOCK LENGTHS Length "E": 32" door, no cut off required. Can be cut to fit doors down to 24" wide. Length "F": 36" door, no cut off required. Can be cut to fit doors down to 33" wide. Length "J": 42" door, no cut off required. Can be cut to fit doors down to 37" wide. Length "G": 48" door, no cut off required. Can be cut to fit doors down to 43" wide. U.S. PATENT NO. 268003 CANADIAN PATENT RD 1981

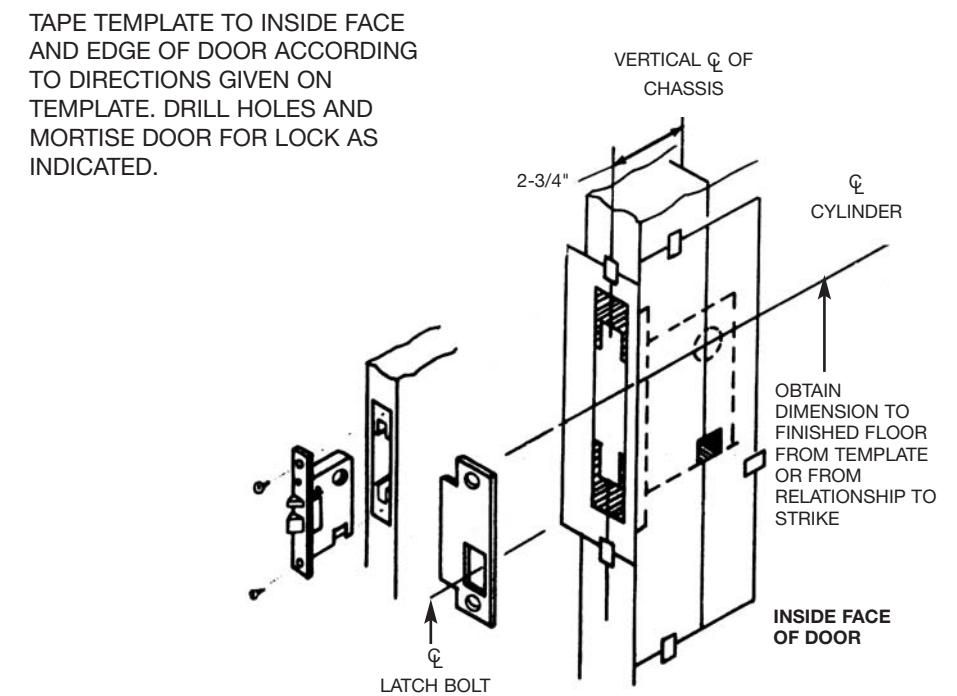

FIRST PREPARE DOOR AND MOUNT LOCK

SECOND ATTACH CHASSIS TO DOOR

A. TEMPORARILY ATTACH CHASSIS TO RAIL. THEN LOCK PUSH RAIL DOWN USING HEX OR CYLINDER KEY OR HOLDING PUSH RAIL IN DEPRESSED POSITION ON 12-8900 EXIT DEVICE. (REFER TO EXPLODED VIEW AT TOP OF PAGE).

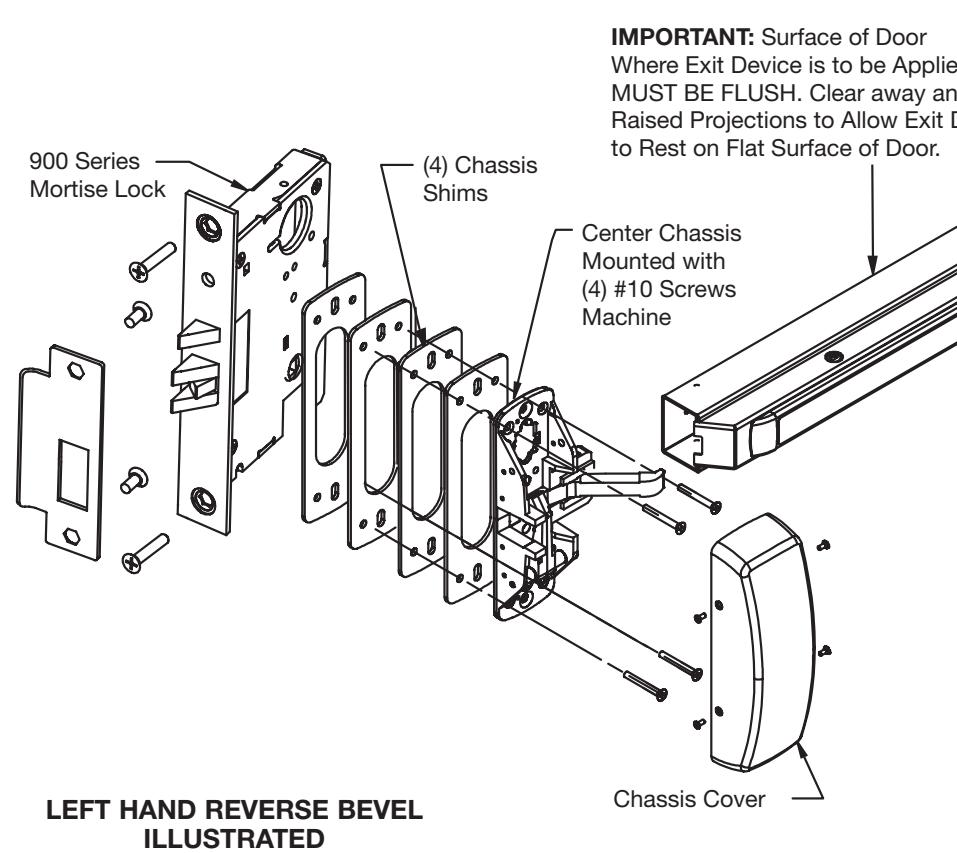

LEFT HAND REVERSE BEVEL ILLUSTRATED

NOTE: IF CUTTING OF RAIL WILL BE REQUIRED, IT MAY BE DESIRED TO PROCEED TO STEP 4A PRIOR TO THE TEMPORARY ASSEMBLY OF CHASSIS AND RAIL.

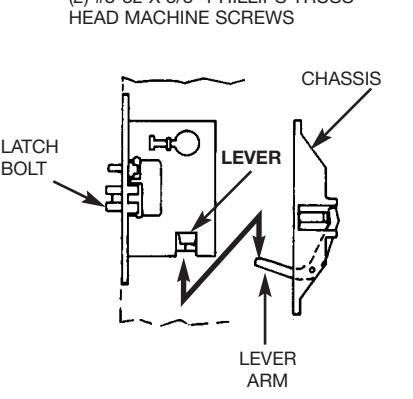

B. POSITION CHASSIS AND RAIL ON DOOR SO THAT LEVER ARM IS UNDER REAR SECTION OF MORTISE LOCK LEVER. THEN LIFT UP UNTIL LATCH BOLT IS COMPLETELY RETRACTED.

WITH CHASSIS IN THIS POSITION AND RAIL HORIZONTAL, MARK LOCATION OF CHASSIS MOUNTING HOLES. DRILL HOLES FOR SCREWS.

C. RELEASE PUSH RAIL AND DISASSEMBLE CHASSIS FROM RAIL. THEN MOUNT CHASSIS ON DOOR.

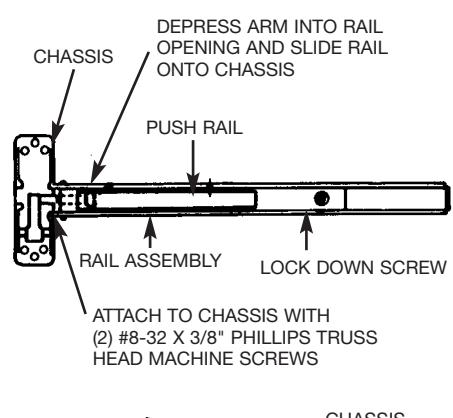

FOURTH APPLY RAIL ASSEMBLY

AFTER INSTALLING CYLINDER, TIGHTEN CYLINDER SET SCREW

IN LOCK FRONT.

• CHECK BOX LABEL. IF CUTTING IS NOT REQUIRED PROCEED TO STEP "B".

DETERMINE CUT OFF DIMENSION "X" BY SUBTRACTING

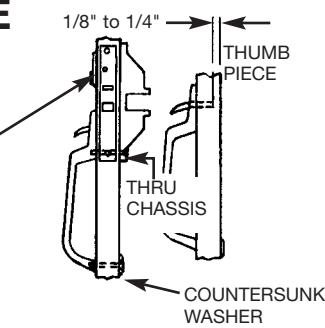

THRU CHASSIS

COUNTERSUNK WASHER

• IF CUTTING IS REQUIRED, CONTINUE WITH STEP "A".
