8895 Active (Dummy) Exit Device

• IS TO BE APPLIED, MUST BE FLUSH.
• OLOCATE , DRILL AND TAP HOLES WHEN APPLYING HARDWARE TO DOORS.
• ·TOLERANCE ON ALL FRACTIONAL DIMENSIONS ± . 1/64'.

SARGENT & COMPANY

NEW HAVEN, CONN. 06511

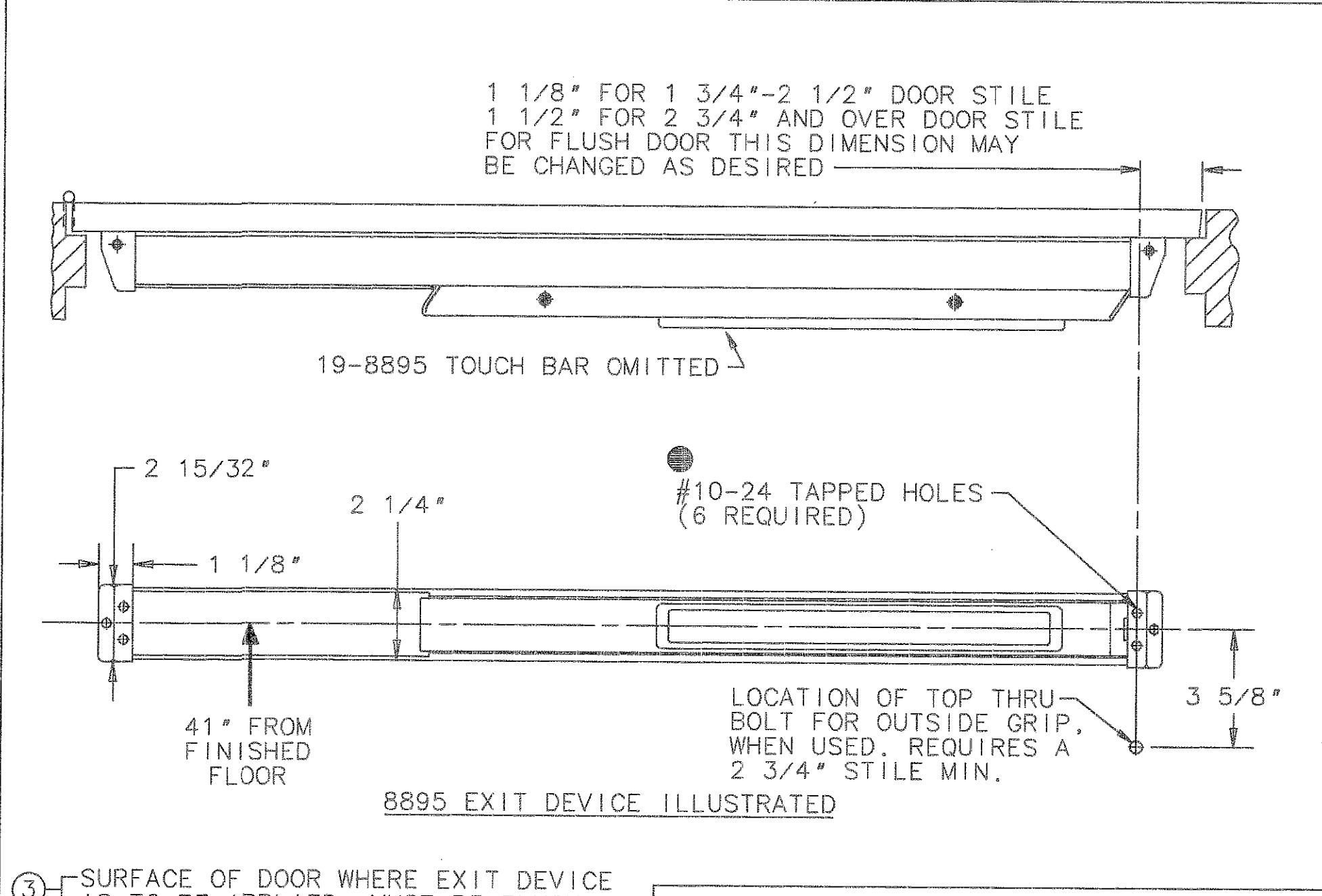

METAL DOOR TEMPLATE: 8895 EXIT DEVICE (ACTIVE TRIM)

RELEASE DATE 13JUN 97

TEMPLET NO. 4466A
