8893 Exit Device Inactive Trim Installation Instructions
Open the original PDF document
View PDFINSTALLATION INSTRUCTIONS 8893 Exit Device Inactive Trim
FOR ASSISTANCE CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

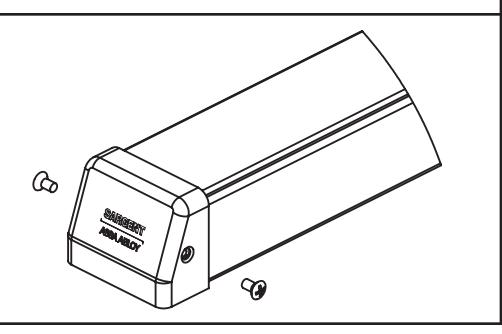

4 ATTACH END CAPS TO MOUNTING PLATES WITH COVER SCREWS
Copyright © 2009, 2012 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

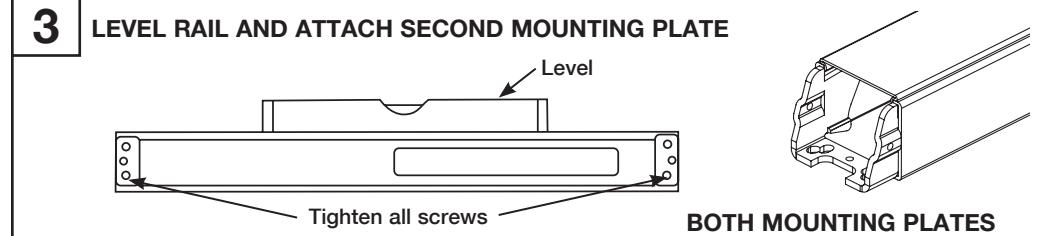

TIGHT AGAINST INSERT

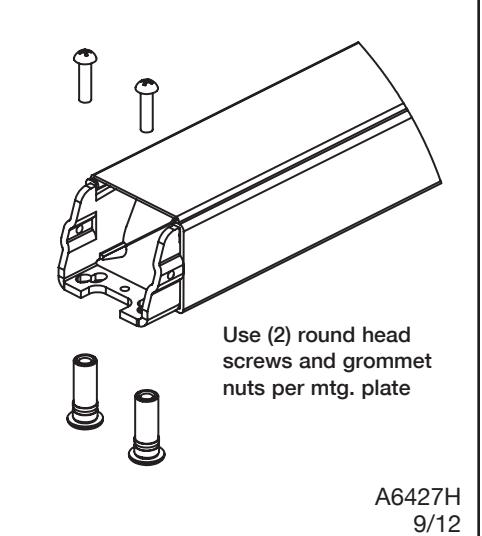

THRU-BOLTING APPLICATION
