8888 Exit Device with 700-8 ET Control Application Instructions

INSTRUCTIONS FOR APPLYING THE SARGENT 8888 EXIT DEVICE WITH 700-8 ET CONTROL ON STOCK HOLLOW-METAL DOOR WITH 160 OR 161 CUT-OUT

TO MOUNT EXIT DEVICE WITH ET CONTROL ON THE DOOR:

• PREPARE DOOR TO TEMPLATE(S) AND INSTRUCTION SHEET(S) FURNISHED WITH EXIT DEVICE AND ET LEVER HANDLE CONTROL.

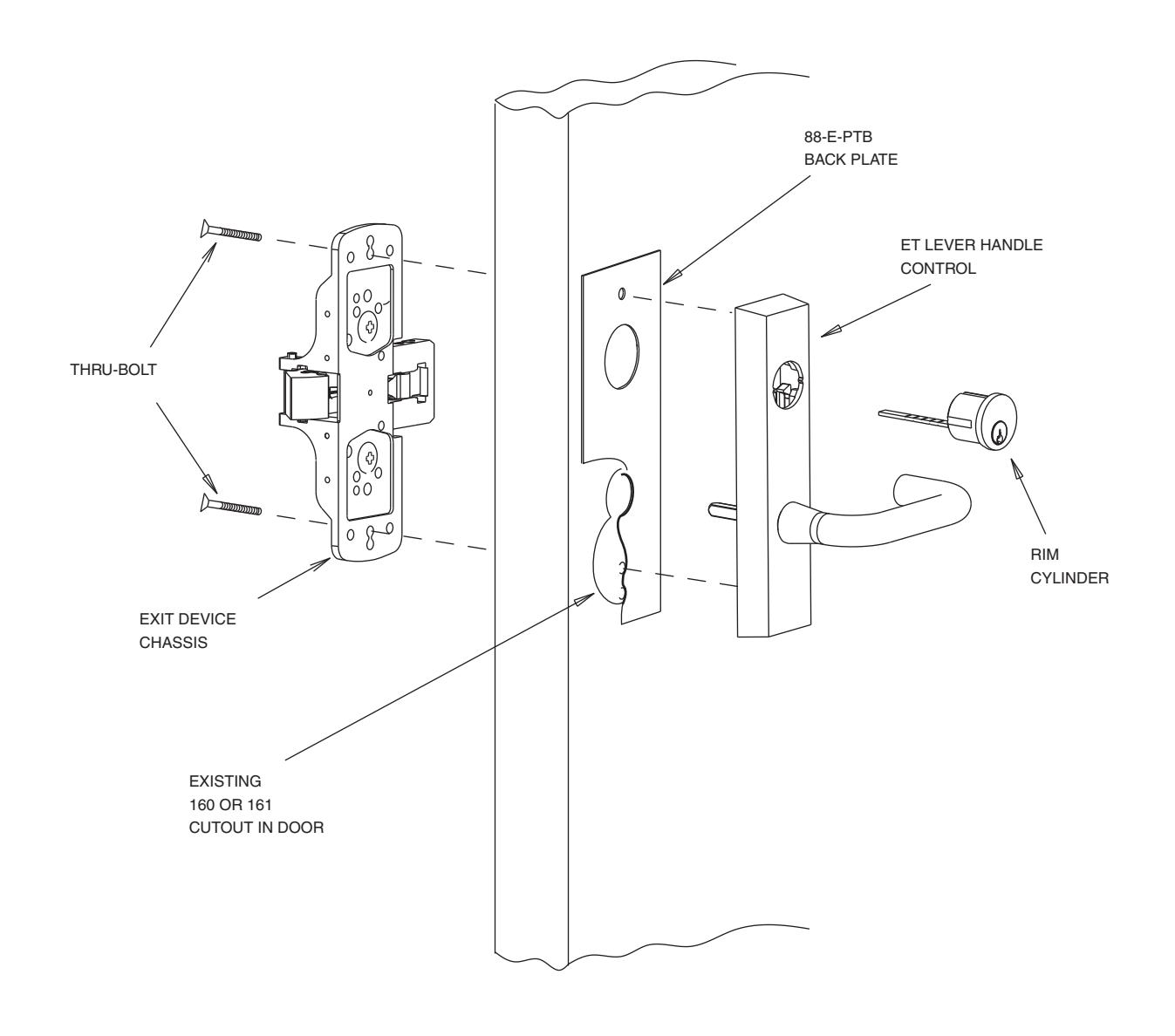

• 2. PLACE 88-E-PTB BACK PLATE UNDER THE LEVER HANDLE CONTROL AND THRU-BOLT THE LEVER HANDLE CONTROL TO THE EXIT DEVICE CHASSIS.
• 3. REFER TO EXIT DEVICE INSTRUCTION SHEET TO COMPLETE THE INSTALLATION.
