88305 REV0 EMR LH LHR Templates
Open the original PDF document
View PDF
Tellcard Systems144 Newport RdLeola, PA 17540855-200-2611www.tellcardsys.com

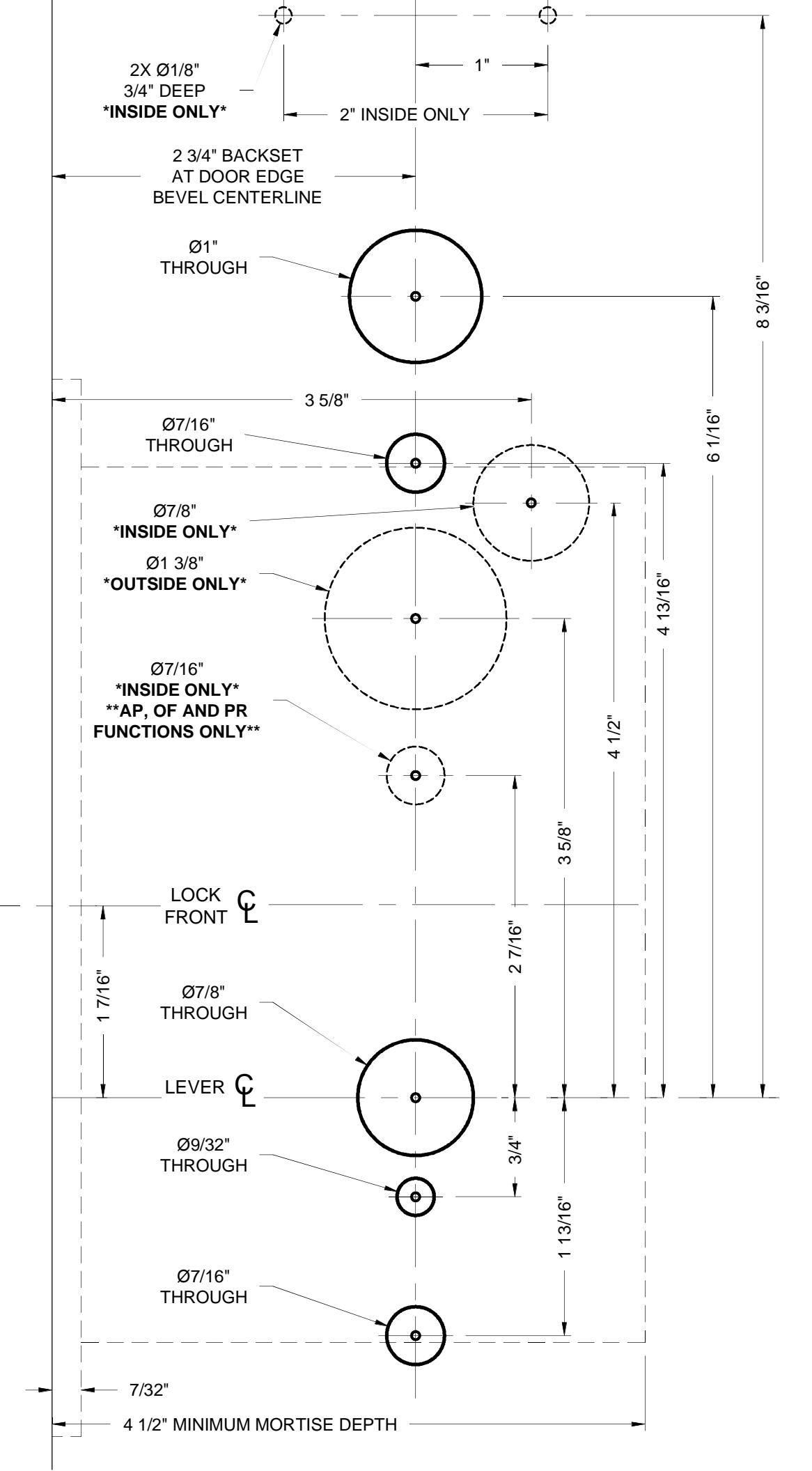

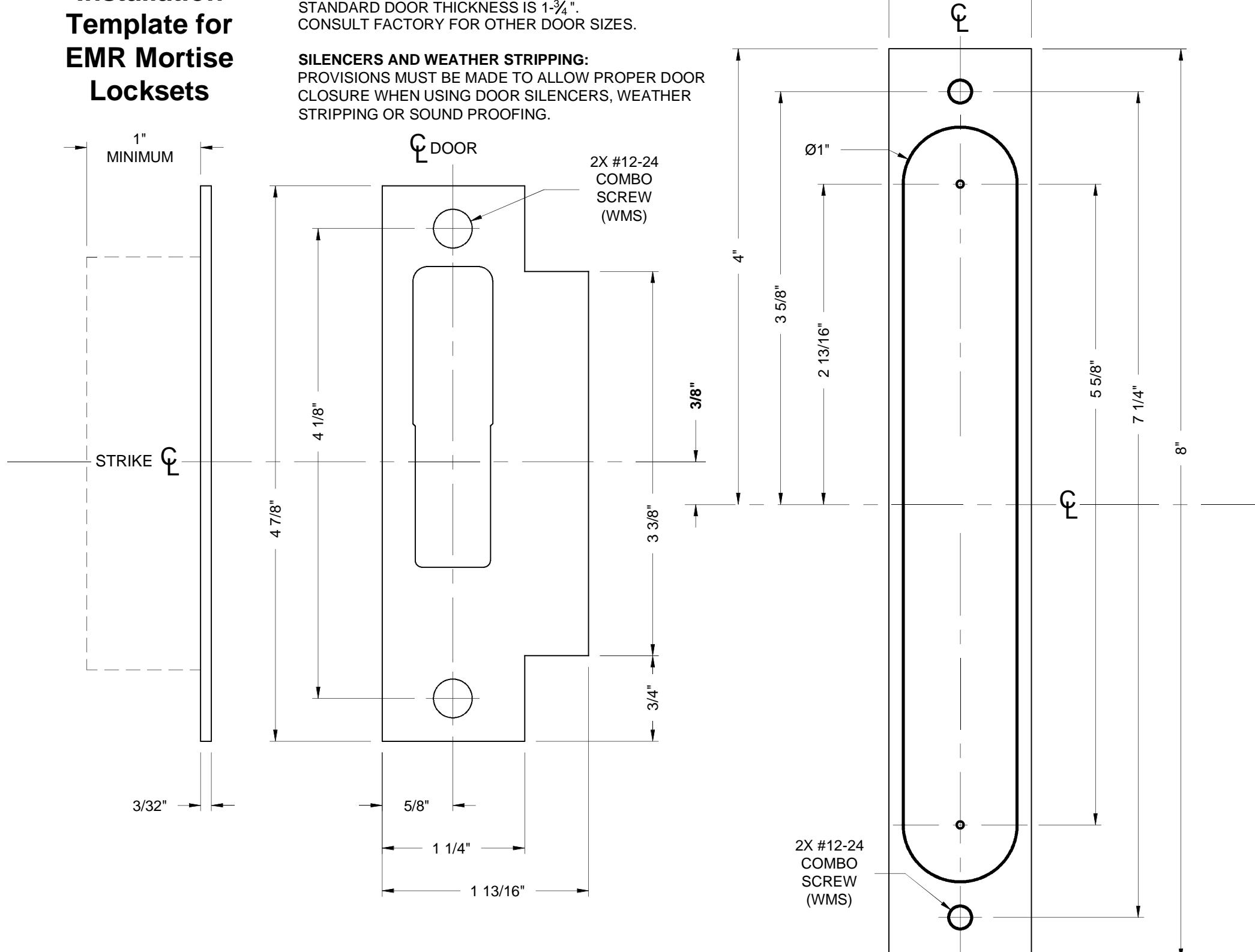

THIS SIDE OF TEMPLATE FOR INSIDE OF LH/LHR DOORS
1 1/4"
88305 REV0
ANSI STANDARD:
EMR SERIES MORTISE LOCKS ARE INSTALLED FOLLOWING THE DOOR AND FRAME REQUIREMENTS FOUND IN ANSI/BHMA A156.13-2002.
DOORS:
REINFORCEMENT IS REQUIRED PER ANSI A115.1-1991.
Installation
DOOR THICKNESS:
