858 Series Padlock Parts List
Open the original PDF document
View PDF

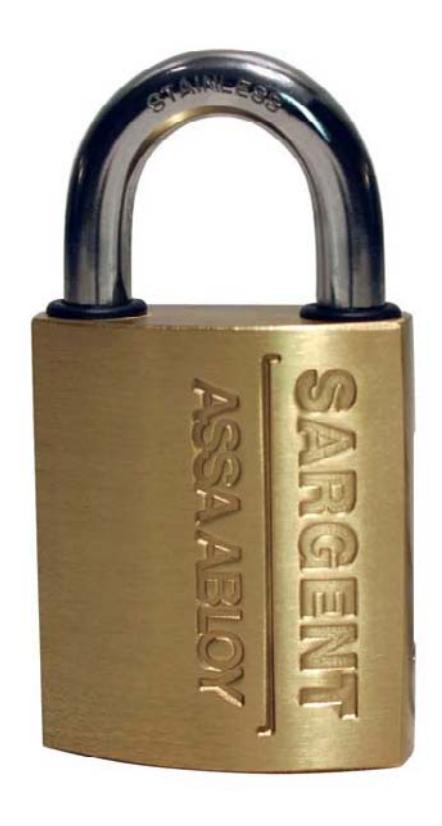

858 Padlock Parts Manual

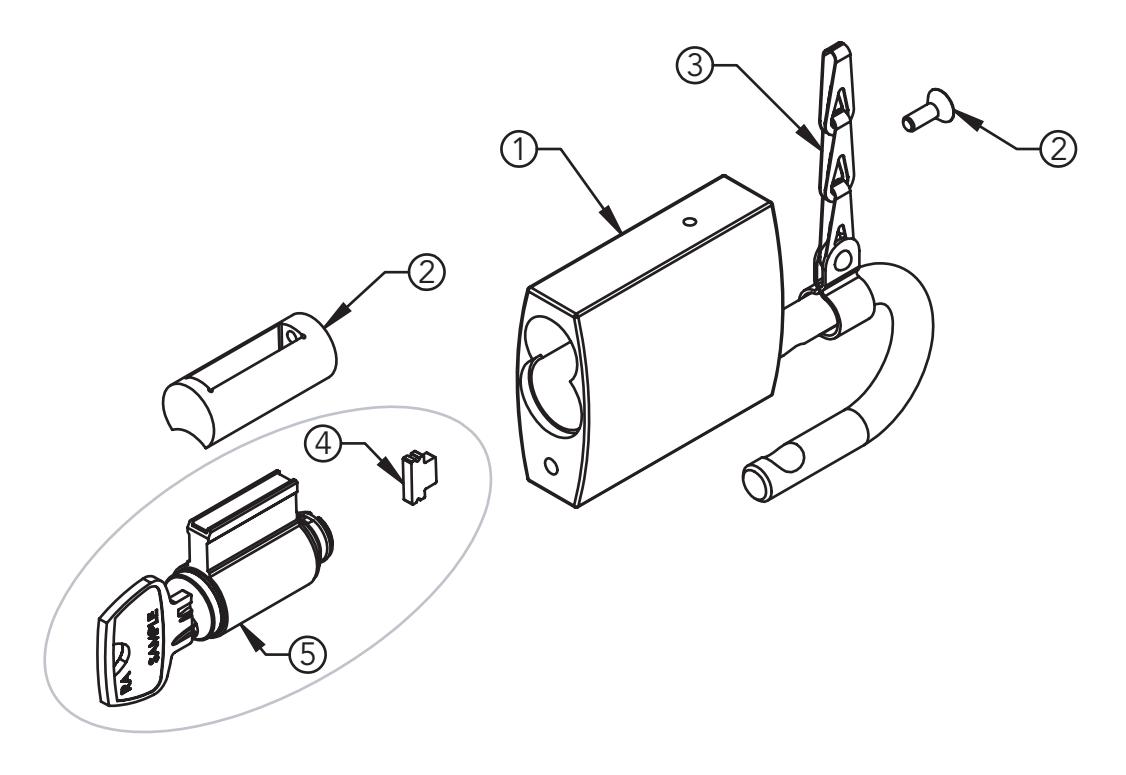

Padlock shown with standard cylinder, 1" shackle and with optional 9 inch chain
| Item # | Part No. | Description |
|---|---|---|
| 1 | 858 | Padlock body with 1" Stainless Steel shackle |
| 1 | 858-2 | Padlock body with 2" Stainless Steel shackle |
| 1 | 858-4 | Padlock body with 4" Stainless Steel shackle |
| 1 | 858HS | Padlock body with 1" Hardened Steel shackle |
| 1 | 858HS-2 | Padlock body with 2" Hardened Steel shackle |
| 1 | 858HS-4 | Padlock body with 4" Hardened Steel shackle |
| 2 | 17-2633 | Cylinder Retainer & Screw pack |
| 3 | 17-2006 | 9 inch chain (C Suffix when ordering complete padlock) optional |
| 4 | 13-1230 | Tail piece only for standard cylinder, 10-, 11-, and 21- cylinders |
| 5 | C750-1 | Standard 6-pin cylinder & tail piece assy. w/ 2 nickel silver keys |
| 5 | 21-C750-1 | Standard 6-pin cylinder & tail piece, construction keying (21- lost ball) |
| 5 | 10-C750-1 | Standard 6-pin cylinder & tail piece, Signature Feature (10-) |
| 5 | 10-21-C750-1 | Standard 6-pin cylinder & tail piece, construction keying Signature (10-21-) |
| 5 | 11-C750-1 | Standard 6-pin cylinder & tail piece, XC Feature (11-) |
| 5 | SC-C750-1 | Standard 6-pin cylinder & tail piece with Schlage C keyway (SC) |
| 5 | SE-C750-1 | Standard 6-pin cylinder & tail piece with Schlage E keyway (SE) |
Note: All cylinders provided in US 4 finish and include 2 keys as standard. For keyed cylinders provide Key System registration number and key sets.
For optional cylinders with the padlock use one of the prefixes 10-, 11-,21, SC,SE

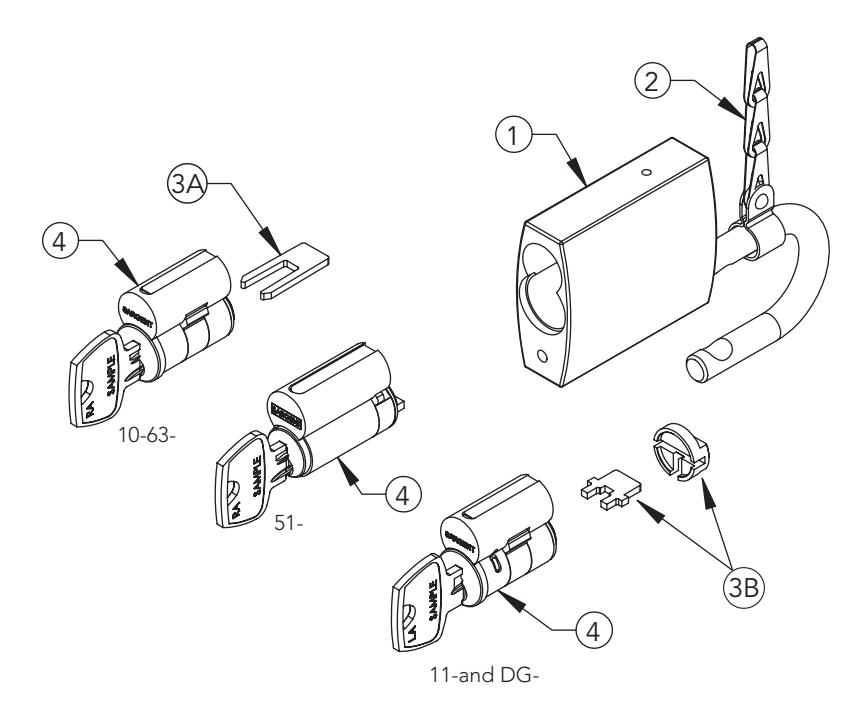

Padlock shown with 1" shackle and with optional 9 inch chain
| Item # | Part No. | Description |
|---|---|---|
| 1 | 858* | Padlock body with 1" Stainless Steel shackle |
| 1 | 858-2* | Padlock body with 2" Stainless Steel shackle |
| 1 | 858-4* | Padlock body with 4" Stainless Steel shackle |
| 1 | 858HS* | Padlock body with 1" Hardened Steel shackle |
| 1 | 858HS-2* | Padlock body with 2" Hardened Steel shackle |
| 1 | 858HS-4* | Padlock body with 4" Hardened Steel shackle |
| 2 | 17-2006 | 9 inch chain (C Suffix when ordering complete padlock) optional |
| 3A | 13-1231 | Tail piece only for 6300 and 10-6300 removable core cylinders |
| 3B | 17-2632 | Tail piece / plastic retainer pack for 11-6300 and DG1/DG2/DG3-6300 cylinders |
| 4 | 6300 | Removable Core 6 pin 6300 (63-prefix) |
| 4 | 10-6300 | Signature Removable Core 6 pin standard (10-prefix) |
| 4 | 11-6300 | XC Removable Core 6 pin standard (11-prefix) |
| 4 | 5134 | Old style removable core cylinder (51-prefix) |
Note: All cylinders provided in US 4 finish and include 2 keys as standard. Control key must be ordered separately if required.
*When ordering the padlock body, specify the cylinder as a prefix to the 858 number.
For example:
63-858 - 63-cylinder and the padlock body with 1" Stainless Steel shackle
51-858 - 51-cylinder and the padlock body with 1" Stainless Steel shackle
11-858 - 11-cylinder and the padlock body with 1" Stainless Steel shackle
DG-858 - DG-cylinder and the padlock body with 1" Stainless Steel shackle
