View PDFCommunicating Bathroom System
8500 Series Communicating Bathroom Systems

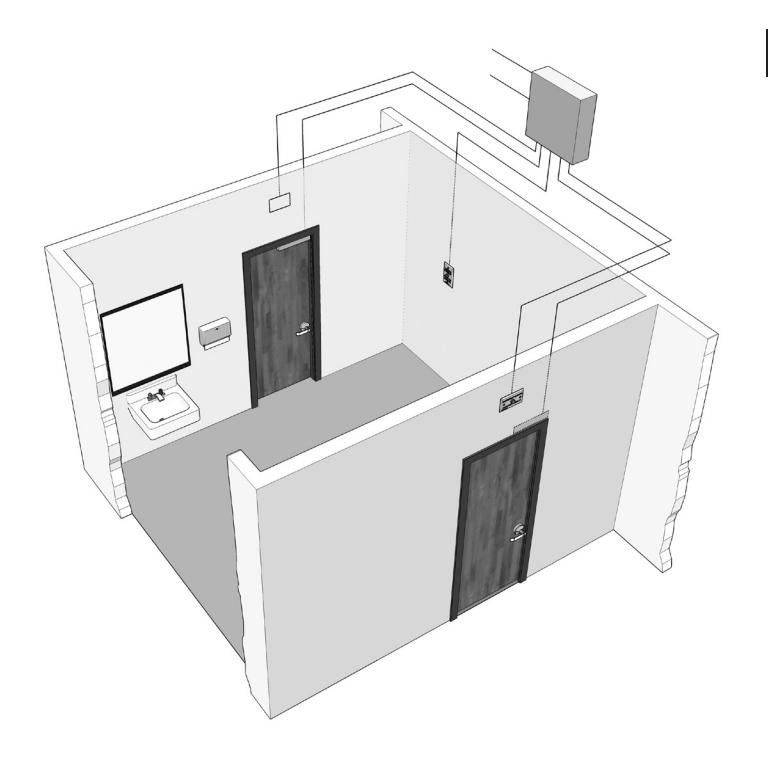

Series 8500 Bathroom Systems provide privacy for the occupant of a single bathroom shared by adjacent rooms. The occupant can lock/unlock all doors using an interior pushbutton. Exterior pushbuttons are located above or adjacent to each door, to provide release of all doors during an emergency. Facilities for fire panel emergency release are also provided. The complete system includes control switches, magnetic locks, power supply, and wiring diagram.
| MODEL | PRODUCT | WEIGHT | |
|---|---|---|---|
| 8500-2 | Two Door System - Includes: | 22 Lbs. | |
|
(2) 2511-DSM
(1) 6115A-CB-ILM-24V |
Maglock with door status switch
Red pushbutton, SPDT, maintained silk screened "LOCKED WHEN LIT, PRESS TO OPERATE" |
||
| (2) 6115A-EO-ILM-24V |
Red pushbutton, SPDT, maintained
silk screened "EMERGENCY UNLOCK, OCCUPIED WHEN LIT" |
||
|
(1) 5725
(1) 500259 (1) 900274-D |
Power supply, 24VDC, 1.5A
Interlock Logic Board System Wiring Diagram |
||
| 8500-3 | Three Door System - Includes: | 27 Lbs. | |
|
(3) 2511-DSM
(1) 6115A-CB-ILM-24V |
Maglock with door status switch
Red pushbutton, SPDT, maintained silk screened "LOCKED WHEN LIT, PRESS TO OPERATE" |
||
| (3) 6115A-EO-ILM-24V |
Red pushbutton, SPDT, maintained
silk screened "EMERGENCY UNLOCK, OCCUPIED WHEN LIT" |
||
|
(1) 5725
(1) 500259 (1) 900415-B |
Power supply, 24VDC, 1.5A
Interlock Logic Board System Wiring Diagram |
||
