830 SERIES

Heavy Duty Keyswitches

PRODUCT DESCRIPTION

The 830 Series heavy duty keyswitches are a reliable and economical way to momentarily activate or turn on and off low voltage electrical devices.

When used with automatic doors, the 830 series keyswitches can be used to turn an operator or any activation device on and off. They are also a simple way to provide secure activation of any automatic door.

The 830 series keyswitches are available with a maintained or momentary contact switch. An additional switch of either type can be added. The 830 series also features a choice of three different size stainless steel faceplates. The heavy duty switch bracket features a switch activator dead stop which prevents the key cylinder from damaging a single switch.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/ BHMA A156.10 & A156.19.

#830-N (1 11/16" x 4 1/2" Face Plate)

#830-L-RG (2 3/4" x 4 1/2" Face Plate)

TECHNICAL DATA

Operates With Standard 1" 1 1/4" Mortised Cylinder
Mortised Cylinders Available Separately
Adjustable Mounting holes Help"Plumb and Square" Keyswitch
UL Listed SPST Push Button Switch Maintained Contact:125 VAC, 6A, Red Button Momentary Contact:125 VAC, 3A, Black Button
Fits Single-gang, 2-gang Electrical Boxes or MS SEDCO#1015 and #1035 Surface Mount Boxes

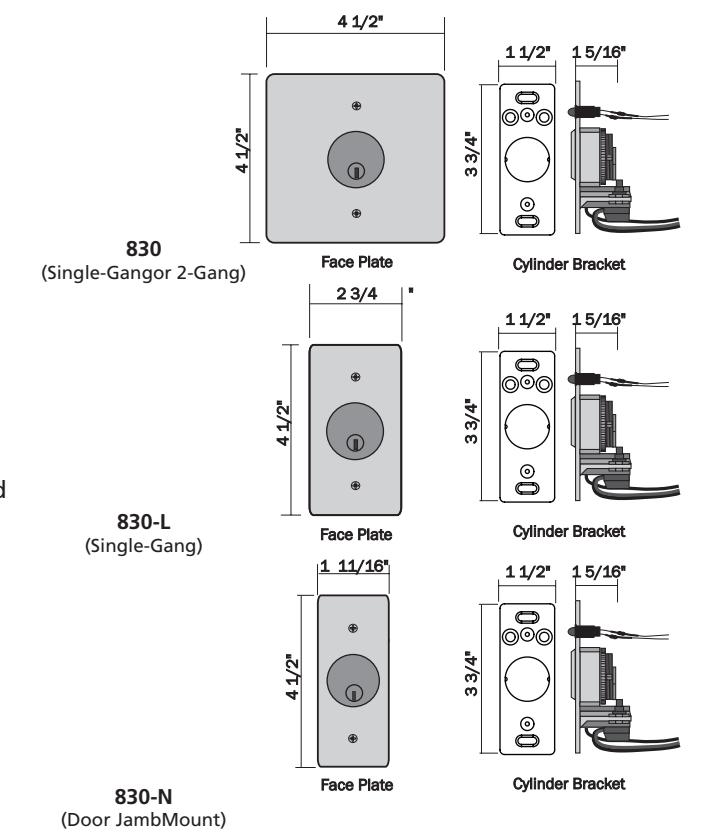

Face Plate Sizes: 4 1/2" x 4 1/2" – Fits Single gang or 2-gang Box (830) 2 3/4" x 4 1/2" – Fits Single gang box (830-L) 1 11/16" x 4 1/2" –Fits Door Jamb (830-N)
Radio Control Versions Available
Optional LED Indicators Available LED Rated for use at 12-24V AC or DC

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

PRODUCT DESCRIPTION

The 830 Series combination keyswitches and push plate switches are designed to provide reliable and secure activation of any low voltage device.

These unique devices are two switches in one. The keyswitch and the push plate switch can be set up to work independently of each other or the keyswitch can turn the push plate switch on and off, providing an economical way to secure the push plate switch after hours.

The keyswitch is available with either a momentary or maintained contact switch. The push plate switch utilizes the 59J series face plates. The 830 series combination switch can also be used with radio control transmitters.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/BHMA A156.10 & A156.19.

TECHNICAL DATA

Operates with Standary 1 1/8" 1 1/4" Mortised Cylinder
Mortised Cylinder Available Separately
Heavy Duty Keyswitch Features UL Listed SPST Push Button Switch Maintained Contact: 125 VAC, 6A, Red Button Momentary Contact: 125 VAC, 3A, Black Button
Optional LED Indicators Available, LED Rated for use at 12-24V AC or DC
Push Plate Switch Utilizes a 1 1/2" x 4 1/4" All Active Face Plate
4 1/2" x 4 1/2" Formed Stainless Steel Back Plate
Push Plate Switch—UL Listed "Cherry Switch", SPDT, Mom., 15 Amp @ 125V AC

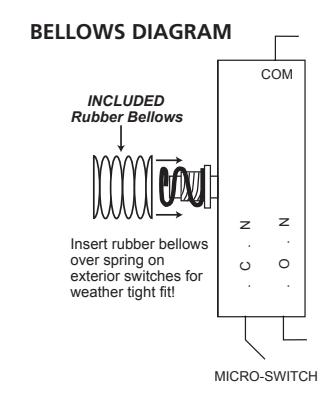

Push Plate Switch—Rubber "Bellows" Increases Weather Protection (included)
Fits 2-gang Electrical Box or MS SEDCO Surface Mount Box
Special Finishes: US3, US4,US10, US10B, US32
Radio Control Versions Available
