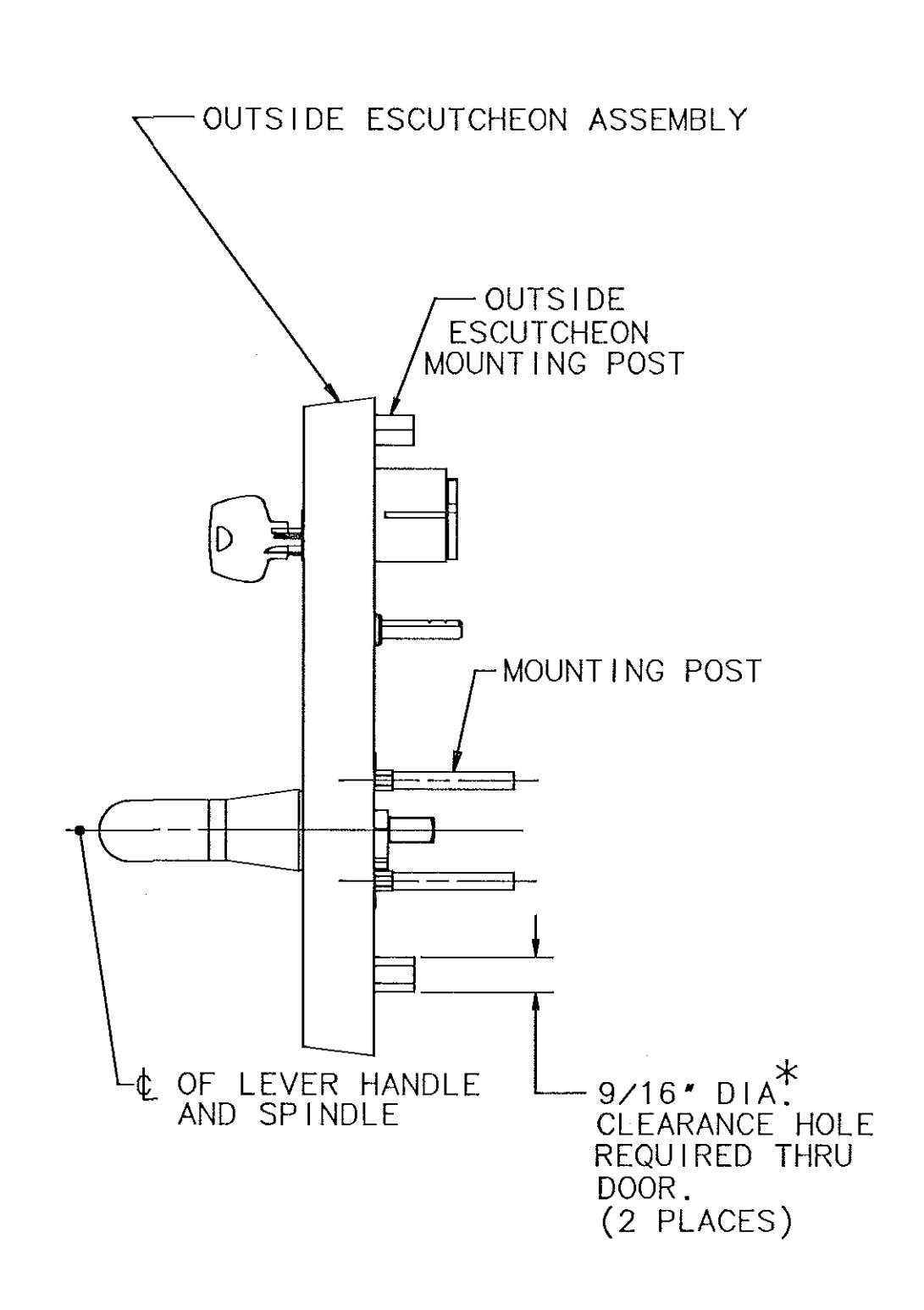

8200 Mortise Lock Free-Wheeling Trim (FE)

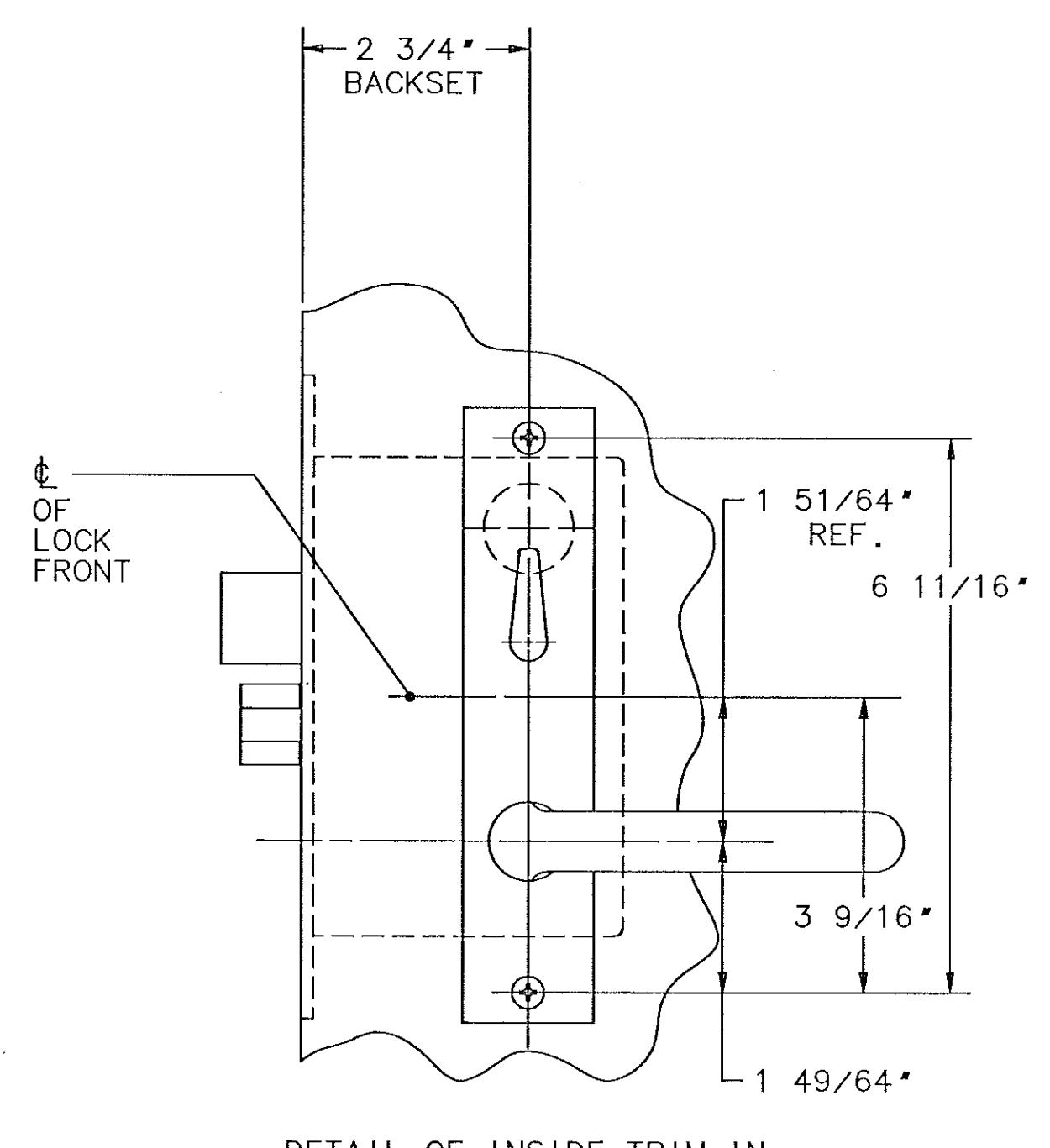

DETAIL OF INSIDE TRIM IN RELATIONSHIP TO LOCK BODY

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

TEMPLATE: 8200 MORTISE LOCK FREE-WHEELING TRIM (FE DESIGN)

RELEASE DATE /ODEC OQ TEMPLET NO. 4498 C

1-* USED IN CONJUNCTION WITH TEMPLATE NO. 4500 (LOCKBODY).
