81112 Rev0 ELM4,6,8 Electric Monitor Hinge

Open the original PDF document

ELM4,6,8 Series Hinge

TEMPLATE: 81112

REV. 0 8-29-19

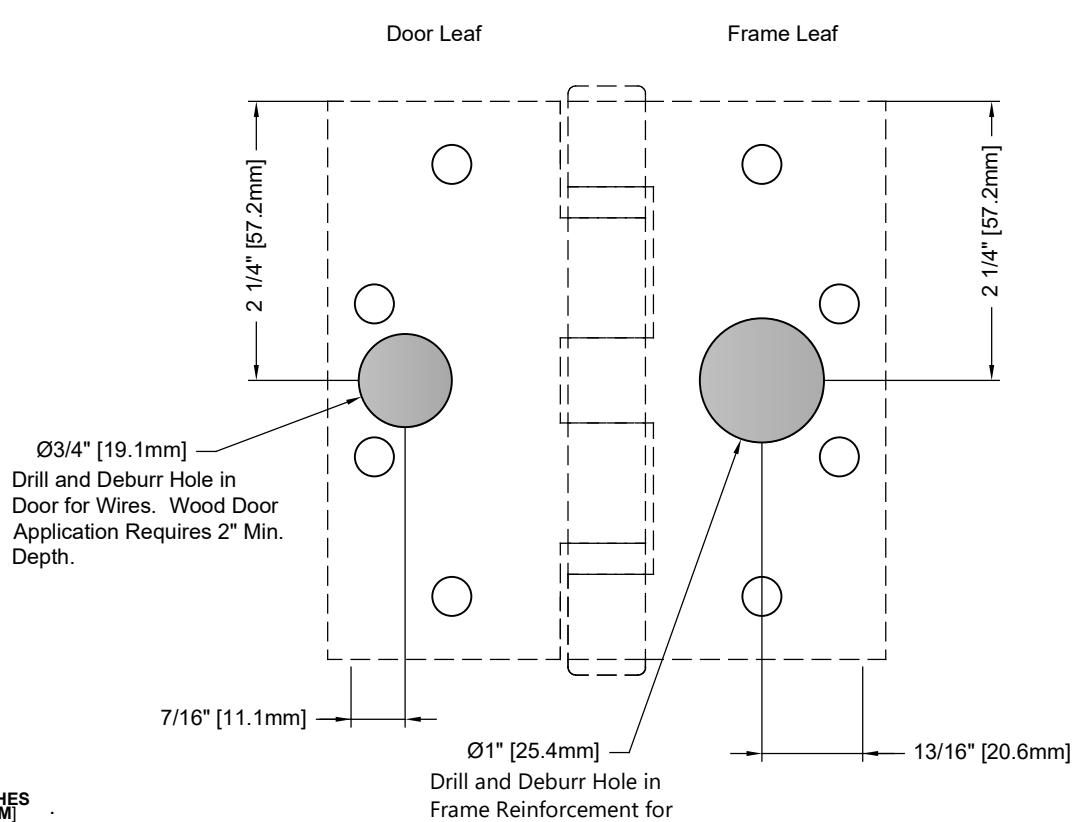

Hinge Model: ELM4,6,8 Concealed Electric Monitor Through Wire, Monitor and Concealed Air Transfer

Hinge Size: 4 1/2" [114.3] x 4 1/2" [114.3]

Hinge Type: Full Mortise 5 Knuckle Ball Bearing, Not Load Bearing

Wires

1. DIMENSIONS IN $\frac{INCHES}{[MM]}$

2. HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.

3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
