81111 Rev0 ELM3 Electric Monitor Hinge

ELM3 Series Hinge

TEMPLATE: 81111 REV. 0 8-29-19

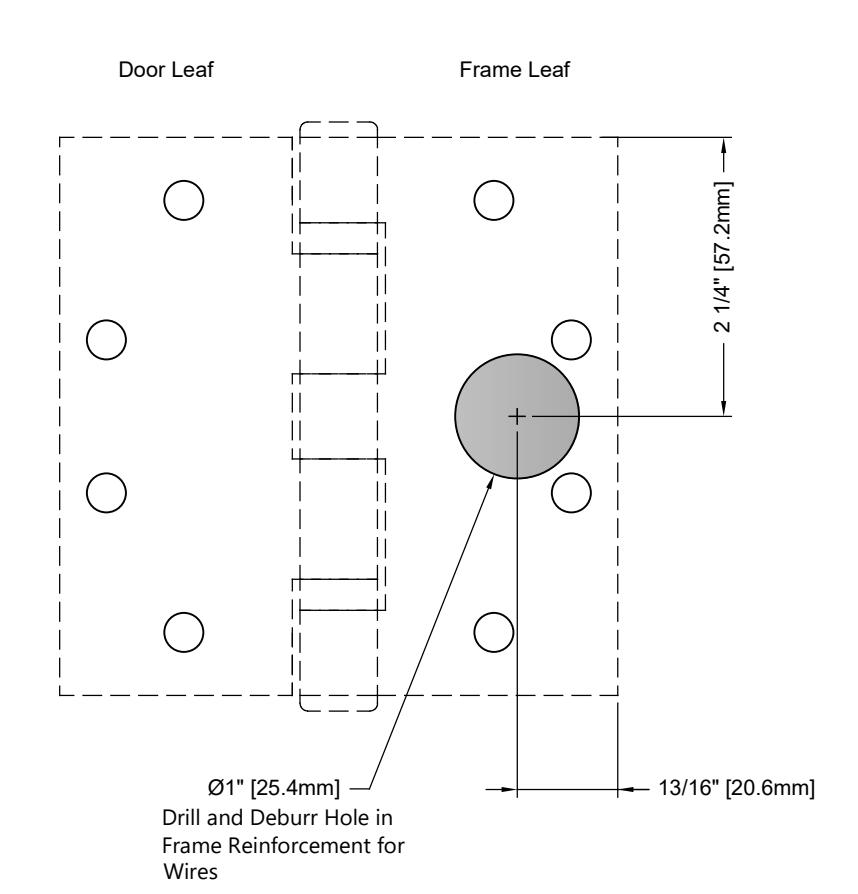

Hinge Model: ELM3 Concealed Electric Monitor Hinge Size: 4 1/2" [114.3] x 4 1/2" [114.3]

Hinge Type : Full Mortise 5 Knuckle Ball Bearing, Not Load Bearing

NOTES:

• 1. DIMENSIONS IN INCHES
• 2. HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.
• 3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
