81110 Rev0 EL2,4 5045 Series Hinge

EL2,4 Series Hinge

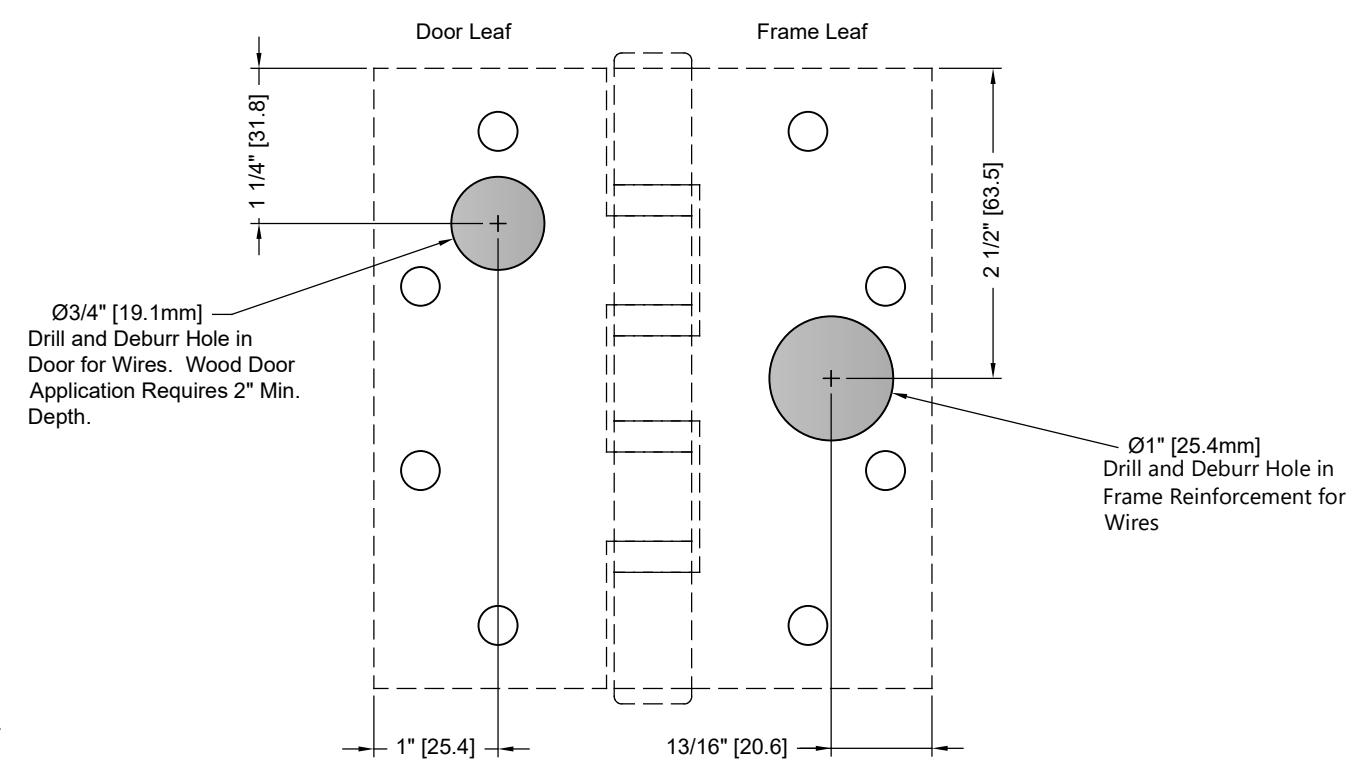

TEMPLATE: 81110

REV. 0 8-29-19

Hinge Model: EL2,4 Concealed Electric Through Wire Hinge

Hinge Size: 5" [127] x 4 1/2" [114.3]

Hinge Type: Full Mortise 5 Knuckle Ball Bearing, Not Load Bearing

NOTES:

• 1. DIMENSIONS IN INCHES [MM]
• 2. HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.
• 3. RIGHT HAND SHOWN, FOR LEFT HAND ROTATE TEMPLATE 180 DEGREES.
• 4. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
