81109 Rev0 EL2,4 4545 Series Hinge

EL2,4 Series Hinge

TEMPLATE: 81109

REV. 0 8-29-19

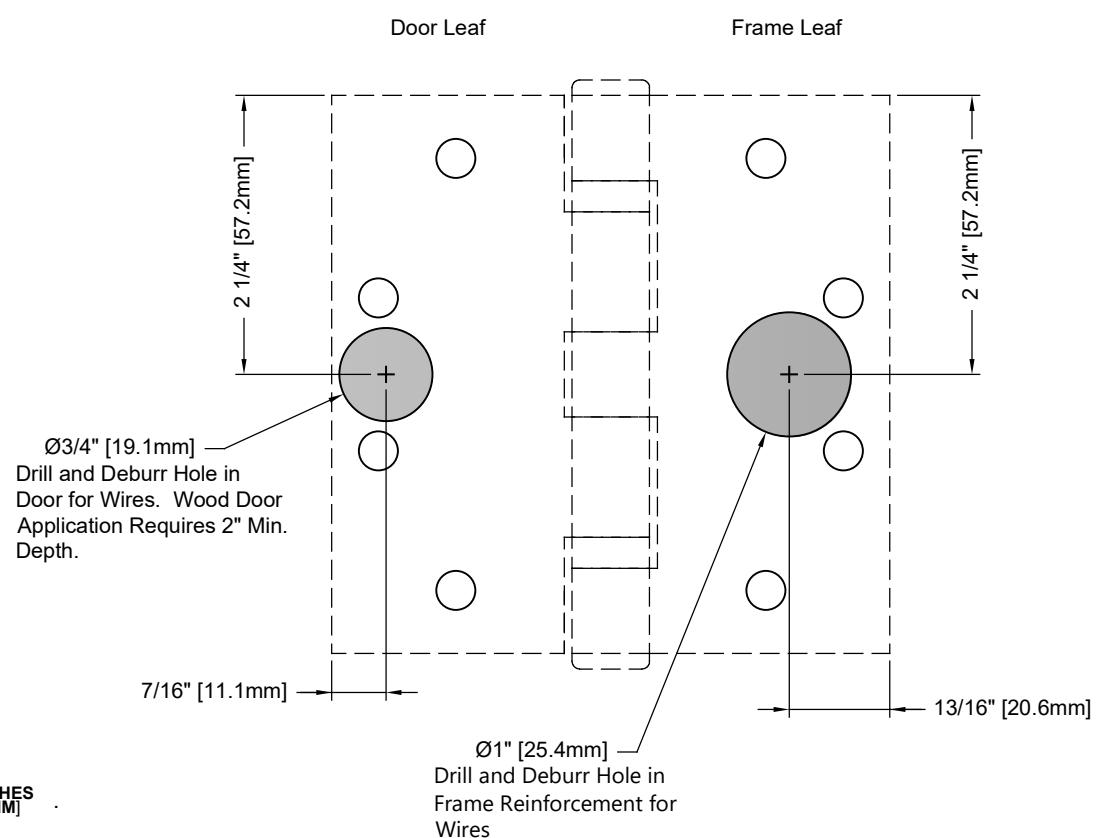

Hinge Model: EL2,4 Concealed Electric Through Wire Hinge

Hinge Size: 4 1/2" [114.3] x 4 1/2" [114.3]

Hinge Type: Full Mortise 5 Knuckle Ball Bearing, Not Load Bearing

NOTES:

1. DIMENSIONS IN INCHES [MM]

2. HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.

3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
