700 & 800 Series Key Switches

700 Single Gang (shown with L1 option)

700N Narrow 1.75" Wide (shown with LT option)

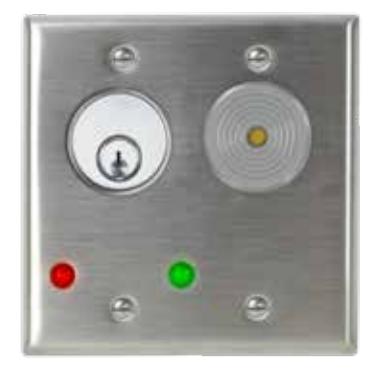

700T Double Gang (shown with L2 option and Siren)

800 Single Gang (shown with L2 option)

800N Narrow 1.75" Wide

SDC Key Switch Assemblies provide an economical method of providing authorized control for a variety of applications. A choice of several contact configurations ensure compatibility with virtually any system.

FEATURES

  • Tamper Resistant, Recessed Cylinder (All Except 700N)
  • Tamper Resistant Spanner Screws
  • Heavy Duty All Steel Assembly
  • Stainless Steel Faceplates of 20 Gauge (700 series) or 0.25" Thickness of Aluminum (800 series)
  • Large Actuator for Positive and Consistent Activation
  • 6 Amp @ 30 VDC Resistive
  • 7", 22 Gauge Wire Leads
  • Compatible with 1.0" or 1.375" Mortise Cylinder (not included)

NEW CONSTRUCTION OR RETROFIT

SDC key switch assemblies are compatible with U.S. standard, 1.0" and 1.375" mortise key cylinders and interchangeable core cylinders (not included). Compatibility with a new or existing facility mechanical key system is maintained. Standard switch assemblies are single gang box mounted. Assemblies equipped with narrow face-plates are mounted directly to the door frame.

OPERATION

APPLICATIONS

OPERATION APPLICATIONS
(4000) 701*
701N*
701T 		801AL
801ALN 		Alternate action SPDT Turning the key left or right actuates and latches the contact. Contact position is maintained until the key is inserted and turned again.
  • Circuit on - off
  • Access control bypass
  • Machine operation
702*
702N*
702T 		802AL
802ALN 		Momentary SPDT Turning the key left or right momentarily actuates the contact
  • Momentary access
  • Timer activation
  • Alarm reset
704 804AL Momentary SPDT plus 10TD Electronic Mini Timer
SPDT 2Amp @ 30VDC, adjustable 1 - 60 seconds
Turning the key left or right activates an electronically timed contact for 1 - 60 seconds 		Timed access Timed alarm shunt
705
705N
705T 		805ALN Alternate action DPDT Turning the key left or right actuates and latches the contact. Contact position is maintained until the key is inserted and turned again
  • Control two circuits simultaneously
  • Access and alarm bypass
  • Lock and magnetic door holder control
706
706N
706T 		806ALN Momentary DPDT Turning the key left or right momentarily actuates the contacts Control two circuits simultaneously
707*
707N*
707T 		807AL
807ALN 		#1 Momentary SPDT. Turning the key left momentarily actuates contact #1. #2 Momentary SPDT. Turning the key right momentarily actuates contact #2 Control two circuits independently
708*
708N*
708T 		808ALN #1 Momentary SPDT. Turning the key in one direction momentarily actuates contact #1 #2 Alternate action SPDT. Turning the key in opposite direction actuates and latches contact #2 until the key is inserted and turned again
  • Control two circuits independently
  • Momentary access and sustained bypass of a door
709 * 709N * 709T 809AL
809ALN 		#1 Alternate action SPDT. Turning the key left actuates and latches contact #1 #2 Alternate Action SPDT. Turning the key right actuates and latches contact #2
  • Control two circuits independently
  • Bypass with single station #1
  • Bypass with all stations #2
710T #1 Momentary SPDT plus 10TD Electronic Mini Timer, SPDT 2Amp, 1-60 second. Turning the key in one direction activates an electronically timed contact for 1 - 60 seconds #2 Alternate action SPDT. Turning the key in opposite direction actuates and latches contact #2
  • Control two circuits independently
  • Timed access and sustained bypass of a door
  • Timed alarm shunt (REX) and sustained alarm shunt
711
711N
711T 		811AL
811ALN 		#1 Momentary DPDT. Turning the key left momentarily actuates contact #1 #2 Momentary DPDT. Turning the key right momentarily actuates contact #2 Control two pairs of circuits independently
712
712N
712T 		812AL
812ALN 		#1 Momentary DPDT. Turning the key in one direction momentarily actuates contact #1 #2 Alternate action DPDT. Turning the key opposite direction actuates and latches contact #2 until the key is inserted and turned again.
  • Control two pairs of circuits independently
  • Activate a time delay, REX input or alarm shunt with #1
  • Access control and alarm bypass with #2
713
713N
713T 		813AL
813ALN 		#1 Alternate action DPDT. Turning the key left actuates and latches contact #1. #2 alternate action DPDT. Turning the key right actuates and latches contact #2 Control two pairs of circuits independently

700 2.875" x 4.5" x 20 Ga. Weight 0.5 lbs
700N 1.75" x 4.5" x 20 Ga. Weight 0.3 lbs
700T 4.5" x 4.5" x 20 Ga. Weight 0.6 lbs
800AL 3.25" x 5" x 0.25"D Weight 0.65 lbs
800ALN 1.75" x 5" x 0.25"D Weight 0.55 lbs

PRODUCT SKU SAMPLE: 702 U L2

HOW TO ORDER

1| SPECIFY MODEL & FUNCTION

20 GAUGE
STAINLESS STEEL FACEPLATE 		1/4" THICK
ALUMINUM PLATE
1 Gang Narrow 2 Gang 1 Gang Narrow Contacts
701⁕ 701N⁕ 701T 801AL 801ALN AA SPDT
702⁕ 702N⁕ 702T 802AL 802ALN MO SPDT
704 704N 704T 804AL 804ALN 1-60 Timer SPDT
705 705N 705T 805AL 805ALN AA DPDT
706 706N 706T 806AL 806ALN MO DPDT
707⁕ 707N⁕ 707T 807AL 807ALN 2 MO SPDT
708⁕ 708N⁕ 708T 808AL 808ALN 1 MO SPDT & 1 AA SPDT
709⁕ 709N⁕ 709T 809AL 809ALN 2 AA SPDT
710 710N 710T 810AL 8010 ALN 1-60 Timer & 1 AA SPDT
711 711N 711T 811AL 811ALN 2 MO DPDT
712 712N 712T 812AL 812ALN 1 MO DPDT & 1 AA DPDT
713 713N 713T 813AL 813ALN 2 AA DPDT

⁕ UL 294 LISTED

2| SPECIFY FINISH

700 Series Only

U 630 Dull Stainless Steel Standard

C 605 Bright Brass

D 606 Dull Brass

H 613 Oil Rubbed Bronze

P 625 Bright Chrome

Key cylinder sold separately. MO - Momentary AA - Alternate Action (On-Off)

3| SPECIFY OPTIONS

ATS Anti-Tamper Sensor, SPDT
L1 One LED; Specify Red or Green
L2 Two LED's; Red and Green
LT One Tri-Color LED; Red, Green and Amber
RMB Buzzer, 12 or 24VDC, 20mA
SN 85 db. Siren, 4V-25VDC, 15mA
10TD Mini Timer, adj. 1-60 Sec.,
12/24VDC, SPDT
CYL-6KDQ 6 pin, 1-1/8" Mortise Cylinder,
Keyed different, 626 Dull Chrome
CYL-6KAQ 6 pin, 1-1/8" Mortise Cylinder,
Keyed alike, 626 Dull Chrome
4| SPECIFY RETROFIT BACK BOX (OPTIONAL)

BB1D Single Gang 2.25" W 3.75" H x 2.75" D

TAILPIECE

use tailpiece provided with SDC Part# CYL-KD or equivalent (ILCO 863G)

Compatible with both single and dual switch assemblies

Dual Switch Assembly Single Switch Assembly

ACCESSORIES

10TD MINI TIMER

The electronic Mini Timer provides timed unlocking and is compatible with all SDC

momentary key and exit switches equipped with normally open contacts. The Mini Timer fits inside two gang key and exit switch assemblies, remote junction box and narrow frames.

10TD SPECIFICATIONS

Voltage Input 12/24VDC @ 50mA
Trigger Input N.O. Dry
Contact SPDT dry, 2 Amps @ 30VDC
Wire Leads 7", 20 Gauge
Time Adjustment 1-60 Seconds
Size 0.75"W x 1.5"H x 2.25" D

KEY CYLINDER

CYL-6KDQ 6 pin, 1-1/8" Mortise Cylinder, Keyed different, 626 Dull Chrome

CYL-6KAQ 6 pin, 1-1/8" Mortise Cylinder, Keyed alike, 626 Dull Chrome

ASSEMBLY TOOLS

For convenience, a small spanner tool is provided with the assembly for fastening of spanner security screws.

Part # SS632, a standard spanner screwdriver, may be ordered separately.
