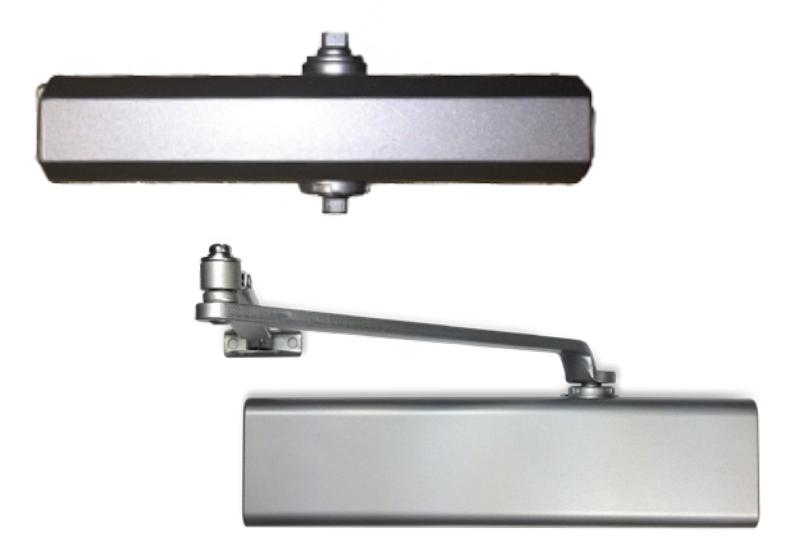

8000-TP SERIES GRADE 1 • FIRE RATED • HANDICAP SURFACE APPLIED GRADE 1 CLOSER
FEATURES
- • Model 8051-TP Standard with Sweep, Latching, and Back-Check
- • Model 8052-TP Standard with Sweep, Latching, and Delayed Action
- Adjustable Spring Power Size 1 through 6
- Cast Aluminum body; forged steel arm
- Tri-packed for regular arm, top jamb and parallel arm application
- Hold-open arms are adjustable for holding from 90° to 180°
OPTIONS AVAILABLE
- Drop Plate, Hold Open Arm
- Replacement for Norton 1600 or 1601
FINISHES
- AL Aluminum
- DU Storefront Bronze
5 YEAR WARRANTY

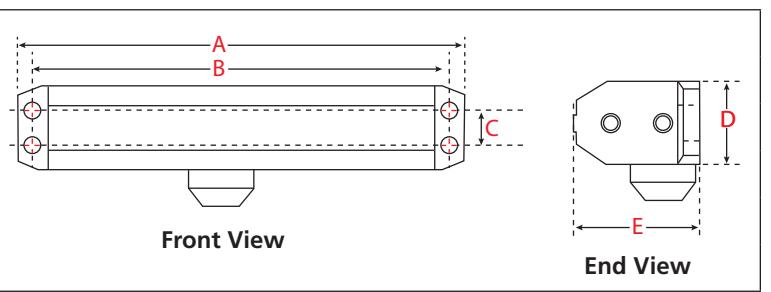

TECHNICAL DIMENSIONS
| Description | Dimensions |
|---|---|
| A. Length of Closer Body | 9-3/4" (248 mm) |
| B. Horizontal Mounting Holes | 9-1/16" (230 mm) |
| C. Vertical Mounting Holes | 3/4" (19 mm) |
| D. Closer Body Height | 1-13/16" (46 mm) |
| E. Projection from Door | 2-3/4" (70 mm) |
International Door Closers, Inc.
West: 800-544-4422 • East: 800-225-6737 COPYRIGHT 2021 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
INSTALLATION TYPES
SELECTION CHART

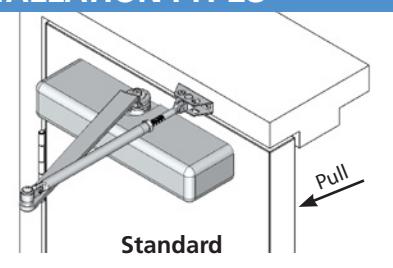

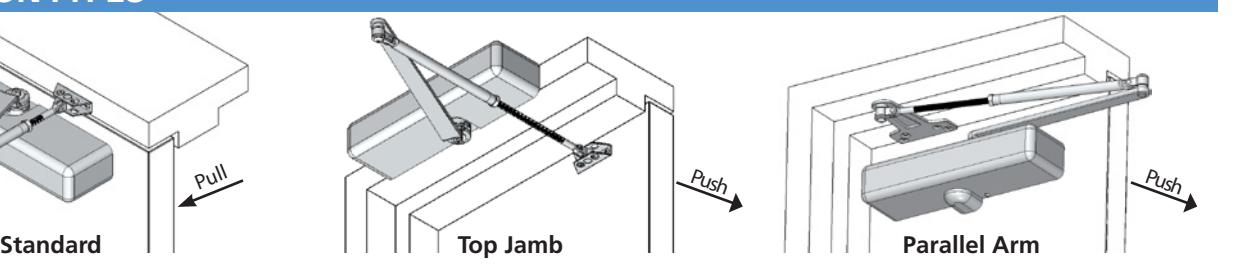

TYPICAL INSTALLATIONS (REGULAR ARMS SHOWN) Hold-Open Arms are similar
| MODEL NO. | |||
|---|---|---|---|
| Tri-packed; With Back-Check | Tri-packed; With Delayed Action | Size | |
| 8051-TP | 8052-TP | 1-6 | |
| Regular & Top Jamb | Parallel Arm | |||||||
|---|---|---|---|---|---|---|---|---|
| Maximum Size of Door | Applicable Door | |||||||
| Closer Size | Interior |
Exterior
Inswing |
Exterior
Outswing |
Closer Size | Interior | Exterior | Weight Lbs (Kg) | |
| 1 | 28" (0.71m) | 1 | 33-66 (15-30) | |||||
| 2 | 36" (0.91m) | 2 | 30" (0.76m) | 66-99 (30-45) | ||||
| 3 | 42" (1.07m) | 30" (0.76m) | 36" (0.91m) | 3 | 36" (0.91m) | 30" (0.76m) | 99-143 (45-65) | |
| 4 | 48" (1.22m) | 36" (0.91m) | 42" (1.07m) | 4 | 42" (1.07m) | 36" (0.91m) | 143-187 (65-85) | |
| 5 | 54" (1.37m) | 42" (1.07m) | 48" (1.22m) | 5 | 48" (1.22m) | 42" (1.07m) | 178-264 (85-120) | |
| 6 | 60" (1.52m) | 48" (1.22m) | 54" (1.37m) | 6 | 54" (1.37m) | 48" (1.22m) | 264-330 (120-150) | |
PARTS AND ACCESSORIES - SERIES 8001-TP
| Parts | Description | Part # | |||
|---|---|---|---|---|---|
| Main Arm | 520 |
NOTE:
Doors of unusual height or weight, or doors subject to severe wind or draft |
|||
| Regular Forearm | 521 |
conditions, or abusive usage, require
one or two more full turns of hex spring adjustment nut than shown on the Installation instructions. |
|||
| Hold-Open Forearm | 522 | ||||
| Parallel Bracket for Regular Arm | 525 |
SPECIFY:
Closer Model or Part Number |
|||
| Flat Drop Bracket for Closers - With Dress Cover | 547 |
SPECIFY FINISH:
Al-Aluminum |
|||
| FTop Jamb Bracket | TJB-54 | DU -Storefront Bronze | |||
| Dress Cover | DC-8000 | ||||
| Thru Bolt & Grommet Nut (Set of 4 each) | TBGN-50 | ||||
| Sex Nuts & Bolts | 18-SN | ||||
