8000 Series Consoles Part I

Standard Slope Front Consoles

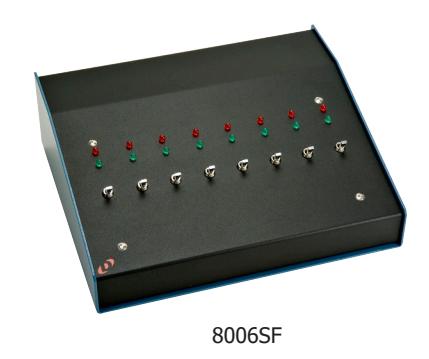

8000SF Series Standard Slope Front Consoles

Series 8000SF Consoles are designed to control and monitor most any type electric lock and may be ordered with up to 12 stations. An external source of power similar to DynaLock power supplies shown on pages 31 thru 33 is required. Slope front consoles larger than 12 stations or that may have an internal power source are considered Custom. Refer to the Custom Console section pages 52 and 53.

8000SF Consoles are furnished in a black front metal panel with blue metal sides. Available in 4 different size enclosures from 1 to 12 stations. Included features on each station:

One red LED indicator.

One green LED indicator.

One SPDT toggle switch (Specify momentary or maintained contact).

All consoles require external power. Specify operating voltage 12VDC or 24VDC when ordering.

MODEL	PRODUCT
8001SF	1 Station Slope Front Console
8002SF	2 Station Slope Front Console
8003SF	3 Station Slope Front Console
8004SF	4 Station Slope Front Console
8005SF	5 Station Slope Front Console
8006SF	6 Station Slope Front Console
8007SF	7 Station Slope Front Console
8008SF	8 Station Slope Front Console
8009SF	9 Station Slope Front Console
8010SF	10 Station Slope Front Console
8011SF	11 Station Slope Front Console
8012SF	12 Station Slope Front Console

ACCESSORIES

LK

Label Kit - Includes engraved nameplates to number stations 1 thru 12 and 5 nameplates to label functions "SECURE", "UNSECURE", "CLOSED", "OPEN" and "RELEASE" as required.

MODEL "SF"	A	B	C
8001-8003	6.5"	8.3"	3.0"
8004-8005	10.0"	8.3"	3.0"
8006-8007 8008	14.0"	8.3"	3.0"
8009-8010 8011-8012	17.0"	8.3"	3.0"
