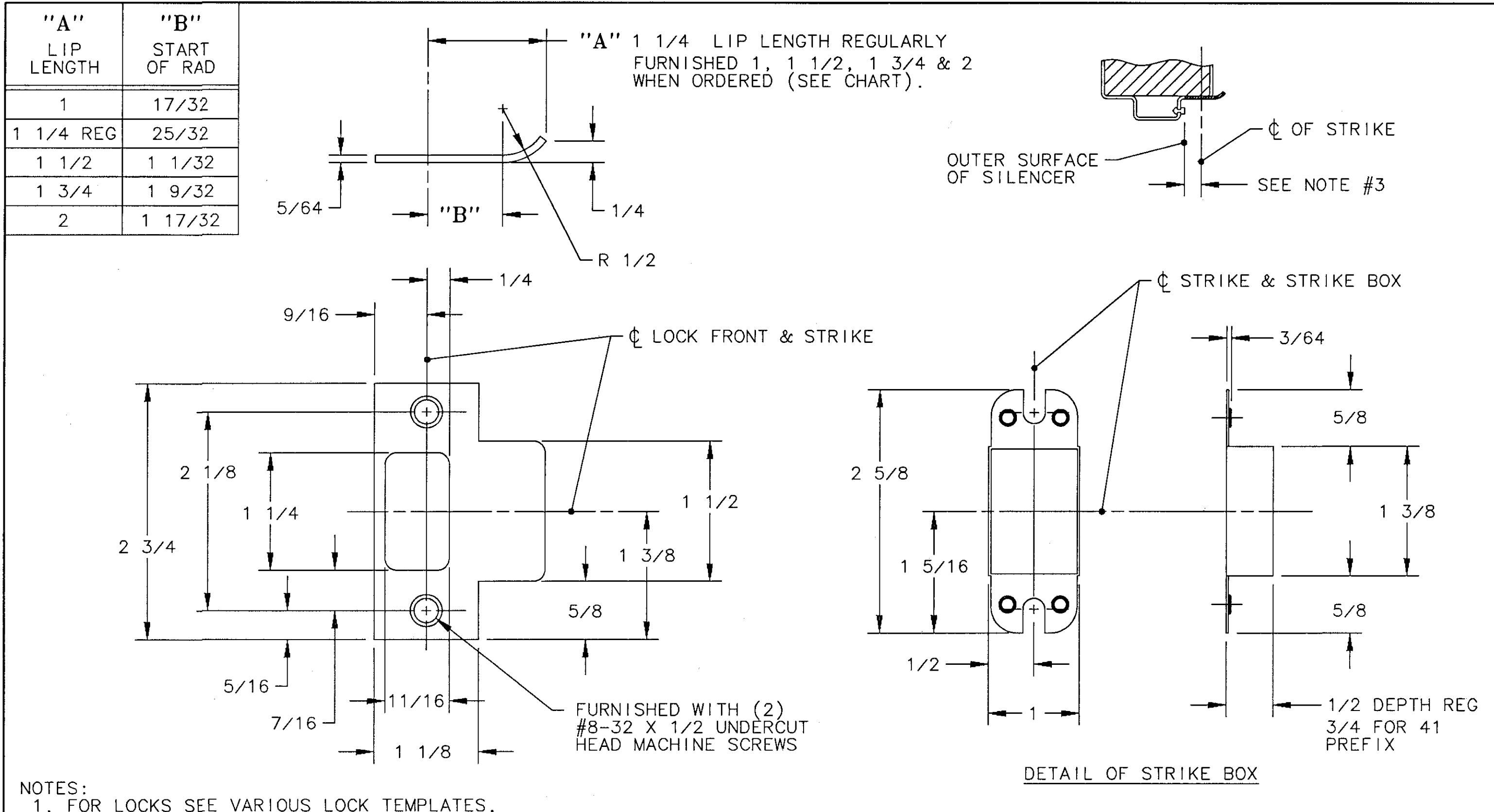

800 Strike for ANSI 115point3 – Standard Tempalte

Open the original PDF document

1. FOR LOCKS SEE VARIOUS LOCK TEMPLATES.
2. DIMENSIONS SHOWN ARE MAXIMUM PART DIMENSIONS.
3. WHEN DOOR SILENCERS ARE USED ON DOOR FRAMES, LOCATE CENTERLINE OF STRIKE FROM SURFACE OF DOOR SILENCER AS SHOWN.
FRAME MANUFACTURER TO PROVIDE SUFFICIENT REINFORCEMENT.
5. STRIKE OUTLINE FOR FRAME FITS CURRENT ANSI A115.2 STANDARD. 3/32 MORTISE DEPTH PERMISSIBLE FOR STRIKE OR STRIKE AND STRIKE BOX.

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

BORED LOCK STRIKE 800

RELEASE DATE MARCH 01

TEMPLATE NO. 4131N
