Installation Instructions

LL Handle Trim

For use with 8810/8888

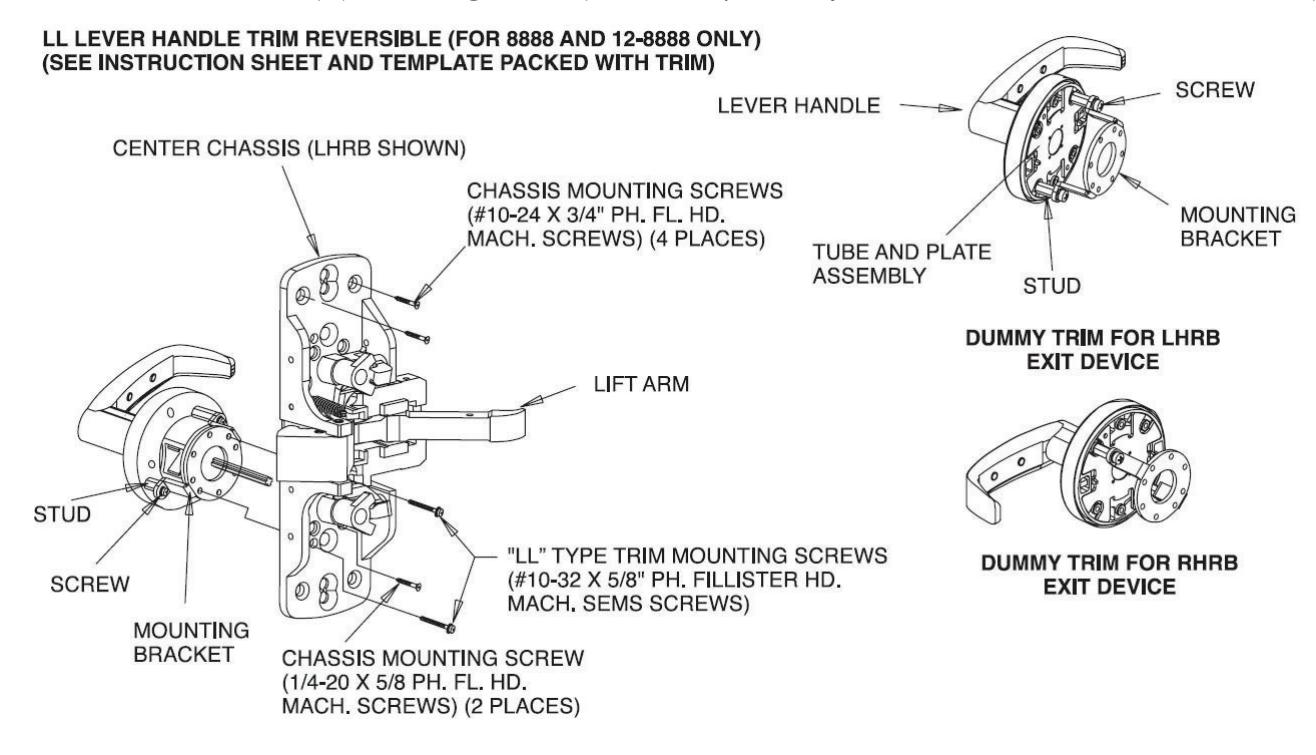

To Install the Trim:

• 1. Attach chassis to door with (4) chassis mounting screws (#10-24 x ¾" Phillips Flat Head Machine Screws).
• 2. Attach LL trim with (2) mounting screws (#10-32 x 5/8" Phillips Fillister Head Machine SEMS Screws).

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.

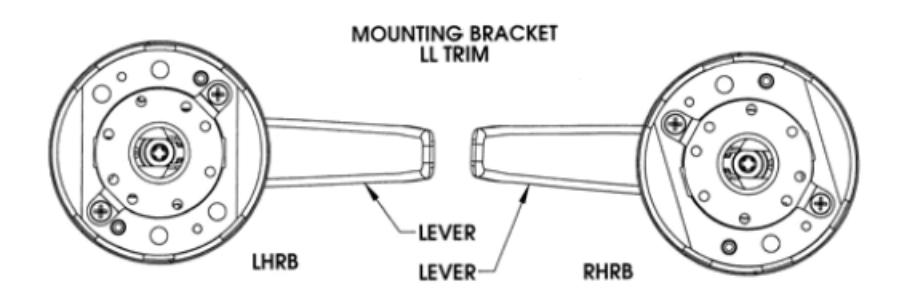

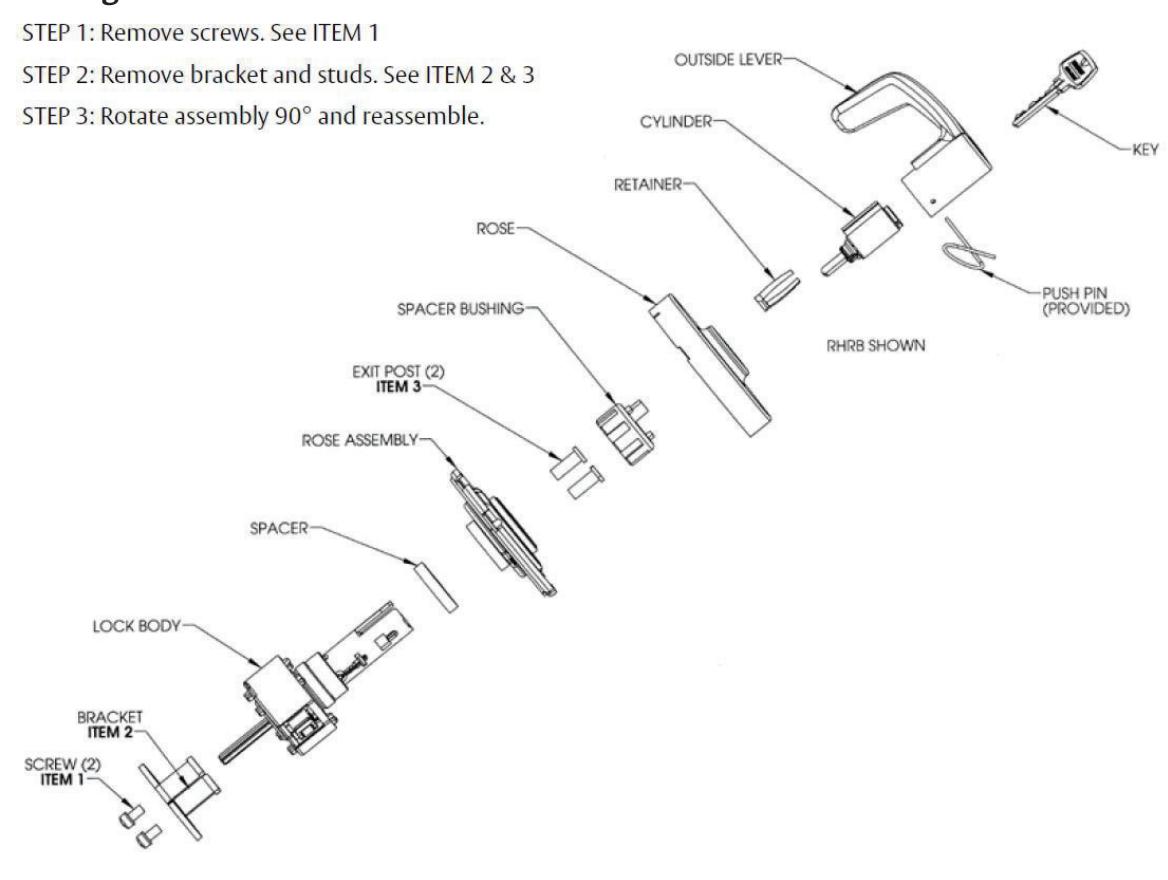

To Change Hand:

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
