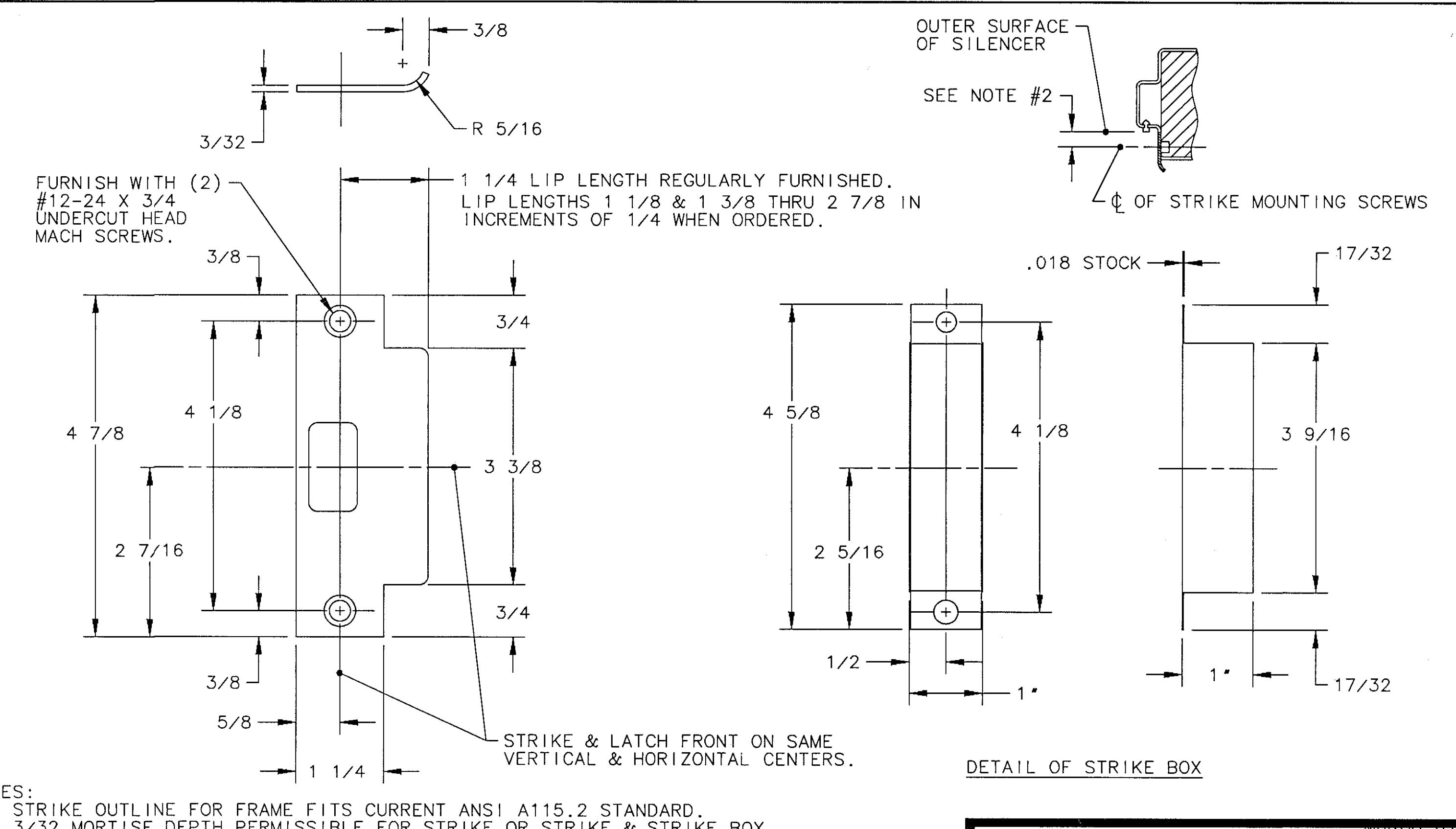

8 Line 808 Strike for ANSI A115point2 – 28 Prefix Template

NOTES:

1. STRIKE OUTLINE FOR FRAME FITS CURRENT ANSI A115.2 STANDARD. 3/32 MORTISE DEPTH PERMISSIBLE FOR STRIKE OR STRIKE & STRIKE BOX.

2. WHEN DOOR SILENCERS ARE USED ON DOOR FRAME LOCATE CENTERLINE

OF STRIKE FROM SURFACE OF DOOR SILENCER AS SHOWN. 3. DIMENSIONS SHOWN ARE MAXIMUM PART DIMENSIONS.

4. STRIKE BOX FURNISHED ONLY WHEN SO ORDERED.

5. FRAME MANUFACTURER TO PROVIDE SUFFICIENT REINFORCEMENT.

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

808 CURVED LIP STRIKE

RELEASE DATE MARCH 01

TEMPLATE NO. 4049W
