7900 MORTISE LOCK WT ESCUTCHEONS

Open the original PDF document

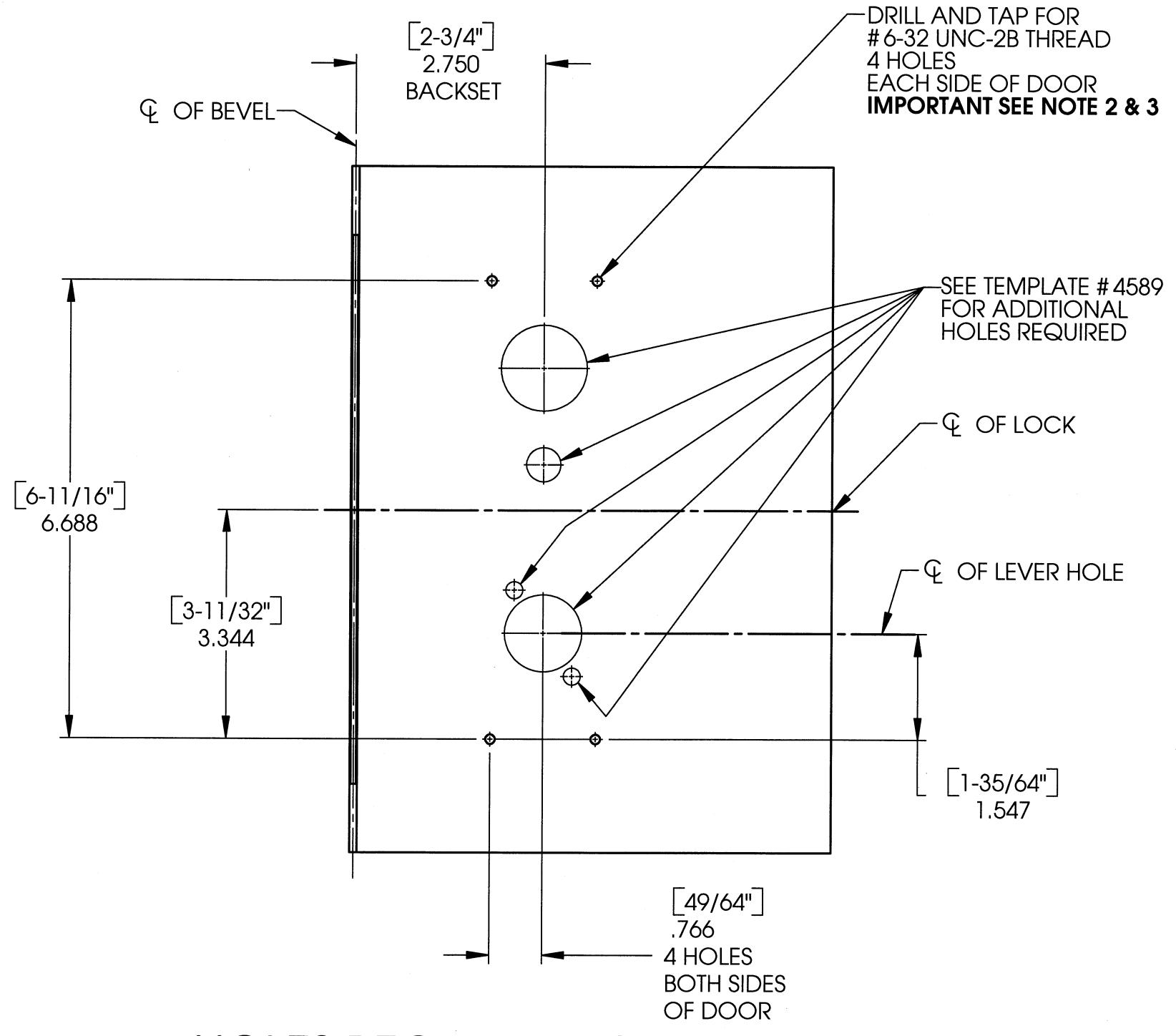

HOLES REQUIRED FOR WT ESCUTCHEON

TO ASSURE CORRECT ALIGNMENT OF TRIM, SCREW HOLES MUST BE LOCATED IN RELATION TO LEVER HOLE AFTER LOCK BODY IS INSTALLED IN DOOR. (REFERENCE TEMPLATE # 4589) SUITABLE REINFORCEMENT REQUIRED FOR MOUNTING SCREWS. FOR TRIM ONE SIDE FUNCTIONS PUT HOLES ON TRIM SIDE ONLY.

SARGENT* Manufacturing Company 100 Sargent Drive New Haven, CT 06511

RELEASE DATE 11- JUN-07

TEMPLATE NO. 4609 A
