790-905 79in Template 790905_79

Open the original PDF document

View PDF

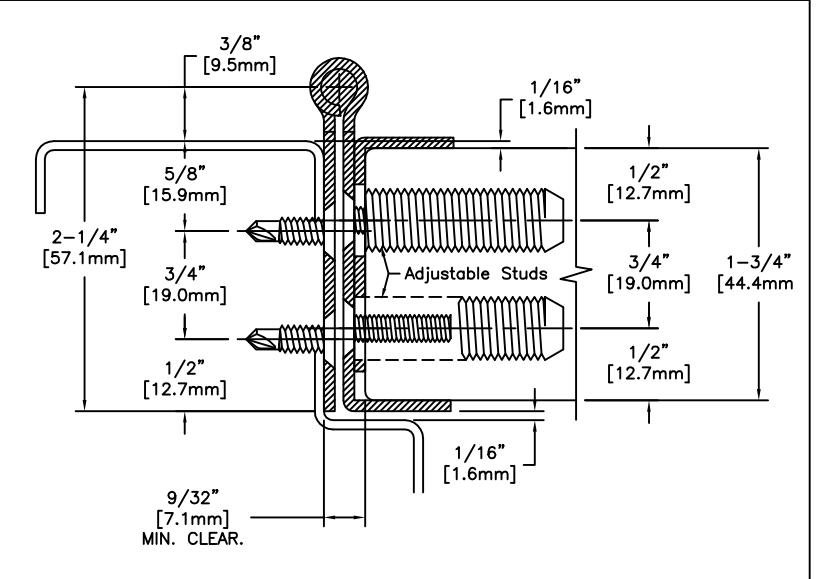

APPLICATION

SCALE: 3/4

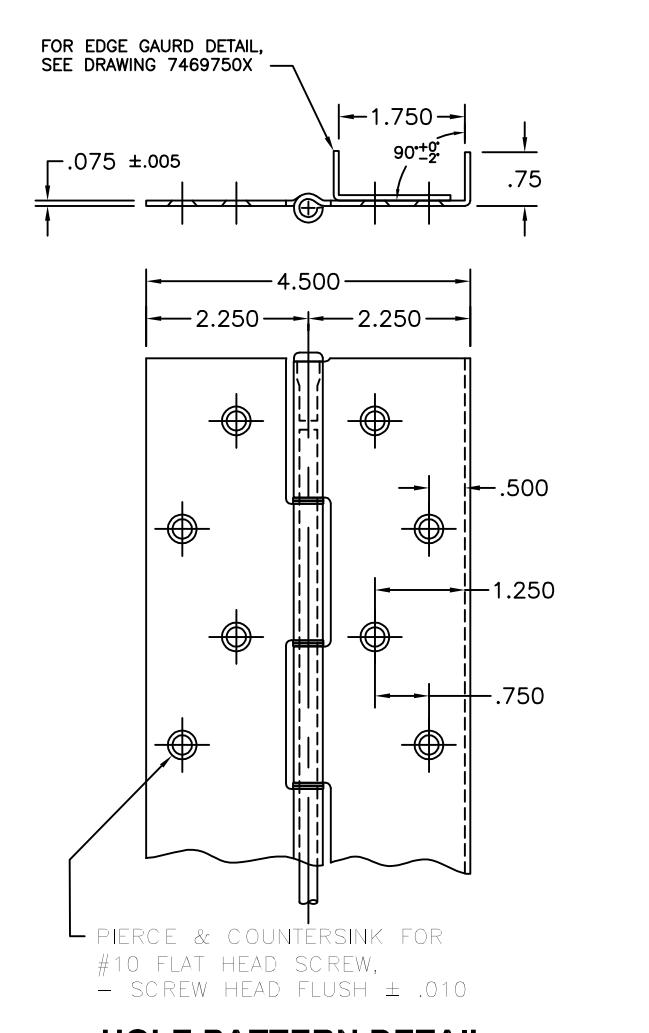

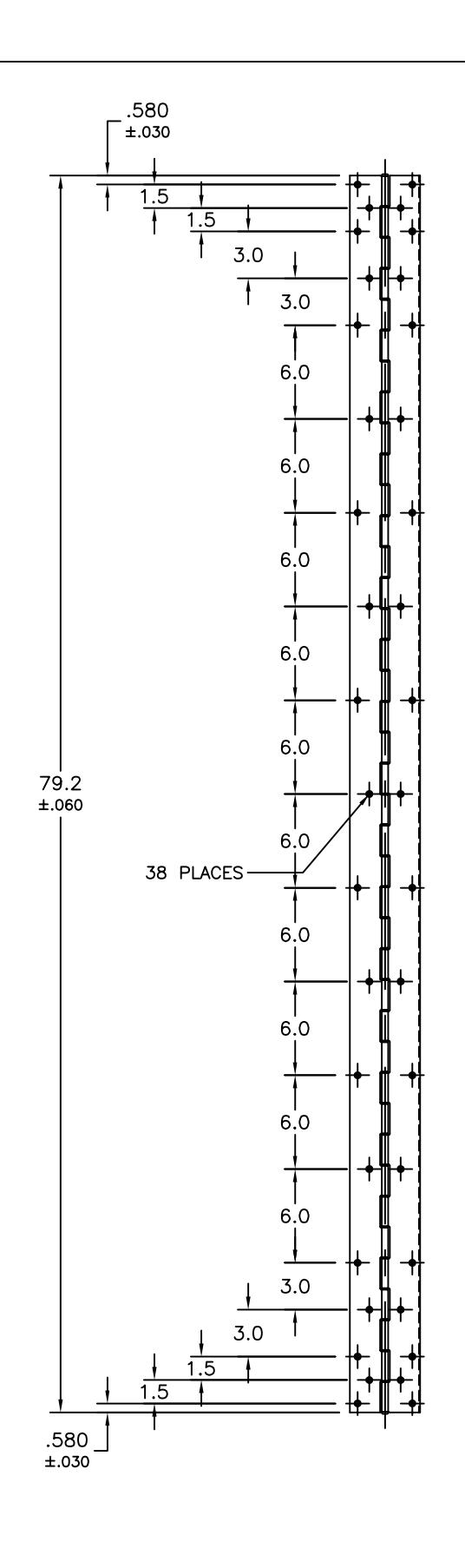

HOLE PATTERN DETAIL

SCALE: 3/8

NOTES:

  • MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
  • ALL DIMENSIONS ARE IN INCHES
  • DRAWINGS ARE NOT TO SCALE
  • KNUCKLE PATTERN MY VARY
