View PDFInstallation Instructions
7800/8200 Series Mortise Lock

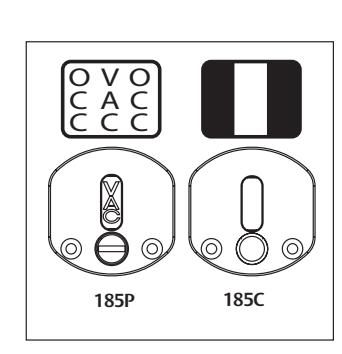

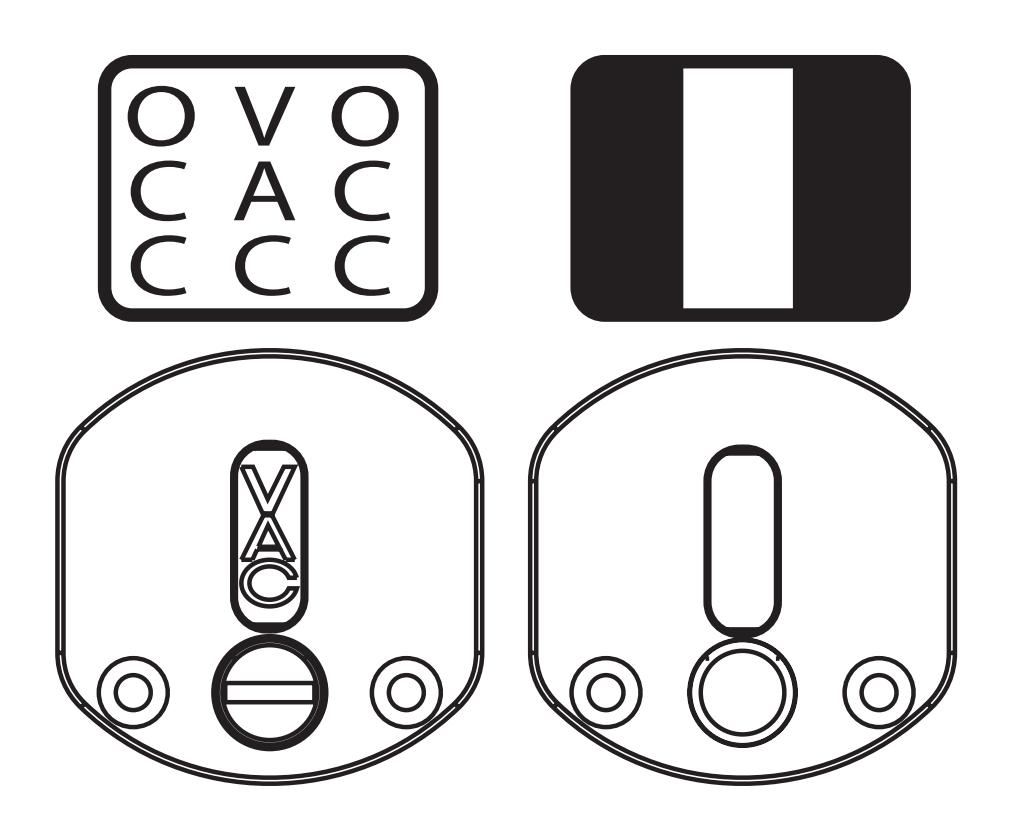

Visual Occupancy Indicators for Sectional Trim (185C, 185P, and 49- Option)
⚠ WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
7800/8200 Series Mortise Lock
Visual Occupancy Indicators for Sectional Trim
(185C, 185P, and 49- Option)
Installation Instructions

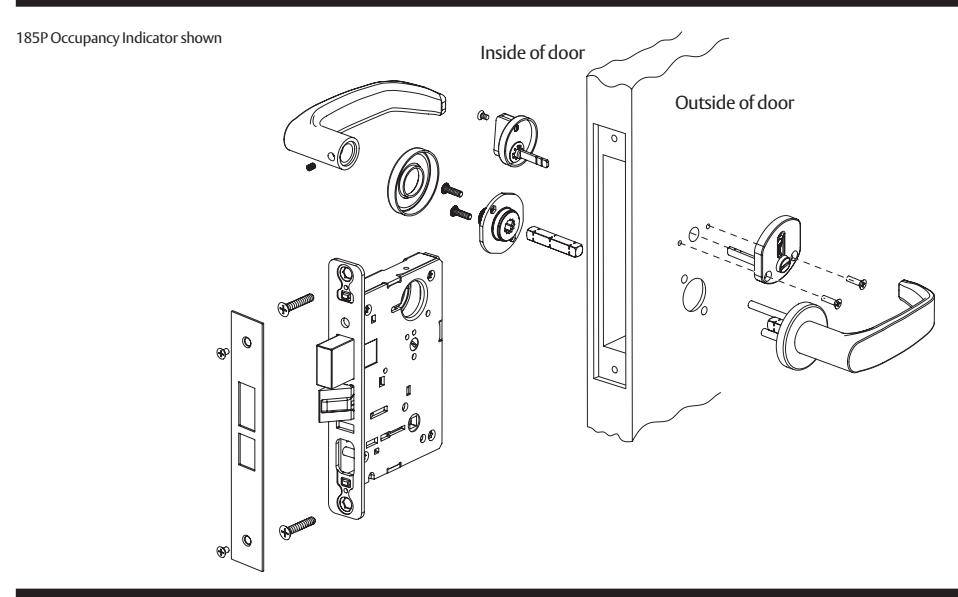

1 Lock and Indicator

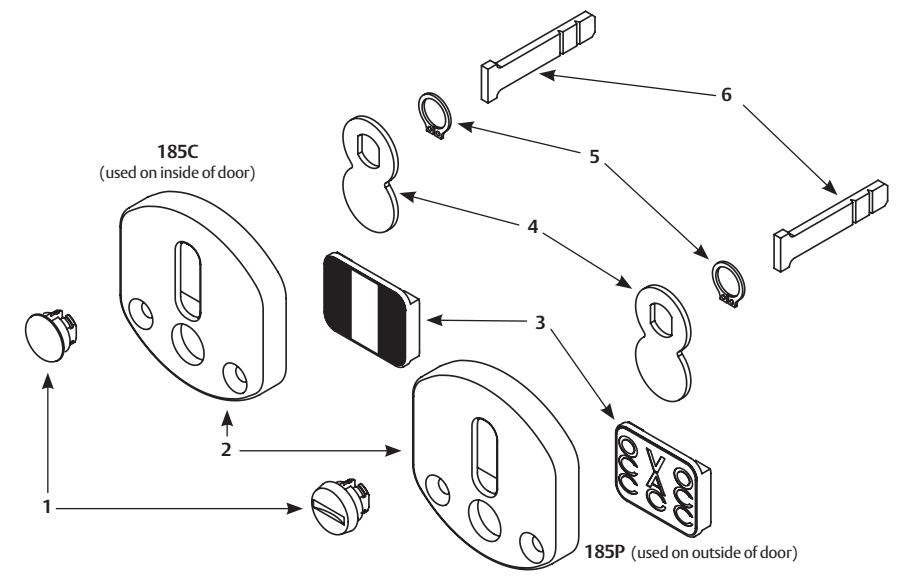

2 Indicator Components
| Item | Description | Quantity | Part Number |
|---|---|---|---|
| 1 | Indicator Button | 1 | 82-0592 |
| Indicator Button–Emergency Release | 1 | 82-0591 | |
| 2 | Housing Plate | 1 | 82-0589 |
| 3 | Red/White Slide | 1 | 82-4050 |
| VAC/OCC Slide | 1 | 82-4051 | |
| 4 | Rotation Plate | 1 | 82-0590 |
| 5 | Snap Ring | 1 | 01-4552 |
| 6 | Spindle | 1 | 77-1195 |
| 7 | #6 x 5/8" Wood Screw (not shown) | 2 | 01-2036 |
| 8 | #6-32 x 1/2" MS (not shown) | 2 | 01-1020 |
7800/8200 Series Mortise Lock
Visual Occupancy Indicators for Sectional Trim
(185C, 185P, and 49- Option)
Installation Instructions
SARGENT ASSA ABLOY

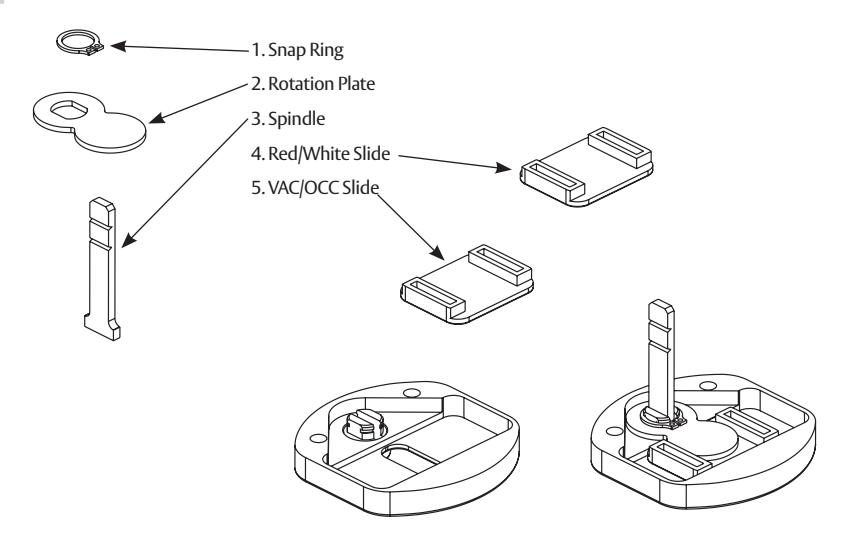

3 Changing the Indicator Slides
a Remove part 1.
Gently remove the snap ring (1) from above the rotation plate (2) using a small screwdriver to pry the ring upward.
b Remove parts 2 and 3 and part 4 or 5 (as applicable).
Lift off the rotation plate (2) and spindle (3). Remove the applicable indicator slide (4 or 5).
c Place the new part 4 or 5.
Place the new slide (4 or 5) into the indicator base.
d Reassemble parts 2 and 3.
Place the spindle (3) into the indicator base. Slide the rotation plate (2) over the spindle (3).
Note
e
BE SURE THAT THE TEXT ON THE VAC/OCC SLIDE IS IN THE PROPER ORIENTATION BEFORE PROCEEDING WITH STEP E.
Place the snap ring (1) into the button groove on the rotation plate (2).
7800/8200 Series Mortise Lock
Visual Occupancy Indicators for Sectional Trim
(185C, 185P, and 49- Option)
Installation Instructions

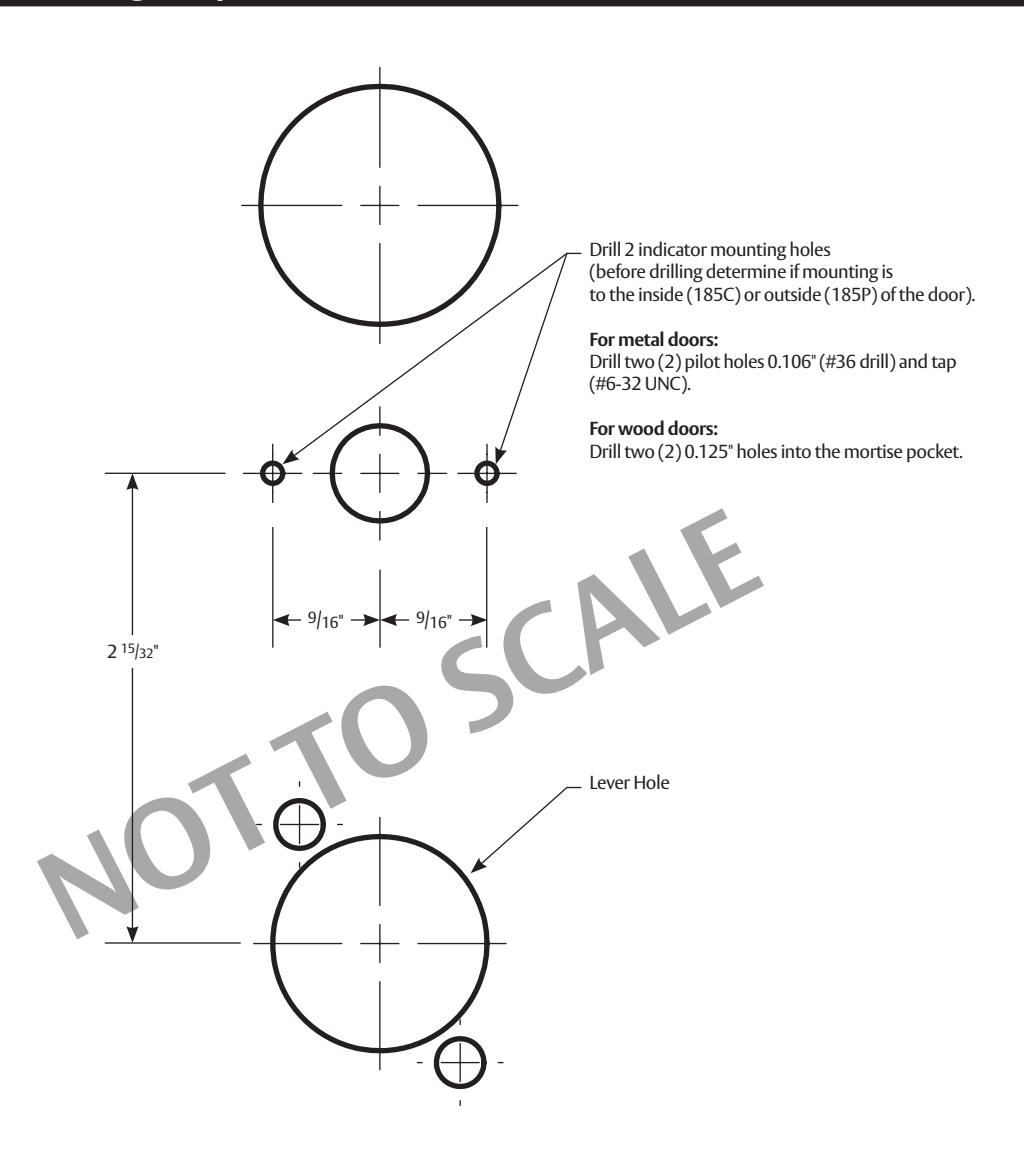

Door Drilling Template
